Hino Bowie Truck Excavator Diagnostic Scanner HINO Diagnostic EXplorer With D630 Laptop

Hino Bowie Truck Excavator Diagnostic Scanner HINO Diagnostic EXplorer With D630 Laptop

Hino Truck Diagnostic Scanner Full Set

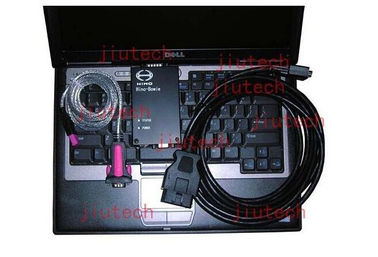

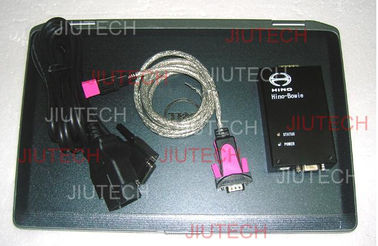

Full Set D630 laptop with HINO Diagnostic EXplorer/Hino-Bowie Truck Excavator Diagnostic Scanner

Full Set D630 laptop with HINO Diagnostic EXplorer/Hino-Bowie Truck Excavator Diagnostic Scanner

All software install well in this laptop

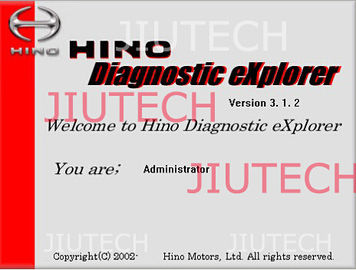

The HINO Diagnostic eXplorer (hereafter referred to as HINO DX) is a tool equipped with all the functions needed to diagnose trouble, check functions, and configure the settings of the electronic systems built into HINO engines.

software version:

1) V3.12
2) V3.0
3) V2.0.3
Please tell us which software version you net. Price is different depends on which one you prefer.

Kobelco Hino Bowie Explorer Diagnostic
HINO Diagnostic EXplorer/Hino-Bowie Diagnostic Scanner
Kobelco excavator test tools Hino-Bowie
Hino Diagnostic eXplorer

We have double tested before delivery:

Full Set D630 laptop with HINO Diagnostic EXplorer, Hino-Bowie Truck Excavator Scanner

The HINO Diagnostic eXplorer (hereafter referred to as HINO DX) is a tool equipped with all the functions needed to diagnose trouble, check functions, and configure the settings of the electronic systems built into HINO engines.

Main Functions
Acquires and deletes trouble data.
Links diagnostic trouble codes read from the ECU to corresponding diagnostic work flow sequences and directly displays the required data.
Obtains sensor conditions from the vehicle when trouble occurs (Freeze Frame function).
Monitors the sensors and actuators equipped on the engine (Data Monitor function) and tests the operation of solenoid valves by forcefully operating them (Active Test function).
Simulates diagnostic work with only a PC(Simulation function).
Automatically saves fetched ECU data and analyzes trouble based on the saved data even when the cause of trouble cannot be grasped.

Aisin Transmission data viewing and diagnostics-2001-2007 Model Years
Display and Clear Diagnostic Codes
Display live data for diagnosis

MDTICs Engine data viewing and diagnostics-2001-2004 Model Years
Display and Clear Diagnostic Codes
Display live data for diagnosis

J05 & J08 Engine data viewing and diagnostics 2005-2008 Model Years
Display and Clear Diagnostic Codes
Display live data for diagnosis-Specific data can be selected

Full Customization Capability

Turn on Engine Protection Shutdown System
Set Maximum Vehicle Speed
Set Maximum Cruise Control Speed
Set PTO idle speeds fixed and variable
Change Injector Calibration QR Code when replacing injectors
Supply Pump relearning when replacing SCV or supply pump
Complete DPF testing and regeneration capabillity
Built in Help Menus for troubleshooting specific diagnostics

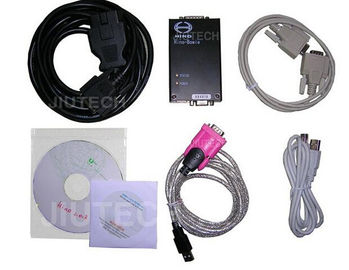

The package includes:

1.Diagnositc interface
2.OBDII Cable
3.USB Cable
4.Diagnostic Software

If you need to install this software into cf30 laptop, please contact with us.
