Jaltest Link Heavy Duty Truck Diagnostic Scanner with CF53 Laptop for Multi Brand Diagnostics and Advanced Calibration
Product Details
| Software Version | 2012 | Model Name | For Jatest Diagnostic Tool |
|---|---|---|---|
| Origin | Mainland China | Quality | Superior |
| Product Name | For Jaltest Link Universal Truck Excavator Diagnostic Kit | Item Type | Engine Analyzer |
| Heavy Duty Truck Diagnostic Tool | For Jaltest Link Coder Reader | For | Universal Truck Excavator Diagnostic |
| Keywords | Diesel Diagnosis Interface Heavy Duty Truck Diagnostic Tool | ||
| Highlight | Jaltest Link Diagnostic Scanner,Truck Diagnostic Scanner Jaltest,CF53 Truck Diagnostic Scanner |
||
Product Description

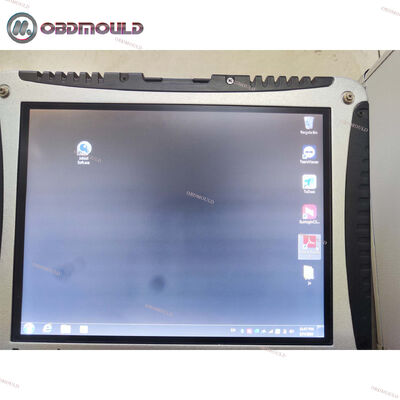

Jaltest Link Heavy Duty Truck Diagnostic Tool with CF53 Laptop
Multi-Brand Diesel Diagnostics Interface
Key Benefits of Jaltest Link Diagnostic Tool:
- Comprehensive diagnostic functions including calibration, reset, and parameterization features
- Common rail pressure testing and maintenance parameter analysis
- Advanced detection capabilities: fault code reading, sensor data measurement, ECU calibration, and component testing
- Multi-language support: English and Spanish interfaces
Jaltest Link Diagnostic Features
- Complete JALsoftware system with electronic schematics, technical data, maintenance information, and technical releases
- Extensive maintenance resources including circuit diagrams, electrical schematics, and diagnostic assistance
- Advanced diagnostic capabilities for trucks, buses, construction vehicles, light commercial vehicles, trailers, special vehicles, and agricultural machinery
- Comprehensive engine testing for diesel engines, diesel pumps, natural gas engines, single pumps, high pressure common rail pumps, and injectors

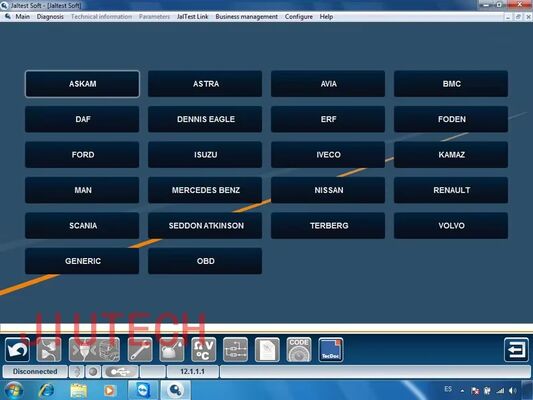

Supported Vehicle Brands
Mercedes-Benz
DAF
VOCOM GROUP
IVECO
SCANIA
Renault
HINO AMERICAN
HYUNDAI Light Commercial
ISUZU
MITSUBISHI Light Commercial
TOYOTA Light Commercial
NISSAN Light Commercial
CITROEN Light Commercial
FIAT Light Commercial
FORD Light Commercial
FREIGHTLINER
GMC/CHEVROLET Heavy Duty
INTERNATIONAL Heavy Duty
KENWORTH
MACK
PETERBILT
STERLING
WESTERN STAR
DODGE
System Coverage: Vehicle ABS, EBS, transmission, suspension, and electronic modules. (Some vehicles may require optional cables or custom cable fabrication)
DB37 Pin Configuration
| Protocol | DB37 PIN | Protocol | DB37 PIN |
|---|---|---|---|
| Power | 1PIN(DC) | J1850 PWM+ | 2PIN(I) |
| Ground | 19PIN(DC) | J1850 PWM- | 21PIN(J) |
| K Diag line | 15PIN(C) | J1850 VPW | 22PIN(K) |
| L Diag line | 16PIN(D) | ||
| CAN high | 17PIN(E) | ||
| CAN low | 18PIN(F) | ||
| SAE J1708 A | 34PIN(G) | ||
| SAE J1708 B | 35PIN(H) |
