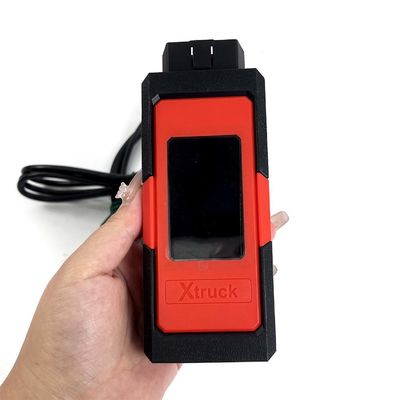

Xtruck X005 Plus Heavy Duty Truck OBD Scanner with DPF Regeneration Test and 8 OBDII Test Modes for FAWDE and SINOTRUK

Xtruck X005 Plus is a Professional Truck Diagnostic Tool For Reading And Clearing Fault Codes, Dpf Regeneration Test


>Supported Platforms: Compatible With The Lastest Android , IOS ,windows System, Even Support Android 6.0 , IOS 11 Or Windows 7
>Connection Method: Bluetooth 5.1 v
>Supported Diagnostic Systems: For FAWDE ,SHACMAN , SINOTRUK , DONGFENG ETC.
>Language : English, Russian, Chinese( The Language Mode Of The Software Is Switched As The User's Mobile Device Switches)
>How To Get The App: Android Can Download By Scanning The Qr Code
>Ios:Download And Install Through The Qr Code
>Pc Port:Please Contact The Distributor






Why Choose Xtruck x005 plus Bluetooth Obd2 Scanner?

*Exclusive Free App: Xtruck x005 Plus Obd Ii App Has An Exclusive App Developed In-House, The Latest Vehicle Data
*Full Obd2 Function: Not Only Accurately Determine The Code And Possible Cause, Also Supports Engine Related, Brake Related, Fault Alarm, Air Intake, Fuel Related Coolant Level, Abs Related, Tansmission, Chassis, Retarder, Lights, Vechile Body, Axle Related Etc For Detection
*Stable Connection: It Is Not Only Compatible With Android And Ios, But Also Adopts The Latest Bluetooth 5.1 Solution, Which Allows The Product To Instantly Connect To The Vehicle's Obd Interface Via Bluetooth, Making It Easier To Read Ecu Data, Greatly Improving The User Experience.
*Special Function - Dpf Regeneration Test




The Dpf Regeneration Fault Light Can Be Divided Into The Following Situations According To Its Lighting Mode
1. Constantly On: Dpf Is Slightly Blocked, Increase The Vehicle Speed, Or Perform Parking Regeneration Operation:
2. Flashing: Dpf Is Moderately Blocked, Perform On-Site Regeneration,
3. Flashing And Accompanied By Engine Fault Lighting: Dpf Is Severely Blocked, And Parking Regeneration Needs To Be Performed Immediately.

Advanced DPF System
Which Is Used To Clear Pm (Particulate Matter) From The Dpf Filter Through Continuous Combustion Oxidation Mode (Such Us High Temperature Heating Conbustion, Fuel Additive Or Catalyst Reduce Pm Ignition Conbustion) To Stabilize The Filter Perfornance. With Regular Dpf Maintenance, You Can Save Lots Of Dollars And Time By Getting Your Dpf Cleaned, Restore Your Dpf To Nearly New! Avoid Costly Replacement Of The Filters. Lower Overall Maintenance Costs.


DPF Regeneration May Be Performed In The Following Cases:

(a) The Exhaust Back Pressure Sensor Is Replaced.
(b) The Pm Trap Is Removed Or Replaced.
(c) The Fuel Additive Nozzle Is Removed Or Replaced.
(d) The Cataytic Oxidizer Is Removed Or Replaced.
(e) The Dpf Regeneration Mil Is On And Maintenance Is Performed.
(f) The Dpf Regeneration Control Module Is Replaced.

Supports 8 Obdii Test Modes
* Read Codes And Clear Codes: Read The Fault Code Within 3 Seconds And Clear The Pending Fault Code, And Turn Off The Engine Light.
* I/M Readiness Test: The Purpose Of The Readiness Monitors Is To Test The Emission Control Systems Of The Vehicle Itself. The Monitors Are Also Known As Emission Monitors. Determine If Your Vehicle Is Ready For a Smog Test.
* O2 Sensor Test: Allows You To Retrieve And View The o2 Sensor Monitor Test Result For The Last Test Performed From The Vehicle's On-Board Computer.
* Vehicle Information: This Displays Information Such As Vin (Vehicle Identification Number), Cid (Calibration Id), And Cvn (Calibration Verification Number).
* Live Data Stream: Reads Abundant Live Data Stream And Freeze Frame Data To Monitor The Operating Status Of The Vehicle, Including The Status Of The Fuel System, Engine Coolant Temperature, Rpm And Various Sensor Parameters.
* Dtc Lookup: The Device Has a Built-In, Up-To-Date Obd-Ii Dtc Library. After You Enter The Fault Code And Select The Car Make, The Definition And Possible Causes Are Displayed So You Know What The Problem Is And May Be Able To Fix It Yourself.

SPECIAL FEATURES YOU SHOULD KNOW

Customized Dashboard: You Can View Various Types Of Live Data, Including Rpm, Vss, Ect, Maf, Tp, Load-Pct, Sparkadv, Iat, Vpwr, Engine-Related Data Streams, Etc, Which Inform You About The Operating Status Of Your Vehicle. Also, You Can Customise The Dashboard As Per Your Requirement.

Performance Test: Vehicle Performance Testing Plays An Important Role In Driving Safety. This Scanner Supports Acceleration, Braking And Sprinting Tests, Displays The Duration Of The Test And The Changes In Speed And Rpm In The Dashboard. a Pid Chart Is Available, Including The Corresponding Values Rpm, Vss, Ect, Maf, Etc.

Download Method:
Support Android/Ios Port/Pc Port
Scan Qr Code To Download
(Each Product Has a Unique Serial Number. Please Read The Product Manual Carefully And Download By Scanning The Qr Code)


User Registration Installation
After The Installation, Turn On The Ignition Switch Ofthe Vehicle And Insert The Xtruck x005 Plus Into The Obddiagnostic Port Of The Vehicle To Power It .


The Positions Where Obd Is Inserted Into The Vehicle
1.Under The Steering Wheel
2.The Bottom Of The Central Control Screen
3.The Lower End Of The Dashboard In The Copilot


The Ignition Device Is As Follows


Insert The Obd Port Of The Vehicle


The User Registers And Logs Into The Bound Device
1.Enter Your Email, Get The Verification Code Andclick“Register".


2.Click “Confirm" To Enter The Device Binding Interfaceclick “Confirm"To Automatically Connect Bluetooth Toenter The Diagnostic System.

Easy To Use
