ECU Flasher For Toyota / Lexus / SCION for NEC 7F00XX series Multipurpose Programmer READ And WRITE ECU TCU via OBD

ECU Flasher Programmer for Toyota for Lexus Denso Support 2015 + obd Write Some 2015 + OBD Models Read for NEC 7F00XX Series MCU

Description:

For Toyota Flasher, a joint project by Autokey and P.C.M.flash, is a multipurpose programmer for Denso and Fujitsu Ten ECUs with NEC processors installed For TOYOTA/LEXUS/SCION vehicles with petrol and diesel engines through JTAG interface. OBD writing via CAN bus is supported. It is a unique solution in the chip tuning world. It covers almost all the models beginning from 2003-2004. It can read, flash, clear, verificate internal flash memory of microcontrollers if connected to the appropriate connector on the ECU circuit board.

Advantages:

·Its own hardware interface allows to avoid all compatibility and driver problems;

·Work through built-in 20 or 26 pin JTAG connector;

·Full access to the ECU memory at high speed of more than 100 KB/s;

·Saving files in the open format;

·Firmware checksum verification and recalculation.

·SUPPORT 2015 + OBD WRITE and SOME MODELS 2015 + OBD READ

·can READ and WRITE via internal 20 pin or 26 pin connector. connection diagram for all known

Supported ECUs:

For TOYOTA DENSO ENGINE CONTROL MODULE based on NEC 7F00XX series MCU :

76F0038

7F0038A

76F0039

76F0039A

76F0040

76F0040A

76F0070 BGA

76F0085 BGA

saving in normal mode without any master-slave.

master only.

auto CHECKSUM CORRECTION support

These processors were introduced at the beginning of CAN support and as a rule with coachwork change.

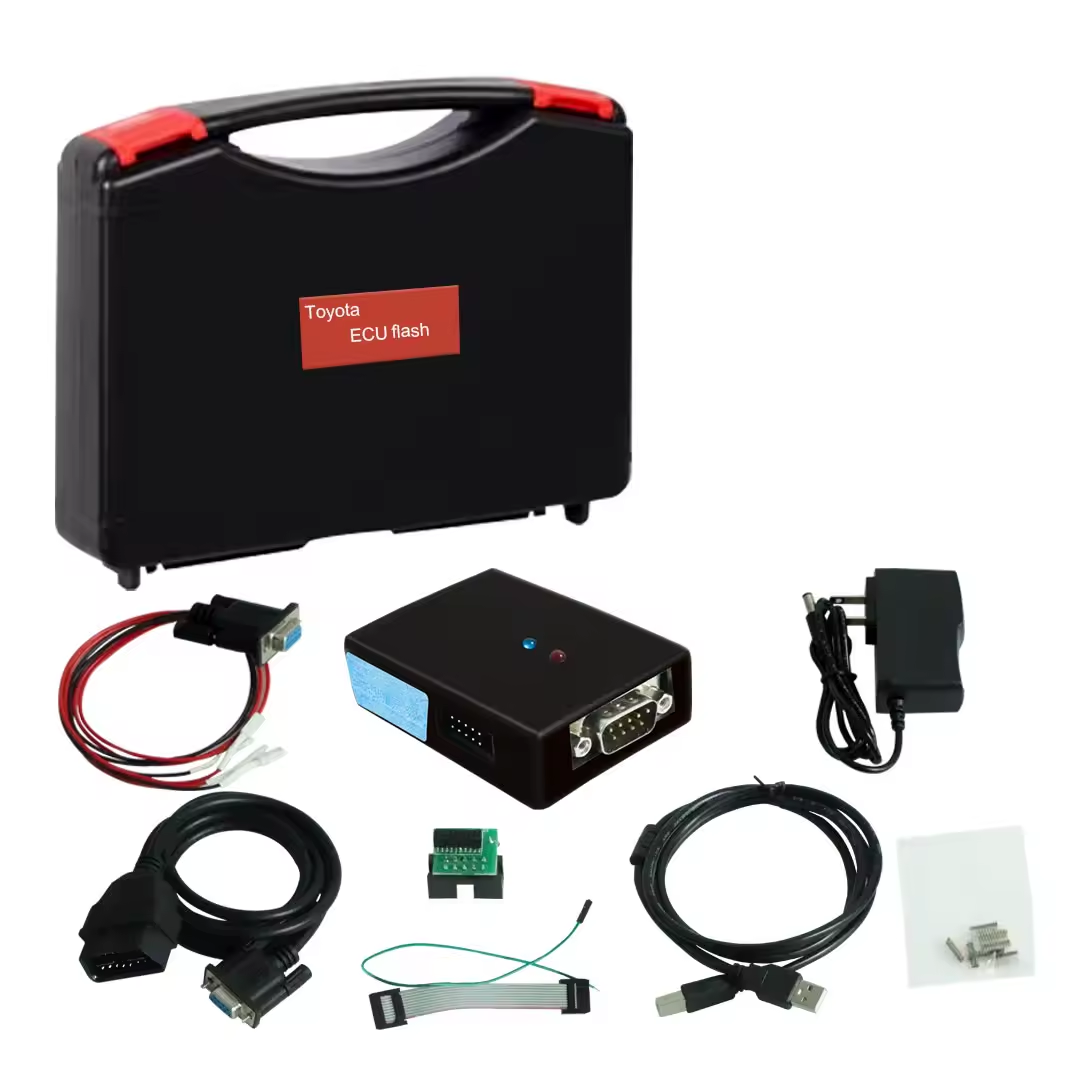

Package List:

ECU Flash main unit

Cables
