BT310 12V/24V Battery Load Tester for Lead Acid AGM GEL EFP Batteries with Cold Cranking Amps Test

Place of Origin China
Brand Name JIUTECH-wenwen
Model Number BT310
Minimum Order Quantity 1
Packaging Details Stardard Package
Delivery Time within 48 hours
Payment Terms T/T, Money Gram
Product Details
Model Name: BT310 Origin: Mainland China
Quality: Superior Name: 12V/24V Battery Load Tester For Cars, Trucks, Motorcycles
Support: For Lead Acid AGM GEL EFP Batteries Charging Tester SOH
Highlight:

12V/24V Battery Load Tester

,

Lead Acid AGM GEL EFP Battery Tester

,

Cold Cranking Amps Test Battery Diagnostic Tool
Leave a Message
Product Description

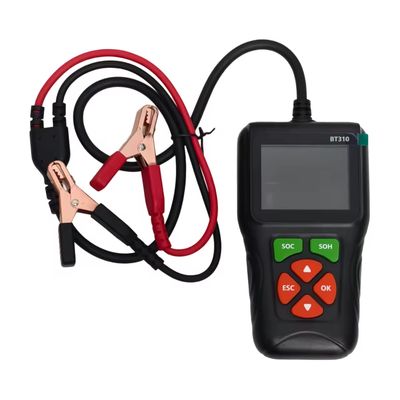

BT310 12V/24V Load Tester for Cars, Trucks, Motorcycles Truck Test Tool For Lead Acid AGM GEL EFP Batteries Charging Tester SOH





The BT310 is a 12V/24V automotive battery tester designed for both car owners and automotive maintenance technicians. It quickly reads essential battery data such as voltage, internal resistance, cold cranking current (CCA), capacity, state of health (SOH), and state of charge (SOC). Delivering accurate test results, it calculates the battery’s cold cranking performance and aging level, enabling faster and more precise vehicle maintenance. The BT310 supports testing of conventional flooded, AGM flat plate, AGM spiral, GEL, and EFB batteries with capacities ranging from 100 to 2000 CCA.






BT310 12V/24V Battery Load Tester for Lead Acid AGM GEL EFP Batteries with Cold Cranking Amps Test 0





Product Specifications:

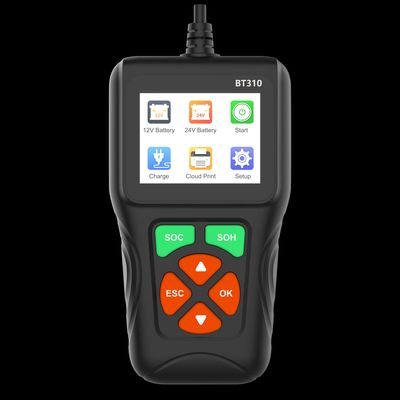

(1) Display: 240*320 pixels, 2.8-inch color screen, high resolution.
(2) Function Buttons:
UP, DOWN, OK, ESC (Up/Down, Confirm, Cancel), SOC and SOH shortcut keys.
(3) Operating Temperature: -20 to 60℃
(4) Storage Temperature: -20 to 60℃
(5) External Power Supply: 9V–35V
(6) Operating Current: 104mA–156mA
(7) Standby Current: 130mA
(8) Dimensions:
Length: 161mm, Width: 89mm, Thickness: 30.5mm
(9) Weight: Approximately 296g
(10) Supported Languages:

  • English

  • Deutsch (German)

  • Français (French)

  • Español (Spanish)

  • Portuguese

  • Italiano (Italian)

  • Russian

  • Dutch

  • Polish

  • Simplified Chinese

  • Traditional Chinese





BT310 12V/24V Battery Load Tester for Lead Acid AGM GEL EFP Batteries with Cold Cranking Amps Test 1



Product Features

  • Battery voltage test

  • Battery internal resistance test

  • State of Charge (SOC) percentage

  • State of Health (SOH) and battery lifespan

  • Cold Cranking Amps (CCA) test

  • Instant result display based on test data:

    • Battery Good

    • Battery Normal

    • Battery Slightly Inferior

    • Battery Poor

  • Battery starting test

  • Battery charging test

  • Cloud printing function (supports viewing test data and printing QR codes)


Parameter Algorithm Verification
The accuracy of the battery tester in measuring Cold Cranking Amps (CCA), State of Charge (SOC), State of Health (SOH), and internal resistance was verified by testing 12V/24V batteries in various conditions and benchmarking against competing products in the industry.



BT310 12V/24V Battery Load Tester for Lead Acid AGM GEL EFP Batteries with Cold Cranking Amps Test 2


BT310 12V/24V Battery Load Tester for Lead Acid AGM GEL EFP Batteries with Cold Cranking Amps Test 3BT310 12V/24V Battery Load Tester for Lead Acid AGM GEL EFP Batteries with Cold Cranking Amps Test 4BT310 12V/24V Battery Load Tester for Lead Acid AGM GEL EFP Batteries with Cold Cranking Amps Test 5BT310 12V/24V Battery Load Tester for Lead Acid AGM GEL EFP Batteries with Cold Cranking Amps Test 6

BT310 12V/24V Battery Load Tester for Lead Acid AGM GEL EFP Batteries with Cold Cranking Amps Test 7


Product packaging dimensions

Color box size: 200*130*43mm

Number of items per box: 40 pieces per box

Outer box size: 54*42*23.5 cm


Package list :



1* BT310 Set (Battery Test Leads) — Red and Black Clip Cables, Length: Approx. 1 Meter
