XTOOL X-100 PAD 2 Special Functions Expert Update Version of X100 PAD

Product Description

XTOOL X-100 PAD 2 Special Functions Expert Update Version of X100 PAD

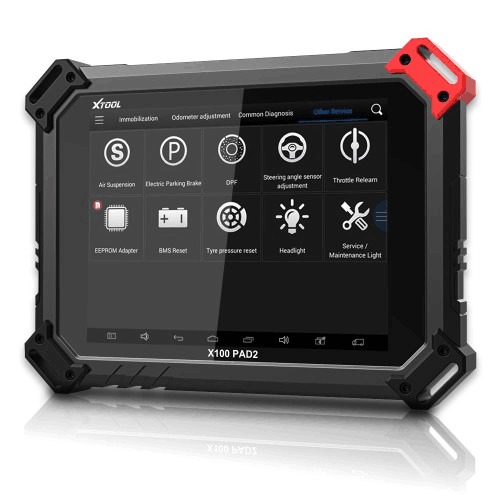

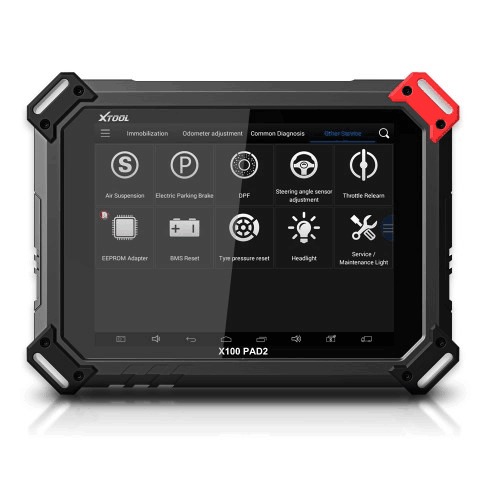

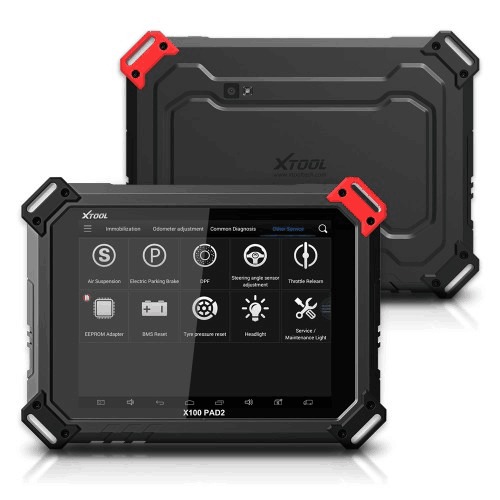

XTOOL X100 PAD2 is a tablet with the latest technologies to perform key programming, mileage adjustment, oil service light reset, timing belt service light reset, tire pressure warning light reset, EPB reset, throttle body reset, battery reset, steering angle calibration and OBD-II engine diagnosis.

XTOOL X100 PAD 2 Features:

1. Support 4 system diagnostics
2. Support Key Programming
3. Support Special functions
4. Support the latest vehicles with CAN BUS and UDS protocol
5. One Click Update Via WIFI (always equip your device with the latest software)
6. Multi-Language: English, German, French, Spanish, Italian, Japanese, Portuguese, Russian, Korean, Finnish, Arabic and Polish.
7. Can Not Support Indian Car Models
8. Two Years Free Update Online

XTOOL X100 PAD2 Function List:

Key Programming Features:

1.New keys programming
2.PIN Code reading with EEPROM
3.Hexadcimal editor(Win Hex)
4.Reads keys from immobilizer's memory
5.New immobilizer programming
6.Vehicle Identification Number programming
7.Reset ECM & reset immobilizer
8.New remote controller programming
9.With full and strong database for the most important vehicle makes
10.Read original key's information and copy to new keys through PCF7991AT and TMS3705(125KHz) Frequency
11.Test remote key's frequency through MB506(433MHz)
12.Host's Type C connector can be connected with KC100 via Micro USB

XTOOL X100 PAD2 Car List:

Immobilization Models supported:
Europe: Audi, Benz, Citroen, Ford, Fiat, Jaguar, Lancia, Land Rover, Opel, Peugeot,Porsche, Renault, Romeo, Seat, Skoda, Smart, VW
America: Buick, Cadillac, Chevrolet, Dodge, GM, GMC, Hummer, Pontiac, Saturn, Ford
Asia: Acura, Honda, Hyundai, Infiniti, Isuzu, KIA, Lexus, Mazda, Mitsubishi,Nissan, Ssangyong, Subaru, Suzuki, Toyota
China: BYD, Great Wall Motor, Brilliance, JAC, Geely Cars, Lifan Cars, Chery

Oil Reset Models Supported:
Oil reset functions usually refers to engine oil, spark plugs, front brake pads, back brake pads, air conditioner, brake liquid, coolant liquid, vehicle checking, etc.
VAG vehicles: Innovative one-click oil reset for VW, Audi, BMW, Mercedes Seat, Skoda, Volvo, etc.
BMW: Reset oil for BMW F01/F02/F03/F04/F07/F10/F11/F12/F13/F18/F20/F30, etc.
Mercedes: Benz new C Class, E Class models and Mercedes Benz VITO/VIANO/SPINTER.
Buick, Cadillac etc: Reset the lifespan percentage ting of engine oil
Porsche Cayenne, Panamera up to 2012
Volvo, Land Rover: Reset maintenance light

Odometer Adjustment Models supported:
VW, AUDI, SEAT, SKODA, BUICK, CADILLAC, CHEVROLET, CHRYSLER, FORD, MAZDA, NISSAN, SUZUKI, KIA, HYUNDAI, JAGUAR, LAND ROVER, PORSCHE and more…




TPS Throttle Body Adaptation:




BMS Reset (Battery Reset):



EPB Electrical Parking Brake Adaptation:
VW ( R36, CC, Magotan etc.), Audi ( A4L, A6L, Q5 etc.), Seat, Skoda and more…




DPF:




Steering Angle Calibration:




Tire Pressure Warning Light Reset (Manual Operation) Models supported:
Mercedes-Benz, GM, VW, BMW, Toyota and more…



EEPROM Adapter Features:　
1.PIN Code Reading
2.ECU Initializing
3.Chip Programming



Four System Diagnosis:

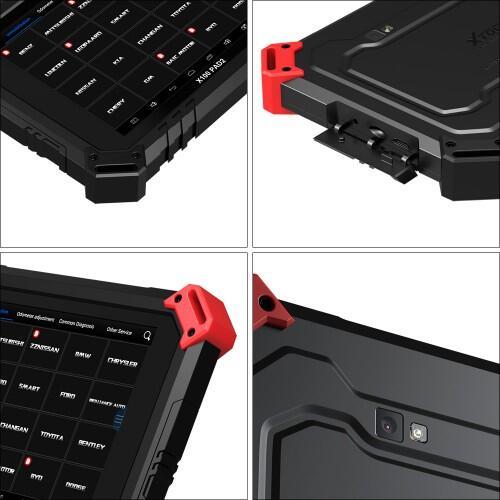

XTOOL X100 PAD Details:

Easy registration with X-100 PAD 2 connected to WIFI. Don’t bother to use PC for registration.

XTOOL X100 PAD2 Connect to vehicle directly with cable:

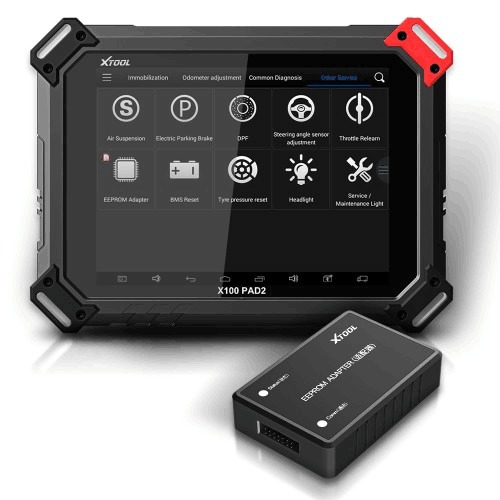

XTOOL X100 PAD2 Connect to vehicle via EEPROM Adapter:

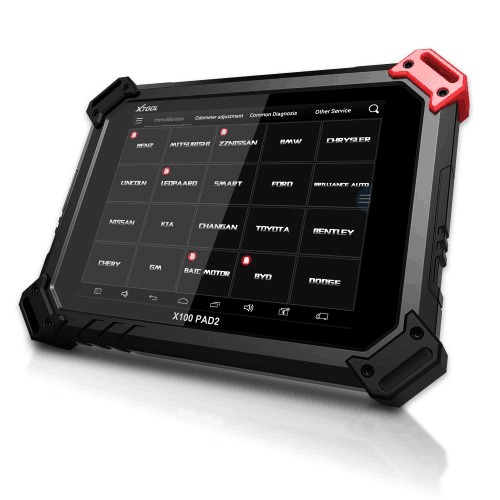

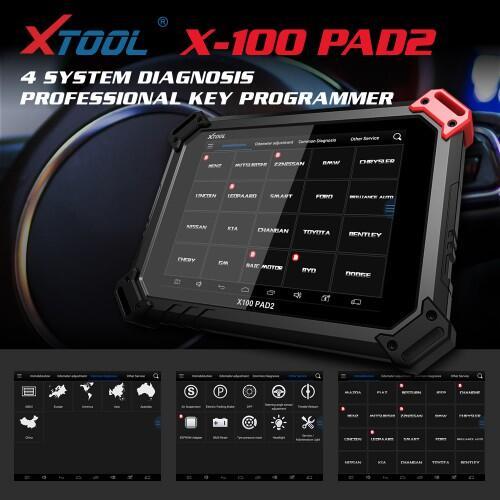

Diagnosis interface for choosing vehicles’ model

You can choose your area before you start

Remote access, which is perfect for training, demonstration and even remote diagnosis.



Diagnosis reports in PDF file. Print out the diagnosis report and show it to car owners when they come and fetch their cars.
They will be really happy knowing what kinds of problems have been fixed for their cars.

How to Update XTOOL X100 PAD2?

One-click update via WIFI. Get the latest software whenever you want! Never miss the update with pop-up update reminder!



XTOOL X100 PAD2 Feedbacks:
Chevy:
Onix 2014 add key okay
Cruze 2013 add key okay
cobalt 2015 add key okay

Opel/Chevy:
Montana 2009 read pin code and add key okay
Corsa c 2010 brazilian model add key is okay

Ford:
fiesta 2011 add key okay
focus 2012 add key okay
focus titaniun 2014 add key okay
Ford C-max 2011 add key ok.

Renault:
sandero 2014 (old version) add key okay,
sandero 2009 , add key okay
kangoo 2011 add key okay
I’ve did several Megane Scenic 2 before 2008 very well. After 2008, Xtool X100 Pad2 read wrong pincode. But with correct pin, it program OK card.

Citroen:
Citroen c3 2008 read pin code and add key okay
Citroen c4 2010 add key okay
Citroen C4 2005 Fail read PIN code in French version ! But OK in English

Peugeot:
207 2010 add key okay
206 2007 add key okay

Honda:
civic 2011 add key okay
civic 2007 add key okay
Honda civic 2002 id48 add key ok!
Honda hr 2015 add key okay

VW:
golf 2003 read add key okay
gol 2012 g5 add key okay
voyage 2009 add key okay
santana 2005 add key okay
parati 2007 add key okay
fox 2008 add key okay.
Vw Sharan 2003 add key ok
Vw golf4 2001 no pin code reading, program key ok.
Vw Passat 2004 read pin code ok program key ok!
Note:for VW 4th 5th immo need work with XTOOL KC100 VW 4th & 5th IMMO Adapter

Fiat:
uno way 2013 dash ,, read pin code, make a dealer key , and add key is okay
Fiat uno 2007 , key prepared by effi and added by pad 2 obd connection + pin code,,
Fiat palio fire economy 1.0 year 2010 key added by pad 2 ,, same as fiat uno
Fiat strada , 2009 and 2008 ,, same as uno and palio
all them imobox 1k59h,,
Fiat doblo 2003 , key prepared by effi and added by pad 2
Fiat siena 2001 , key prepared by effi and added by pad 2
Fiat palio wekend 2002 key prepared by effi and added by pad 2
all them same body computer ,, 93lc66 ,,
big motherboard and small motherboard
Kia sportage 2015/16 add key okay
Fiat palio 2005 bc 1k79x
Fiat palio 2011 bc 1k79x
Fiat siena 2007 bc 1k79x
Fiat strada 2009 bc 1k79
all them added key okay by obd +pin code,, key prepared by zed bull + effi.
fiat gran siena 2014

Other:
Dacia sandero 2016 key and pin code okey
Toyota corolla 2015 brazilian version okay
blazer 2014 okay add key ,
Hyundai hb20 2016 add key okay.
Mitsubishi asx 2013 , transponder prepared by handy baby
and added by pad 2.
LR Sport 2009 add Chinese remote key OK
RAM 1500 2012 add Fobik OK
Nissan note 2015 ok
Clio 2 ph2 2005, auto pin and program 7946: OK
Scenic 2 2006, auto pin and program card: OK
Scenic 2 2009, read pin but wrong, use FnR to finish the card.
Mazda bt50 2017 odometer change work!!! in 30 seconds
Seat altea 1.9 tdi 2008 add new remote (wich is programed by vvdi tool) succes!!
key adding nit tryed( don’t have pin pin read fail) new id48 copyed by silca rw4+.
megane/scenic (2006 check one more time) read pin code ok ,add key card success.
Peugeot 207 2006 add new key/remote success.

XTOOL PAD2 Failure List:
Vectra c euro. Not work.
Audi a4 b5 vdo dash or separate immo nox not work no com no pin read.
Audi a6 pre fl diesel petrol no pin read not work.
qashqai 2+2 same as pathfinder not work . Keyless add not work . Ad chip no work bricked car.
Need fix opel key learn. Not work

And no Chinese tool can read PSA PIN code before 2005 ( except C4 )
so who read psa pin before 2005?
The answer is
1) main dealer or customer code card !
2) in ECU or BSI eeprom
Nissan Navara 2009. Read BCM code ok program key communication fault. I finished work FVDI


XTOOL X100 PAD2 Reviews:

Review 1:
Seems to have good coverage (and with regular updates - at least 1 or more a week, it seems). I immediately used it to reset my 2006 Porsche Cayman oil service reminder - - something that my other similar diagnostic tools were not able to do. The interface is easy to understand and navigate, as is the process for downloading and installing updates. I think this is worth the money for a small shop or even a hobbyist mechanic who has a need for the types of functions that this tool provides.

Review 2:
As for Key Immobilizer programming, I was able to program my own Key & Remote for a 2016 Camry H-Chip. For only $30 + $5 to cut the key, it saves the $250 or more the dealer will charge you. On a 2017 Explorer - Smart Key, I was not able to get the tablet to communicate with the car. After you select USA FORD, then it goes the Immobilizer/Smart Key, and you pick the 'Smart key System' (push button start) -> then it says 'Failed To Communicate'. Maybe there will be an update in the future. UPDATE: I was able to add extra Smart Keys to my Ford without the programmer. All I needed was 2 working Smart Keys. I purchased 2 extra keys and added them as 'Admin Keys' myself.

It is important to have this tool to clear engine lights, and to help you diagnose any problems, some mechanics will tend to rip you off, and charge $ just to reset the engine light, oil/service light, or battery reset.

Review 3:
xtool x100 pad2 is very good at reprogramming toyota such as harrier, camry , Prado120/150, all keys lost by obd2, and xtool x100 pad is good at nissan including reading bcm and calculating pincodes just obd2.

XTOOL X100 PAD2 FAQs:

Q1:I deleted software on Xtool pad2,how to solve?
A1:Here you can download and update it to restore,you can refer to:XTOOL X100 PAD update (x100 pad2 same operations)

Q2:Is it support Indian cars
A2:Yes

Q3:hi i am trying to do program key and odometer reset for ford 2006-2010 fusion and 2008 to 2011 focus will this scanner work?
A3:Yes...you can program the keys for that vehicle.

Q4:Will this program a new key fob for a 2014 cadillac ats?
A4:Yes

Q5:Does this item work for 2017 Ford Fusion hybrid odometer correction??
A5:no,it only support 93C86 dashboard for odometer. And it won't do 2017 years on this model.

Q6:Does this adjust odomoter for 2017 dodge challenger?
A6:Sorry,it can not support

Pictures
Name	X100 Pro	X100 PAD	X100 PAD2	X100 PAD2 Pro
Immobilizer	√	√	√	√
ECU Reset	√	√	√	√
ABS Exhaust	√	√	√	√
OBD2 Diagnostics	√	√	√	√
EEPROM Adapter	√	√	√	√
Code/Clean Reader	√	√	√	√
Electronic Power Steering	√	√	√	√
Meter Mileage Adjustment	√	√	√	√
Maintenance Light Reset	×	√	√	√
Throttle Matching	×	√	√	√
Tire Pressure Reset	×	√	√	√
EPB Electronic Brake	×	√	√	√
Exhaust Aftertreatment	×	√	√	√
Headlight Adjustment	×	√	√	√
Diagnostic	×	×	√	√
Suspension	×	×	√	√
Battery Matching	×	×	√	√
4 System Diagnostic	×	×	√	√
VW 4th & 5th IMMO	×	×	×	√

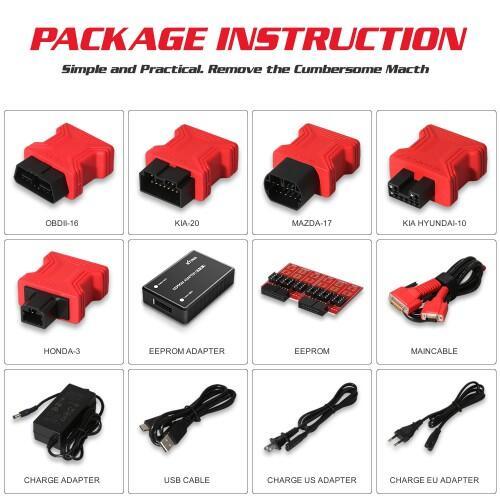

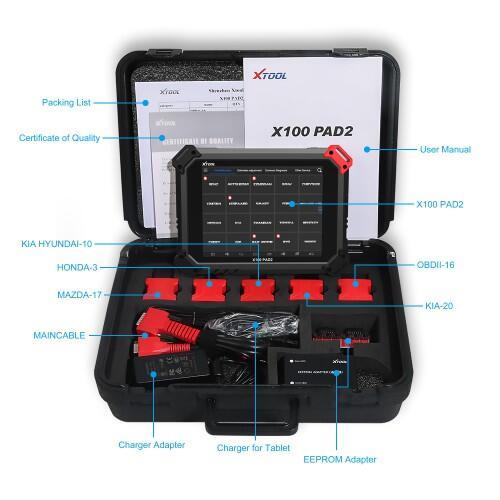

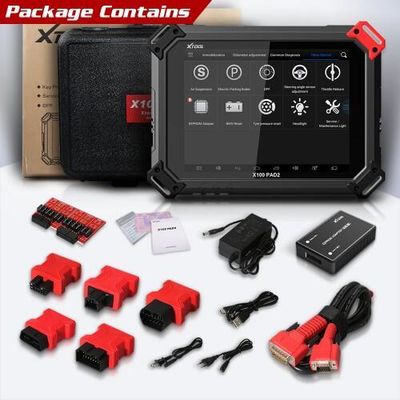

XTOOL X100 PAD 2 Package including:

1pc x X-100 PAD 2
1pc x OBD II-16
1pc x HONDA-3
1pc x KIA-20
1pc x MAZDA-17R
1pc x HYUNDAI/KIA-10
1pc x Main Cable (DB15_Male To VGA_Male)
1pc x DC12V(AC100~240V) 3ACharger
1pc x US Power Adapter
1pc x EU Power Adapter
1pc x EEPROM
1pc x USB Type-C to Mini USB cable
1pc x Type-C cable
1pc x Certificate of Quality
1pc x Packing List
1pc x User Manual
