Launch X-431 PAD VII PAD 7 Elite Automotive Diagnostic Tool With SmartLink C Support Topology Map ECU Programming

Product Description

[Second-hand 95% New] Launch X-431 PAD VII PAD 7 Elite Automotive Diagnostic Tool With SmartLink C Support Topology Map ECU Programming 60+ Services

Please note before purchasing:

1. This is a second-hand product, only available for European customers.
Ships from European warehouse to EU. Tax-free.
2. No Product quality issues.
3. Support registration

Click to Check the Launch X-431 PAD VII PAD 7 Elite Automotive Diagnostic Tool

Launch X-431 PAD VII PAD 7 Elite Highlights:



From Hardware :

1. Android 9.0 KitKat ensures rapid boot-up in just seconds and smooth multitasking.
2. IP65 Rating effectively withstands low-pressure jets of water from all directions without any harmful effects.
3. 8GB+256GB onboard memory, ideal for storing materials. smoother operation; strong light readable screen; support for three defenses
4. Upgraded on Top of Launch X431 V+/PROS V/X431 PADIII to Rival the OEM Automotive Diagnostic Tools
5. SmartLink C VCI (also as J2534-1 & -2 Pass-thru device) allows you to refresh ECU and upgrade OE software. LAUNCH SmartLink supports remote diagnosis.
6. Its Sleek & Lightweight Tablet-style design features a capacitive touchscreen that responds to your every gesture.
7. Powerful 8-core Cortex-A53 Processor (2GHz) enhances the speed of your programming and diagnostics.
8. Wireless scanning capability and dual 2.4&5GHz Wi-Fi connection. Connect effortlessly and work from any location in the service bay
9. The rechargeable lithium-polymer battery with an capacity of 18,720Ah enables continuous operation for up to 20 hours.
10. 5G WiFi Communication automatically connects within 20 meters, far better than traditional BT connection in transmission rate, diagnostic
11. 13.3" (1920*1080) Touchscreen, Experience a visually stunning view with the large and Ultra-sharp while the Gorilla Glass provides outstanding scratch resistance.
12. X431 pad vii's screen made of Gorilla Glass, which provides exceptional damage resistance to the scratches, bumps and drops from everyday use.

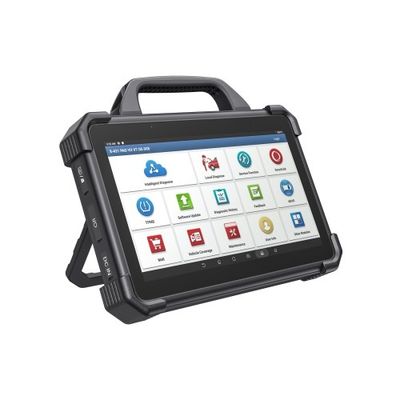

13. 180° Adjustable Kickstand allows for more convenient viewing angles, hands-free operation, and space-saving. It also prevents the diagnostic tool from tipping over or sliding on smooth surfaces.
14. Launch “ Mall ” Newly released European Professional Software License: FCA, Mercedes, Renault,Haynes pro/X431 FIX/CarSET PRO(Check- How to Purchase)

From Software:

1. 2 Years Free Update Online. After 2 Years, Please buy Update Service.
2. With Smartlink C 2.0 VCI, Support Remote Diagnosis ( Requires Activation card )
3. NEW Protocols to support the vehicles of today and tomorrow: DoIP, CAN-FD, D-PDU, J2534, RP1210.
4. Online Programming for Car Brands: BMW, Mercedes, VW, Audi, Seat, Skoda, Porsche, Nissan, Infiniti, Subaru.
5. According to function, Launch tool sequence: X431 PAD7 Elite> PAD5 >PAD3 >PRO5 >X431 V+> PROS V>PROS MIN
6. 8 Extended Modules: such as ADAS calibration toolkit; VSP-600 videoscope; X431 TMS TSgun; BTS360 battery tester; X-PROG & X-PROG3 immobilizer, etc.
7. [Support 110+ car brands] with 99.99% worldwide car coverage. Coverage for U.S., Asian and European Markets Include Australian Ford and Holden, Brazilian, Indian and Malaysian cars
8. [Multi-Language Supported] English, French, Spanish, German, Russian, Korean, Japanese, Portuguese, Italian, Polish, Dutch, Hungarian, Finnish, Czech, Turkish, Greek, Arabic, Danish, Romanian, Serbian, Swedish, Traditional Chinese, Thai, Persian, Simplified Chinese,Hebrew, Croatian, Indonesian and ect.
9. [All-in-One Tool for Diagnoses and Inspections ] High-end ECU programming backup/restore for ECU/SCN coding, topology mapping, 60+ service functions, guided functions, read and clear DTC, remote diagnosis, Bi-directional control, live data graph, wireless software update etc.
10. [LAUNCH X431 PAD VII ELITE, Focus on the Customer ] : LAUNCH X431 PAD VII ELITE features diagnostic feedback which allows you to send problems to us for analysis. It also offers many repair guidance options including operation tips/relevant cases for your reference. As the biggest reliable & authorized LAUNCH seller, we offer you original LAUNCH X431 PAD VII ELITE, which comes with 2-year free update,

Launch X-431 PAD VII PAD 7 Elite Main Functions:

Support EPB function
VAG Guided Function
Support Super remote diagnosis. Click here to activate
Clone Mercedes Benz ECU 2015 upwards with X431 XPROG III.
Intelligent diagnostic enable identify VIN automatically and access system quickly
Build-in repair information and training video modules help to track and fix issue fast.
Supports gasoline cars and diesel heavy-duty trucks DC9-36V (need to purchase truck software separately)
Gain Renault SGW diagnostic access by using optional unlocking software and device.
FCA AutoAuth Access: Bypass SGM in FCA vehicles seamlessly and within seconds; Need AutoAuth subscriptions
Auto-detects the communications protocol of the vehicle and assist to check automotive OBDII port pin damaged or not
Online Programming: BMW, Benz; Offline Programming: VW, Audi, Seat, Skoda, Renault, Nissan, Subaru, Hyundai, Kia, Chery, Jaguar, Land rover, Porsche
Now online programming function is available in the North American region.
Supports ADAS calibration and eight extended modules such as videoscope, oscilloscope, sensor box, TPMS tools, key immobilizer, and battery tester.
[60+ advanced Services] LAUNCH X431 PAD VII ELITE bidirectional scan tool has 60+ service functions, like Oil Reset/ABS Bleeding/Injector Coding… to win more business.
With Smarlink C Empower technician to diagnose light, medium and heavy duty vehicles; SmartLink C VCI (also as J2534-1 & -2 Pass-thru device) allows you to refresh ECU and upgrade OE software.
[Intelligent Diagnose & Guided Functions ] LAUNCH X431 PAD VII ELITE scan tool has Intelligent Diagnose to free you from tedious works: easily get VIN data, guide you to vehicle information page without menu selection, and display all diagnostic records. Guided Function (for V.A.G) allows on-screen prompts for proper diagnostics, simple & convenient. Pin Detection allows detecting DLC pins voltage and accessing protocol types to troubleshoot your DLC port.
[Huge-Upgraded ECU Programming & Coding] Beyond the reach of most competitors, LAUNCH X431 PAD VII ELITE features ECU Programming working on upmost 30+ car brands: 1) Backup/Restore data from original ECUs, you won't find this in any other tools; 2) Programming offline or online, manual or automatic to meet more needs; 3) R-etrofit, e.g. replace halogen lamp. 4) ECU Upgrade, e.g for Fuel quality d efect firmware. Coding features: Recode ECU Data, Personalization, and loads of more.
[Topology mapping] checks DTCs and all-system communication status visually in LAUNCH X431 PAD VII ELITE top scanner. The actuation test detects problems 5X faster than tearing autoparts apart. Topology mapping checks DTCs and all-system communication status visually in LAUNCH X431 PAD VII ELITE top scanner. The actuation test detects problems 5X faster than tearing autoparts apart. Multiple protocols: J2534, RP1210/D-PDU (for HD cars), Do-IP (BMWs E/F, Land Rover/Jaguar), CANFD (new GM).
Supports Benz, Porsche, Skoda, Seat, Sprinter, Nissan infiniti, Hyundai, Kia, Chery, Geely online programming till 2023. Part of Renault till 2021, Subaru till 2022, Ford/Mazda till 2019, Audi, VW, BMW, Smart till 2024

Newly Added Functions:

NEW! Adds CAN Analyzer
NEW! Adds "X-431 FIX" function (Need to purchase from Mall)
Diagnostic Plan: Provides a plan to guide you on how to repair based on the currently detected fault codes.
User Information: A large amount of diagnostic data is well stored in this module, including Reports, Order, Live Data Stream, etc.
OBD PIN Detection: Detect the vehicle protocols and OBDII pin voltage status to help technicians judge the OBD2 interface.
Added Indonesian and Thai language.
Group chat function is added to IM.
The special function of ODO CHECK is added to read the mileage information in each system of the vehicle.
The special function of RESETSVIN is added to read the VIN information in each system of the vehicle.
Online download of configuration files is added to ADAS.EM 101N Oscilloscope, EM 101N Multimeter, Current Clamp and Key Programmer extension modules are added to the toolbox.
Optimized the topology diagram, and more than one line of function buttons above can be displayed in a drop-down way.
Optimized the Google translation problems.
Optimized the tire pressure diagnosis.
Optimize the prompts for contacting customer service on the passwordretrieval page.

Supports Extended Function Modules:

Launch motorcycle connector kit: For diagnose motorcycles
X-431 Wi-Fi Printer: print out diagnostic data & reports.
VSP-600 VideoScope: for up-close visual inspections in confined areas.
X-431 TSGUN: activate all sensors, relearn & program LAUNCH sensors.
BTS360 Bluetooth Battery Tester: get a thorough test of the vehicle battery.
Truck software: Supports gasoline cars and diesel heavy-duty trucks DC9-36V (need to purchase truck software separately)
S2-2 SensorBox: diagnose and simulate vehicle sensor faults quickly.
O2-2 ScopeBox, Oscilloscope: quickly acquire the circuit signal, and slowly display the waveform to observe and analyze.
X-PROG & X-PROG3 Immobilizer: for key programming & IMMO service. Clone Mercedes Benz ECU 2015 upwardss
Buy Launch X431 X-PROG 3+ IMMO Function Service X431 PAD VII Elite will have the same immobilizer function as X431 IMMO Plus or IMMO Elite.
Launch X431 EV Diagnostic Upgrade Kit : Supports New Energy Battery Diagnostics. Includes activation card and adapters for specific electric vehicles to perform battery pack analysis. Can diagnose battery pack State of Charge and State of Health on Tesla, BYD and many other electric vehicles.
Launch X431 Key Remote Maker Able to read Transponder, Generate Launch super chip and universal remote keys, Transponder, Detect Frequency, Detect Ignition switch coil signal, Generate Launch super chip and universal remote key
ADAS software Calibration: Advanced driver assistance systems, or ADAS is designed to improve driver, passenger and pedestrian safety by reducing both the severity and overall number of motor vehicle accidents. ADAS can warn drivers of potential dangers, intervene to help the driver remain in control in order to prevent an accident and, if necessary, reduce the severity of an accident if it can’t be avoided.

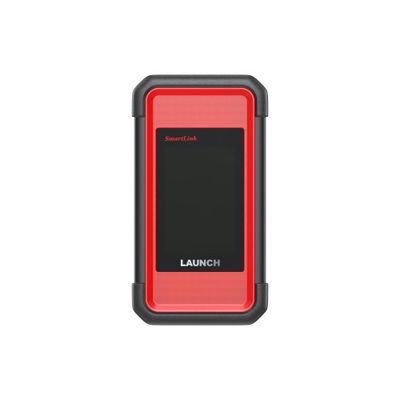

Smartlink C supports remote diagnosis (needs activation card) 3-in-1 SmartLink C Device: Work as VCI to obtain vehicle data; Provide dual diagnostic modes; Act as a J2534 programming device.

Launch X431 Pad VII Elite Functions:

1. ALL System Diagnosis

Powerful all system diagnostic functions (intelligent diagnosis, read DTC, clear DTC, read data stream, actuation test), accurate diagnostic data, and abundant special functions.
Local diagnose:When the intelligent diagnosis is not available in an environment without network, choose traditional diagnosis. Select the vehicle make and model manually to perform the vehicle detection.
Real-time voltage display helps technician to monitor the voltage condition of vehicle during the diagnosis
Intelligent diagnostic enable identify VIN automatically and access system quickly



BI-Directional Control [Active Test]



Check the DTCs and all systems communication status visually by topology module mapping function



2. 32 Service Functions:

Service Lamp Reset
Electronic Throttle
Brake Reset
Immobilizer Reset
Battery Reset
Injector Coding
SAS Reset
TPMS Reset
ABS Bleeding
Gear Learning
DPF Regeneration
Gearbox Reset
Headlamp Reset
Sunroof Initialization
SUS Reset
EGR Adaption
A/F Reset
AdBlue Reset
Nox Sensor Reset
Stop/Start settings
Transport Mode
Coolant Bleed
Windows Calibrations
Seat Calibrations
Tyre Reset
Language Change



3. Advanced ECU Coding and Online Coding

J2534 ECU + Programming
Flash Hidden Functions
ECU Coding
Guided Functions
AutoAuth for FCA SGW
Anti-Theft IMMO Service



4. ADAS calibration Function and Extend 8 Module Functions

Optional ADAS calibration function increases more revenue.



X431 PAD VII Elite also supports 8 extended modules such as videoscope, oscilloscope, sensor box, TPMS tools, key immobilizer and battery tester. With these extended modules, technicians are available to solve high level faults with ease, to make thouse extended modules, you need to pay and buy the following extended adapters, please notice

1. X431 VSP-600 Videoscope Mainly applied to check unseen parts of engine, fuel tank, braking system, etc.)
2. Launch i-TPMS Provides professional and comprehensive TPMS services for repair shops to develop their TPMS business. It can program LAUNCH LTR RF sensors for unlimited times to replace OE sensors.
3. X431 X-PROG III IMMO For VAG Group Above 3.5,advanced immobilizer & key programmer)Vehicles that require cloning are not compatible with this accessory
4. X431 BST360 Battery Test For Battery Cranking system Test, Battery Charging system Test, Battery Health Test)
5. S2-2 SensorBox Designed to test and simulate most vehicle sensors. quickly troubleshooting the ECU)
6. O2-2 ScopeBox Allows the user to capture a particular waveform which makes the process 70% more dfficient as compared to other scopes. It features the ability to record and playback high-resolution waveform data for future analysis.
7. X431 ADAS Moblie/ADAS PRO (Calibrate a wide range of camera-based & radar-based driver assistance systems)
8. X431 Printer (Print out diagnostic data/reports.)



5. More Advanced Functions:
