Professional LAUNCH ES200 EV Insulation Resistance Tester For Accurate Leakage Current Detection

  • Professional LAUNCH ES200 EV Insulation Resistance Tester For Accurate Leakage Current Detection
  • Professional LAUNCH ES200 EV Insulation Resistance Tester For Accurate Leakage Current Detection
  • Professional LAUNCH ES200 EV Insulation Resistance Tester For Accurate Leakage Current Detection
  • Professional LAUNCH ES200 EV Insulation Resistance Tester For Accurate Leakage Current Detection
Place of Origin CHINA
Brand Name Launch
Model Number LAUNCH ES200 EV Insulation Resistance Tester
Minimum Order Quantity 1
Price $559
Packaging Details 3.0KG
Delivery Time 1 work day
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 1000

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model Name LAUNCH ES200 EV Insulation Resistance Tester Origin Mainland China
Quality Superior
Highlight

LAUNCH ES200 EV Insulation Resistance Tester

,

EV Insulation Resistance Tester

,

LAUNCH ES200 Tester
Leave a Message
Product Description

Product Description

Insulation resistance meters are commonly known as megohm meters, or shake meters, high resistance meters, insulation resistance testers, etc. It is reflected by insulation resistance. The product insulation resistance which is measured refers to the insulation resistance between the live part and the exposed non-live metal part(case). Using an insulation tester for measurement can effectively protect the safety of maintenance personnel.

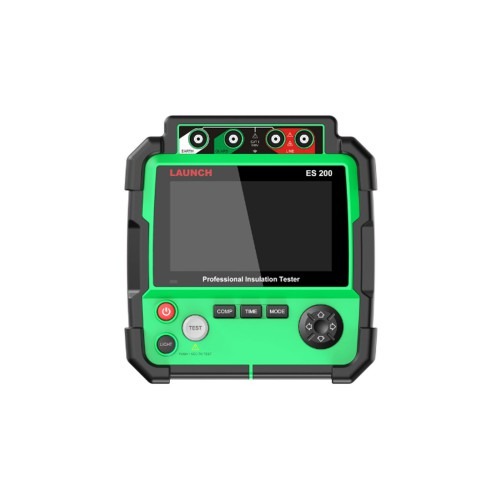

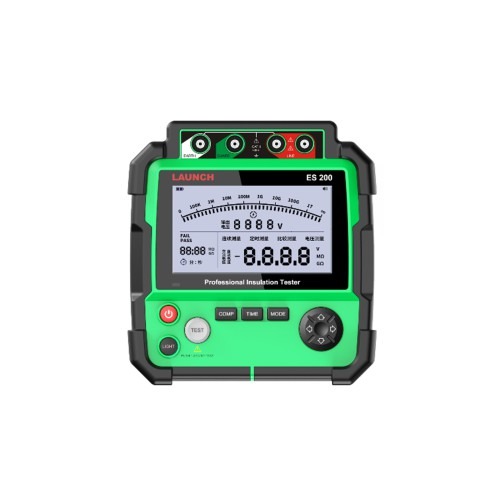

LAUNCH ES200 EV Insulation Resistance Tester
Insulation resistance meters are commonly known as megohm meters, or shake meters, high resistance meters, insulation resistance testers, etc. It is reflected by insulation resistance. The product insulation resistance which is measured refers to the insulation resistance between the live part and the exposed non-live metal part(case). Using an insulation tester for measurement can effectively protect the safety of maintenance personnel.

Product Features:
1. ES200 s capable of measuring insulation resistance, and also innovatively increases the voltage measurement function.

2. Equipped with standard resistance, in the comparison measurement mode, the measured resistance value is compared with the standard resistance to ensure the measurement accuracy.

3. Three measurement modes: timing measurement, comparison measurement, continuous measurement and omnidirectional measurement.

Product Specification:
ES200 Specification

Battery: 3150mAh
Display: 5''
Working Temperature: 0~50℃
Dimensions: 180*174*65.5(mm)
Weight: 1.7kg

AC and DC Voltage Test Performance Parameters

Voltage Type DC Voltage AC Voltage
Measuring Range ±30~±600V 30~600V(50/60Hz)
Resolution 1V 1V
Measurement Accuracy ±3% ±3%

Insulation Resistance Test Performance Parameters

Test Voltage: 500V 1000V 2000V 5000V
Measuring Range: 0.0MΩ～20GΩ 0.0MΩ～40GΩ 0.0MΩ～100GΩ 0.0MΩ～1000GΩ
Open Circuit Voltage: DC500V(0～20%) DC1000V(0～20%) DC2000V(0～20%) DC5000V(0～20%)
Measurement Accuracy: 0.0～99.9MΩ: ±(3%+5) 0.0～99.9MΩ: ±(3%+5) 0.0～99.9MΩ: ±(3%+5) 0.0～99.9MΩ: ±(3%+5)
100MΩ～9.99GΩ: ±(5%+5) 100MΩ～9.99GΩ: ±(5%+5) 100MΩ～9.99GΩ: ±(5%+5) 100MΩ～9.99GΩ: ±(5%+5)
10.0GΩ～20.0GΩ: ±(10%+5) 10.0GΩ～40.0GΩ: ±(10%+5) 10.0GΩ～100GΩ: ±(10%+5) 10.0GΩ～99.9G: ±Ω(10%+5)
Short Circuit Current: <3.0mA

Package includes:

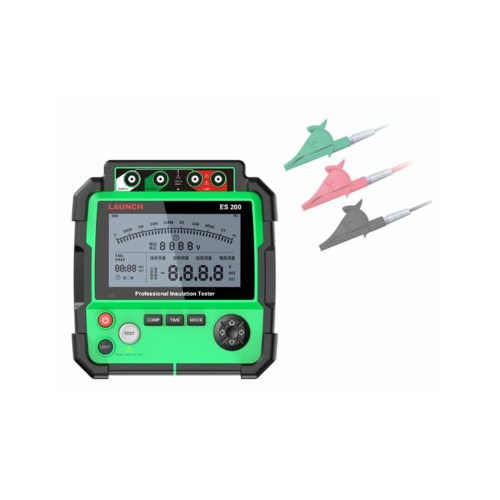

1pc x LAUNCH ES200 EV Insulation Resistance Tester
