Autel MaxiSYS MS906TS OBD2 Bi-Directional Diagnostic Scanner with TPMS Functions ECU Coding 33+ Services

Product Description

Autel MaxiSYS MS906TS OBD2 Bi-Directional Diagnostic Scanner with TPMS Functions ECU Coding 33+ Services

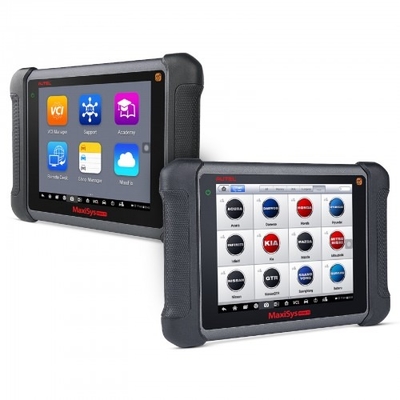

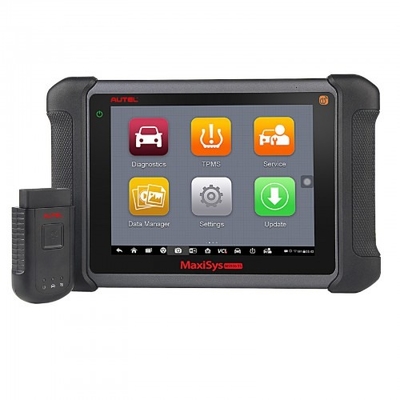

MaxiSys MS906TS is the latest addition to the MaxiSys product line of advanced wireless diagnostic devices integrated with the TPMS antenna module. The device is based on the Android operating system featured with the best possible coverage of OE-level diagnostics and TPMS integration. Utilizing the powerful Exynos 5260 6-core processor (1.3 GHz quad-core ARM Cortex-A7 + 1.7 GHz dual-core ARM Cortex-A15), an 8” capacitive HD touch screen, and long-distance wireless communication, the MaxiSys MS906TS efficiently provides comprehensive vehicle diagnostics and analysis along with universal TPMS solutions.

Product Features:

Extraordinarily powerful Samsung Exynos Hexa-core processor,
8.0” 1024x768 LED-backlit glossy Multi-Touch capacitive display with IPS technology for ultra-mobility,
Internal reliable 32GB SSD for better performance,
Built-in 8-megapixel rear camera with autofocus and flashlight,
Integrated TPMS antenna module for performing comprehensive TPMS service,
802.11b/g/n Wi-Fi to access your favorite web resources,
Unique ergonomic design with rubberized outer protection and a rugged internal housing,
Built-in rechargeable lithium-polymer battery for up to 14 hours of continuous operation,
USB, audio and auxiliary ports make it easy to connect accessories,
Open source Android Operating System for fast boot-up and multitasking,
Easy and intuitive navigation makes finding what you need simple and fast

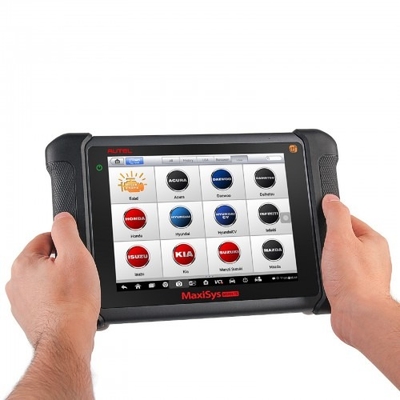

The most extensive complete system coverage for more than 80 US, Asian and European makes and models
Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding
Complete capabilities for codes, live data, active test, ECU information, adaptation, matching, coding etc.
Smart AutoVIN technology for identifying vehicle easily
Uniquely integrated TPMS service application designed for triggering known OEM TPMS sensors, programming Autel MX-Sensor and performing TPMS sensor relearn procedure
Automatic system and software updates with real-time push message notifications via internet
Instant remote control tech support anytime, anywhere
Cloud-based MaxiFix online community provides a vast database of diagnostic and repair tips and proven filed fixes
Interactive Data Logging sessions enable direct contact with Autel Technical Support for first-hand troubleshooting of diagnostic bugs and errors
One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
Enhanced wireless connectivity between the display tablet and VCI device allows greater mobility and ease at work
Convenient data management system for managing internal program applications and reviewing data



Highlights of 2022 Autel Maxisys MS906TS

【Upgraded Version of MS906BT / MP808TS】: Autel MS906TS diagnostic scanner, as one of the most professional diagnostic tools of MaxiSys line, is the combination of MS906BT and TS601. It is loaded with all TPMS functions to activate all known OEM TPMS sensors, view sensor data, program Autel MX-Sensors, and perform TPMS relearn and diagnostics.
【 ECU Coding for 80+ Vehicle Brands】: The Autel scanner advanced ECU Coding technology allows reprogramming adaptive data after repair or replacement to improve vehicle performance for 80+ brands of vehicles such as Toyota, Honda, Nissan, etc. ECU online coding and custom configurations are designed to unleash the hidden functions for Audi, VW, Skoda, Porsche, etc., such as personalization, guided function, modifications.
【OE-Level Full-System Diagnosis & 33+ Special Functions】: OE-Level Full-System Diagnosis & 33+ Special Functions: Professional as Autel is, the MS906TS scans all systems of the vehicle faster, including engine, transmission, ABS, etc. and presents more accurate reports; 33+ services, including Oil Reset, IMMO Keys (disable lost keys, add new keys), ABS Bleeding, Injector Coding, etc., make maintenance more efficient and convenient.
【 Bi-directional Control】: The active test enables the automotive scan tool to perform specific tests and functions to check the vehicle operating system, such as turning the fuel pump on and off, cycling the a/c clutch on and off, and performing evaporation emission leak tests. Bidirectional control is to troubleshoot quickly and solve problems promptly.





Product Specifications:

Operating System: Android™ 4.4.2, KitKat
Processor: Samsung Exynos T5260 hex-core Processor (1.3 GHz quad-core ARM Cortex-A7 + 1.7 GHz dual-core ARM Cortex-A15)
Memory: 2GB RAM & 32GB ROM
Display: 8.0” LED capacitive touchscreen with 1024 x 768P resolution
Connectivity: Wi-Fi (802.11 b/g/n), USB: 2.0, Mini USB 2.0, Wireless BT V2.1+EDR, Class1, HDMI 1.4a, SD Card (support up to 32GB)

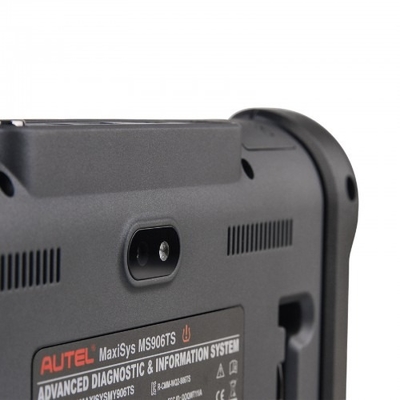

Camera (rear): Rear-facing, 8.0 Megapixel, AF with Flashlight
Sensors: Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output: Microphone, Single Speaker, 3-Band 3.5 mm stereo/standard headset jack
Power and Battery: 10,000 mAh 3.7 V lithium-polymer battery, Charging via 12 V AC/DC power supply
Input Voltage:12 V (9-35 V)
Power Consumption: 5 W
Operating Temperature: -10 to 55°C (14 to 131°F)
Storage Temperature: -20 to 70°C (-4 to 158°F)
Housing: Rugged housing and extra rubberized protection
Dimensions(W x H x D): 270.8 mm (10.0”) x 176.0 mm (6.9”) x 36.0 mm (1.4”)
Weight: NW: 1.10 kg (2.42 lb.)
Warranty: 1 year
Software Update: 1 year free

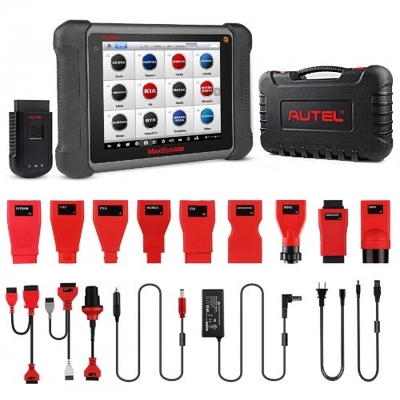

Package Includes:

1pc x Autel MaxiSYS MS906TS Main Unit

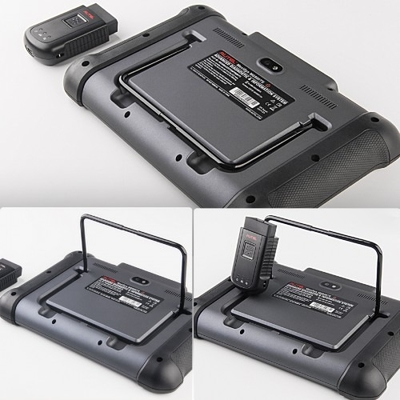

1pc x MaxiVCI V100
1pc x USB cable
1pc x Power adaptor
1pc x Cigarette lighte
1pc x Light fuse
1pc x Honda-3
1pc x Nissan-14
1pc x Mitsubishi-Hyundai-12+16
1pc x Kia-20
1pc x Benz-38
1pc x BMW-20
1pc x VW-AUDI-2+2
1pc x Fiat-3
1pc x PSA-2
1pc x GM-Daewoo-12
1pc x Benz-14
1pc x Chrysler-16
1pc x Quick-reference-guid
1pc x Packing-list
1pc x CD
1pc x Soft-cloth
1pc x Carry case
1pc x User manual
