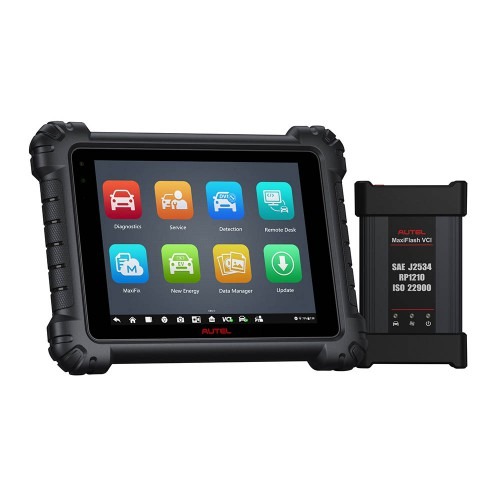

100% Original Autel Maxisys MS909 Full System Diagnostic Tablet With MaxiFlash VCI
| Place of Origin | CHINA |
|---|---|
| Brand Name | Autel Maxisys MS909 |
| Model Number | Autel Maxisys MS909 |
| Minimum Order Quantity | 1 |
| Price | 3795$ |
| Packaging Details | 10.0KG |
| Delivery Time | 1 work day |
| Payment Terms | T/T, Western Union, MoneyGram |
| Supply Ability | 1000 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model Name | Autel Maxisys MS909 | Origin | Mainland China |
|---|---|---|---|
| Quality | Superior | Item Type | Engine Analyzer , Code Readers & Scan Tools |
| Highlight | Full System Diagnostic Tablet,VCI Autel Maxisys MS909,100% Autel Maxisys MS909 |
||
Product Description
Product Description
Autel MaxiSys MS909 is an advanced diagnostic & analysis system based around a tablet and a VCI. It not only displays the relevant repairs gathered from experienced industry experts but also provides step-by-step guidance to ensure the repair is carried correctly and efficiently.
100% Original Autel Maxisys MS909 Full System Diagnostic Tablet With MaxiFlash VCI
Highlights:
1. One Year Free Update Online.
2. Newly Upgraded Autel Brand Tool with Powerful Hardware and Software.
3. Worldwide Vehicle Coverage: Support more than 80 US Domestic, Asian and European vehicles, including supercar.
Description:
Autel MaxiSys MS909 features a 10-inch touchscreen tablet with Android 7.0 OS powered by an Octa-core processor (2.3GHz Quad + 1.7GHz Quad), substantial 128GB built-in memory to provide diagnostic guidance and test components to confirm repairs. The MS909 features the new MaxiFlash VCI, a combination VCI and vehicle communication tool providing faster dual Wi-Fi vehicle and network communications. The MS909 features front and rear cameras and a rechargeable Lithium battery providing 8 hours of continuous use to ensure you always have the power to scan.
Features:
1. New VCI Protocols: D-PDU, DoIP/CAN FD, Mega CAN

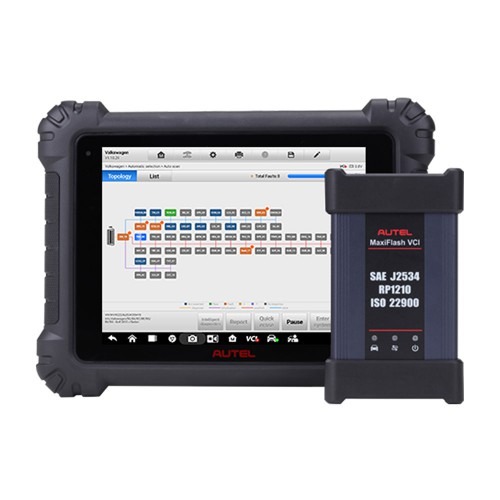

2. Topology Module Mapping: Color Coded All System Status Screen (on supported vehicles)
3. Relevant Cases: DTC Troubleshooting / Repair Tips Video Library
4. Repair Assist: Guided Procedures with DTC Analysis & Fault Code Solutions
5. Code-Related Technical Service Bulletins (on select vehicles)
6. License Plate Reader
7. ScanVIN: Barcode or Text Recognition with Camera
8. Secure Gateway Access: Authorized FCA SGM Access with AutoAuth Account (sold separately)
9. Enhanced Diagnostic Reports: PreSCAN & PostSCAN
10. Autel updates provide latest OE level coverage for more than 80 US Domestic, Asian and European vehicles, including supercar
11. Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding and programmin
12. Automatic system and software updates with real-time push message notifications via internet
13. Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and error
14. One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organize
15. Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes
Comparison Table for Autel MaxiSYS Series:
Advantages for MS909 in Summary:
1. With More Memory: 128GB Memory
2. With MaxiFlash VCI Interface: With The Updated J2534 VCI Compatible with DoIP, MEGACAN, and more!
3. Topology M Module Listing Organizes and Displays Modules by Communciation Network
4. With Faster processor
5. Does not Include a Docking Station
6. Does not Include Early OBD-II Adapters!
7. Android 7.0
Product Display:

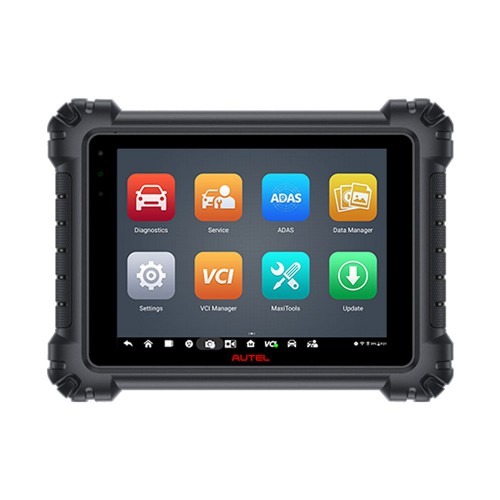

Autel MaxiSys MS909 Display:
1. 9.7" TFT-LCD Capacitive Touch Screen
2. Ambient Light Sensor – detects ambient brightness
3. Power LED - refer to Table 2-1 Power LED Description for details
4. Front Camera
5. Built-in Microphone
6. Speaker
7. Collapsible Stand – extends from the back to allow hands-free viewing of the tablet
8. Rear Camera
9. Camera Flash
10. Head Phone Jack
11. USB Port
12. USB Port
13. Mini USB Port - cannot be used with the USB Port simultaneously
14. HDMI (High-Definition Multimedia Interface) Port
15. Micro SD Card Slot
16. DC Power Supply Input Port
17. Lock/Power Button – long press to turn on and off the Display Tablet, or tap the power button to lock the screen
1. DC Power Supply Input Port
2. Vehicle Data Connector
3. Ethernet Port
4. Vehicle LED
Flashes green when the device is communicating with the vehicle system
5. Connection LED
Lights solid green when the device is properly connected with the display tablet via the USB cable
Lights solid cyan (blue/ green) when connected via Wi-Fi; lights solid blue when connected via wireless BT connection
6. Power LED
Lights solid green when powered on
Flashes red when VCI is upgrading
Lights solid red when system failure occurs
Lights yellow automatically at power up when VCI is self-testing
7. USB Port

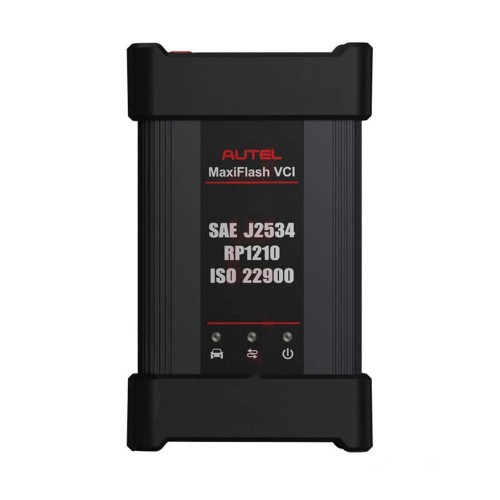

MaxiFlash VCI Display:
Highlights:
1. One Year Free Update Online.
2. Newly Upgraded Autel Brand Tool with Powerful Hardware and Software.
3. Worldwide Vehicle Coverage: Support more than 80 US Domestic, Asian and European vehicles, including supercar.
Description:
Autel MaxiSys MS909 features a 10-inch touchscreen tablet with Android 7.0 OS powered by an Octa-core processor (2.3GHz Quad + 1.7GHz Quad), substantial 128GB built-in memory to provide diagnostic guidance and test components to confirm repairs. The MS909 features the new MaxiFlash VCI, a combination VCI and vehicle communication tool providing faster dual Wi-Fi vehicle and network communications. The MS909 features front and rear cameras and a rechargeable Lithium battery providing 8 hours of continuous use to ensure you always have the power to scan.
Features:
1. New VCI Protocols: D-PDU, DoIP/CAN FD, Mega CAN
2. Topology Module Mapping: Color Coded All System Status Screen (on supported vehicles)
3. Relevant Cases: DTC Troubleshooting / Repair Tips Video Library
4. Repair Assist: Guided Procedures with DTC Analysis & Fault Code Solutions
5. Code-Related Technical Service Bulletins (on select vehicles)
6. License Plate Reader
7. ScanVIN: Barcode or Text Recognition with Camera
8. Secure Gateway Access: Authorized FCA SGM Access with AutoAuth Account (sold separately)
9. Enhanced Diagnostic Reports: PreSCAN & PostSCAN
10. Autel updates provide latest OE level coverage for more than 80 US Domestic, Asian and European vehicles, including supercar
11. Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding and programmin
12. Automatic system and software updates with real-time push message notifications via internet
13. Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and error
14. One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organize
15. Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes
Comparison Table for Autel MaxiSYS Series:
Advantages for MS909 in Summary:
1. With More Memory: 128GB Memory
2. With MaxiFlash VCI Interface: With The Updated J2534 VCI Compatible with DoIP, MEGACAN, and more!
3. Topology M Module Listing Organizes and Displays Modules by Communciation Network
4. With Faster processor
5. Does not Include a Docking Station
6. Does not Include Early OBD-II Adapters!
7. Android 7.0
Product Display:
Autel MaxiSys MS909 Display:
1. 9.7" TFT-LCD Capacitive Touch Screen
2. Ambient Light Sensor – detects ambient brightness
3. Power LED - refer to Table 2-1 Power LED Description for details
4. Front Camera
5. Built-in Microphone
6. Speaker
7. Collapsible Stand – extends from the back to allow hands-free viewing of the tablet
8. Rear Camera
9. Camera Flash
10. Head Phone Jack
11. USB Port
12. USB Port
13. Mini USB Port - cannot be used with the USB Port simultaneously
14. HDMI (High-Definition Multimedia Interface) Port
15. Micro SD Card Slot
16. DC Power Supply Input Port
17. Lock/Power Button – long press to turn on and off the Display Tablet, or tap the power button to lock the screen
1. DC Power Supply Input Port
2. Vehicle Data Connector
3. Ethernet Port
4. Vehicle LED
Flashes green when the device is communicating with the vehicle system
5. Connection LED
Lights solid green when the device is properly connected with the display tablet via the USB cable
Lights solid cyan (blue/ green) when connected via Wi-Fi; lights solid blue when connected via wireless BT connection
6. Power LED
Lights solid green when powered on
Flashes red when VCI is upgrading
Lights solid red when system failure occurs
Lights yellow automatically at power up when VCI is self-testing
7. USB Port
MaxiFlash VCI Display:
Specifications:

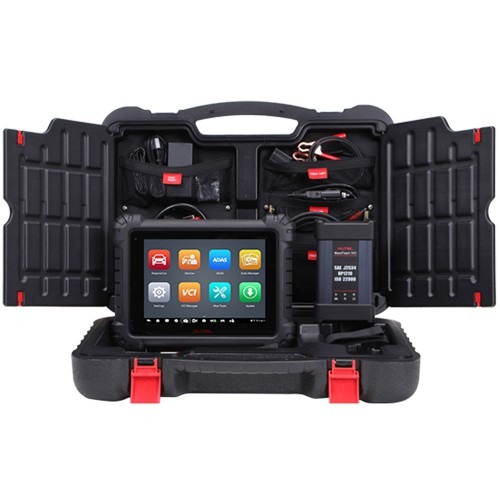

MaxiSYS MS909 Package List:
1pc x Maxisys MS909
1pc x MaxiFlash VCI
1pc x Main Cable V2.0
1pc x USB 2.0 Cable V2
1pc x AC/DC Adapter(12V)
1pc x Cigarette Lighter
1pc x Light Fuse 6x30mm 2 PCS
1pc x Clipper Cable
1pc x Quick Reference Guide
1pc x Packing List
1pc x Soft Cloth
1pc x Carrying Case
| Operating System | Android 7.0 |
| Processor | Samsung Exynos 8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53) |
| Memory | 4GB RAM & 128GB On-board Memory |
| Display | 9.7-inch TFT-LCD with 1536 x 2048 resolution & capacitive touch screen |
| Connectivity | * WiFix2 (802.11 a/b/g/n/ac 2x2 MIMO) * BT v.2.1 + EDR * GPS * USB 2.0 (TWO USB HOST Type A, ONE USB mini device) * HDMI 2.0 * SD Card (Support up to 256GB) |
| Camera | * Rear: 16 Megapixel, Autofocus with Flashlight * Front: 5.0 Megapixel |
| Sensors | Gravity Accelerometer, Ambient Light Sensor (ALS) |
| Audio Input/Output | * Microphone * Dual Speakers * 3-Band 3.5 mm stereo/ standard headset jac |
| Power and Battery | * 15000mAH 3.8V lithium-polymer battery * Charging via 12V AC/ DC power supply with the temperature between 0°C and 45°C |
| Input Voltage | 12V/3A Adapter |
| Operating Temperature | 0 to 50°C (32 to 122°F) |
| Storage Temperature | -20 to 60°C (-4 to 140°F) |
| Protocols | DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can(GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2) |
MaxiSYS MS909 Package List:
1pc x Maxisys MS909
1pc x MaxiFlash VCI
1pc x Main Cable V2.0
1pc x USB 2.0 Cable V2
1pc x AC/DC Adapter(12V)
1pc x Cigarette Lighter
1pc x Light Fuse 6x30mm 2 PCS
1pc x Clipper Cable
1pc x Quick Reference Guide
1pc x Packing List
1pc x Soft Cloth
1pc x Carrying Case
