2025 Autel Maxisys Ultra Full Systems Diagnostics Tool Plus EV Diagnostics Upgrade Kit EVDiag Box & Adapters for Battery Pack Diagnostics

Product Description

Autel Maxisys Ultra Full Systems Diagnostics Tool Plus EV Diagnostics Upgrade Kit EVDiag Box & Adapters for Battery Pack Diagnostics

Package Contains: Autel Maxisys Ultra Diagnostics Tool and EV Diagnostics Upgrade Kit

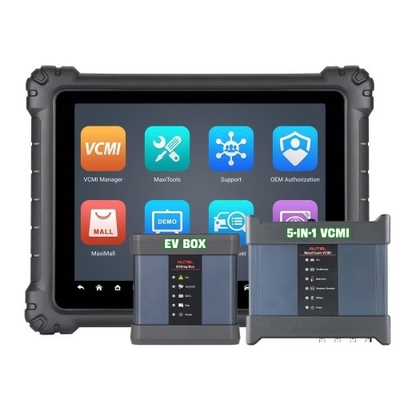

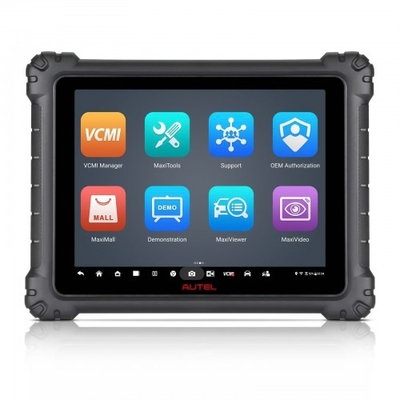

AUTEL MaxiSys Ultra Diagnostic Tool with EV Diagnonstic Upgrade Kit is advanced diagnostics for electric, hybrid, gas, and diesel vehicles. This Package provides a comprehensive analysis of electric and hybrid vehicles with expanded topology mapping and battery pack analysis that can be performed via OBD or directly with included specialty cables and jumpers. The Ultra screen displays detailed graphics and in-depth connection guidance to provide safe and secure testing. The 12.9-inch Ultra EV touchscreen tablet comes equipped with the MaxiFlash VCMI (5-in-1) measurement device, Bluetooth-enabled vehicle communication interface and J2534 pass-thru programming device, and a dedicated EVDiag box.

AUTEL MaxiSys Ultra:

• Advanced ECU Coding & Programming: Program, rewrite, code, and match new ECU after new module replacement. Code cars to unfold hidden features and activate high-end functions to improve vehicle performance.
• Expanded Compatibility: Support CAN-FD, DoIP bus protocol, D-PDU, J2534, RP1210 diagnostic standards.

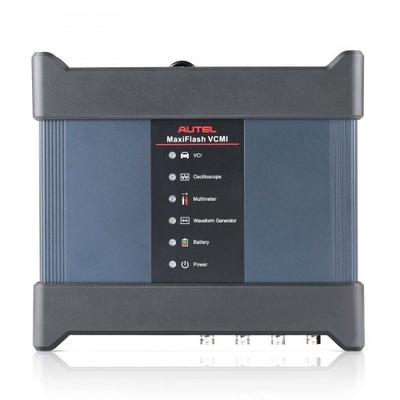

• 5-in-1 VCMI: Perfectly integrates 5 powerful devices into one scanner, saves not only your effort but also thousands of costs.
• MOTOR TruSpeed Repair: Intelligent Diagnostics2.0, Offer unique Repair Assist, DTC analysis, TSBs, Repair Tips, etc., giving repairers unprecedented convenience.
• Topology Mapping 2.0: Provides a color-coded topology display for all vehicle systems' relationship on one page, helping you better analyze the system faults.
• Pre & Post Scan: Makes it easy to document the vehicle's pre-repair and post-repair condition for insurance adjusters and service managers.
• 40+ Service Functions: Contains the most comprehensive services on 99% of vehicles.
• 10+ New Features: Support wider vehicle coverage, more frequent updates,2025 NEW Live data fusion, VIN/0d0m_e.ter Check, WIFI print reports, Pre & Post scan, FCA & Renault SGW, report management, remote expert (* Sending us an SN code is required for us to add you to our whitelist and enable this feature.) and extended features such as battery test and Videoscope (with MV105/108). Enhanced Remote Expert: The remote expert adds CAN FD DoIP/PDU/J2534/RP1210 protocol, making the model coverage wider; the server and point-to-point dual-channel connection method makes the network more stable and reduces communication delay. The scanner also supports protocols auto recognition, diagnostic reports import, and several communication methods such as audio and video for smoother communication.
• Wide Vehicle Coverage: Covers the most complete vehicle makes and models (updates to 2025 newest models).150+ car brands,10000+ cars!

EV Diagnostics Upgrade Kit:

• The kit includes EVDiag Box, leads, and adapters for specific electric vehicles to perform battery pack analysis, and high-voltage system diagnostics.
• The EVDiag Box is compatible with the MaxiSys Ultra, MS919, and MS909 tablets. If you already own one of these scan tablets, you can purchase the upgrade software and activate the EV diagnostic functions with EVDiag Box.

Autel Maxisys Ultra Functions:

All System Diagnostics

Autel MaxiSys Ultra mechanic tool can diagnose all systems including engine, transmission, brakes, steering, suspension, electrical, and other components that work together to make the vehicle operate correctly. Compared to using specialized OE manufacturer scan tools, with Autel MaxiSys Ultra car scanner you will end up saving a lot of money and effort due to:

• Better Compatibility: this mechanic tool can build a communicating bridge to 99% OBD2 cars’ accessible computers and modules. You don’t need the specialized professional auto scan tool that can only perform scans on limited systems.
• More Advanced Features: this diagnostic scan tool for all vehicles offers advanced features such as bi-directional control, read/clear DTCs, display graphic live data (can be merged) for your daily repair maintenance work, and even coding/programming capabilities to handle more complex repairs.
• More User-friendly Interface: the menu layout is among the most-straightforward of the automotive scanner diagnostic tool on the market. While, the OE dealership diagnostic tools may be complex and require specialized training.
• More Cost-effective: you can get the same level of diagnostic capabilities as OE manufacturer diagnostic tools at a lower cost.

Bi-directional Control: Experience High-Speed Diagnostics

Looking for an easy way to assess the health of your vehicle? With this bi-directional obdii car computer, you can directly send the command to activate the relays, coils, solenoids valves, actuators of your vehicle, and receive a response to see if they are functioning properly. This way, you don’t need to make time-consuming work, and quickly locate the faulty auto parts.

• For Example: “turn on the radiator fan - modulate the throttle - open/close windows - operate mirrors - test injector buz - turn on interior/exterior lights & sound horn - test injector - turn off ACC lane keeping assist system (LKAS) - turn on/off front & rear side ACM solenoid - turn on/off the fue.l pump - cycle the A/C - clutch on/off - test left clutch electromagnetic coil - test acceleration device - test oil pressure control - aim dynamic camera - calibrate vehicle level position - pump brake vacuum - test inlet & outlet valve - test open brakes - supply wheel speed sensor - test parking brake and more.”
• It is compatible with most vehicle models on the market, but the menu varies by make/model/year.

40+ Reset Service

With one-stop Intelligent Diagnostics, Autel Scanner MaxiSys Ultra provides techs with step-by-step repair guidance. It offers multiple repair guidance options: Technical Service Bulletin, DTC Analysis, Repair Assist, Repair Tips, Component Measurement, and Relevant Cases, making your work 200% easier than ever. Also, it has 40+ service functions to meet all the needs, helping your win more business.



ECU Programming & Coding

Autel MaxiSys Ultra can program & code more vehicles to re-flash the vehicle control modules, replace ECUs, update software, etc. Meantime, it supports online programming & coding for BMW (F & G chassis) and online programming for new chassis of Benz. With 10+ core functions (Active Test/Guided functions/Personalization/Modifications/etc.) in one, Autel Ultra offers techs maximum convenience and swift diagnostics.



AUTEL EV Diagnostics Upgrade Kit EVDiag Box & Adapters for Battery Pack Diagnostics

The EV Diagnostics Upgrade Kit includes EVDiag Box and adapters for specific electric vehicles to perform battery pack analysis. The EVDiag Box is compatible with the MaxiSys Ultra, MaxiSys Ultra ADAS, MaxiSys MS919, and MaxiSys MS909 tablets. EVDiag Box connects to MaxiFlash VCI or VCMI.
Autel Ultra series diagnostic tools can use this EVDiag Box to perform tests on EV battery packs.

Features:
• Includes EVDiag Box, Adapters for BMW, Tesla, VW and Breakout Leads
• Includes Carrying Case
• Compatible with Ultra series products to perform Battery Pack diagnostics
• State of Charge and State of Health analysis for true battery condition
• Easy Plug-In & Play: Simply plug the OBD2 socket of your diagnostic tool into the non-obd2 adapter, and then insert the non-obd2 adapter into the manufacturer-specific diagnostic ports on your OBDⅠ vehicles, then you'll build the tight and secured diagnostic
• Durable Construction: Autel EVDiag KIT adaptors will stand up to plenty of use, with equal quality as OE-manufactured ones. The terminals are made of high-density plastic. The connecting wire is very thick yet flexible and is reinforced at both ends.

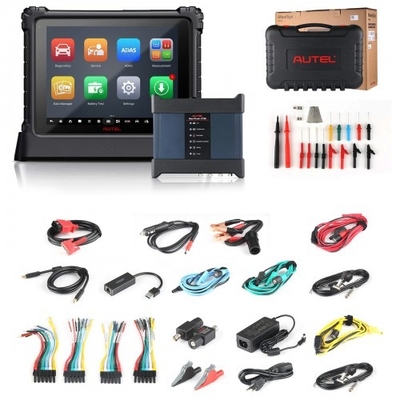

Package List:

1pc x Autel Maxisys Ultra Main Unit
1pc x MaxiFlash VCMI
1pc x Main Cable V2.0
1pc x USB 2.0 Cable V2
1pc x AC/DC Adapter(12V)
1pc x Cigarette Lighter
2pcs x Light Fuse 6x30mm
1pc x Clipper Cable
4pcs x Scope Test Lead
2pcs x Multimeter Test Lead
2pcs x Secondary Ignition Pickup
2pcs x Attenuator 20:1
1set x Breakout Lead 4x6 PCS
2pcs x Multimeter Probe
1set x Flexible Back-pinning Probe 2x2 PCS
1set x Back-pinning Probe - Red/Green/Blue/Yellow/Black 1x5 PCS
2pcs x Back-pinning Probe Screw
20pcs x Back-pinning Probe Replacement Needle
1set x Small Crocodile Clip 2x2 PCS
1set x Large Dolphin Clip 1x2 PCS
1pc x Quick Reference Guide
1pc x Packing List
1pc x Soft Cloth
1pc x Tool Box
1pc x Carrying Case
1pc x EVDiag Box
1pc x Adapter BPTC0101/01
1pc x Adapter BPTC0205/01
6pcs x Breakout Lead 1
1pc x Adapter BPTC0102/01
1pc x Adapter BPTC1101/01
6pcs x Breakout Lead 2
1pc x Adapter BPTC0103/01
1pc x Adapter BPTC1102/01
6pcs x Breakout Lead 3
1pc x Adapter BPTC0201/01
1pc x DB25 Snake Cable BPTJ0001/01
6pcs x Breakout Lead 4
1pc x Adapter BPTC0202/01
1pc x Packing List
1pc x EVDiag Box Main Cable BPTC0001/01
1pc x Adapter BPTC0203/01
1pc x Quick Reference Guide
3pcs x Breakout Lead Extension Cord
1pc x Adapter BPTC0204/01
1pc x Carrying Case
4pcs x Dual Banana Plug
