CG FC200 ECU Programmer Full Version with MPC5XX Adapter for BOSCH MPC5xx Read/Write Data on Bench Data Processing

CG FC200 ECU Programmer Full Version with MPC5XX Adapter for BOSCH MPC5xx Read/Write Data on Bench Data Processing



FC200 Highlights:

1. Bundle Deal with CG FC200 Full Version with All License Activated and MPC5XX Adapter.

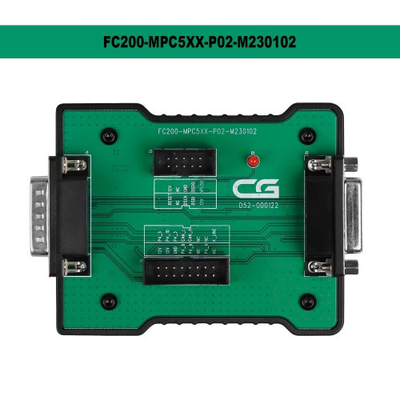

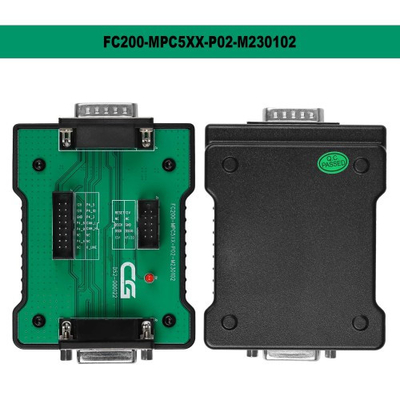

CG FC200-MPC5XX-P02-M230102 adapter can be used for MPC5X series clone without opening cover.
Support BOSCH MPC5xx platform mode ECU: MED9.1, MED9.5, MED9.5.10, ME9.0, EDC16CP31, EDC16CP35, EDC16C2, EDC16C8

2. Protect Original Car Parts
More than 98% of ECUs support BENCH mode and OBD mode, no need to open the cover and punch holes to protect the original car.

3. Intelligent Recognition
The "identification" function can help users better diagnose whether the ECU module is communicating and check whether the wiring is wrong. If the ECU module can communicate without damage and the wiring is correct, the recognition can be successful, and the chip information, hardware information and firmware information can be read out.

4.Module Clone
Supports ECU data reading and writing and module cloning, no synchronization matching, no online programming, data sub-regional burning, automatic verification, and maximum protection of chips and modules.

5. ISN Read and Write
Supports engine computer ISN code acquisition for all BMW series (including Mini), which is convenient for key matching and anti-theft maintenance.

6.VIN modification
Solve the problem of double VIN or VIN mismatch of vehicles, which is convenient for vehicle maintenance.

7. Data Processing
Support engine computer data analysis and modification for Audi/Seat/Skoda/Volkswagen models;
Support the shutdown of Bosch MED/EDC17 series engine computer anti-theft system;
Support the TPROT off function of Bosch VAG MEDC17 series, BMW/Mini MEVD17/EDC17 series, Hyundai/Kia EDC17/MED(G)17 series.

8. FC200 not only support BMW ECU but also support over three thousands of ECUs like KTAG, Kess, Dimsport etc.

9. There are 3 Operating Modes: CAN-BUS, Bench Mode and Boot Mode

10. Multi-Language: English, French, Simplified Chinese (Traditional Chinese, Spanish, Polish and Turkish need to pay)

11. Full Version with All License Activated, including Denso and China Delphi.
Free Update Online for One Year. Annual Fee will be $200/year after the first year.

12. With CG FC200-MPC5XX-P02-M230102 adapter can be used for MPC5X series clone without opening cover.
Supported ECU Models: ME9.0, MED9.1, MED9.5.10, EDC16C2, EDC16CB, EDC16CP31, EDC16CP35. More models are being upgraded.

CG FC200 Latest Updae Information:

CG FC200 V1.2.6.0 Registered Version New (2025.02.27)

New Functions:
1. "Three readiness monitors not ready" function:
DELPHI: MT22.1, ME22.1.1, MT22U
Jiangling/Foton/Great Wall: EDC17C81/EDC17C63/EDC17C53
Jaguar Land Rover: MED17.0.1, MED17.0, MED17.9.7, MED17.9.8, MED17.9.9, MED17.8.31, MED17.8.32
Fiat: ME17.3.0

2. ECUs with newly added checksum: MT20U, MT22U, MT20U2, MT22.1, MT22.1.1
3. M7, ME7.8.8 added the function of modifying CALID code
4. Added Wuling SIM2K-D51 module, and supports verification function, VIN modification and three readiness monitors not ready functions
5. Added Wuling SCE60 module
6. Added Hyundai SIM2K-47 module
7. Added ECUs with VIN modification function:
Marelli ECU: 8GMK, 8GML, 9GC
Bosch ECU: ME7.4.5, M7.9.8

8. Added ECUs:
Volkswagen: simos12.1
Hyundai Kia: MEDG17.9.8

Bug fixes:
1. Optimized the read and write functions of ME17.9.23 and ME17.9.21.1, EDC17C69
2. Fixed the problem of some DCM7.1APs failing to read and write PFlash
3. Optimized three readiness monitors not ready of Wuling SIM2K-51.4

FC200 V1.2.5.2 Registered Version (2025.01.18)

New Functions:
1. Added three ECUs with unready functions for domestic models:
Silver housing: ME17, ME17.8.8, MED17, MED17.8.10, MED17.8.2, MED17.8.21
Black housing (Black): ECU6.1, ME17, ME17.U.6, UP6
2. Added three ECUs with unready functions for Hyundai Kia: MEG17.9.12, MEG17.9.13, MEG17.9.2, MEG17.9.21, MEG17.9.8, ME17.9.1, ME17.9.11, ME17.9.11.1, ME17.9.21, ME17.9.21.1, MED17.9.30, MED17.9.8, EDC17CP14, ME17.9.8
3. Added Jinbei Lingdian ECU and supports VIN change and three unready functions: LINCONTROL LEC4A, LINCONTROL STC-213
4. Added Volkswagen Skoda ME7.5.20 three unready and VIN change functions
5. Chery ME7.9.7 added ExtFlash verification algorithm
6. Added Bosch ECU: UP6 TC1728, MED17.8.21, ME17.9.8
7. Added Huasong N20 model and supports VIN code change
8. Added BOSCH VIN change ECU: MEG17.9.13, ME17.9.1, EDC17CP48, EDC17C69, EDC17C83, ME17.3.0, EDC17C10, EDC17C58, ME17.0.3, EDC17C70

Bug fixes:
1. Fixed the issue of ME17/ME17.U.6/ECU6.1 failing to modify VIN
2. Optimized the verification algorithm of M7/ME7.8.8/M7.9.7/SIM2K-51.4
3. Fixed some bugs and optimized software performance

FC200 V1.2.5.1 Registered Version (2025.01.15)

New Functions:
1. Added Wuling SIM2K-51.4 read/write, VIN modification, and three unready functions
2. Added Jinbei Lingdian TR40 read/write, VIN modification, and three unready functions
3. Added three unready functions of Volkswagen ECUs: MED17.1.6, MED17.1, MED17.5, MED17.5.1, MED17.5.2, ME17.5.22, MED17.1.10, MED17.5.20, MED17.5.25, MED17.5.5, EDC17CP14
4. Added three unready functions of BMW N20/N55/B38/N13 ECUs: MEVD17.2.5, MEVD17.2.4, MEVD17.2.9, MEVD17.2.P, MEVD17.2, MEVD17.2.6, MEVD17.2.G, MEVD17.2.K, MEVD17.2.3
5. Added verification function ECUs: ME7, ME7.8.8, ME7.9.7, ME7.9.71, M7.9.7, M7.9.7.1, ME7.5.20

Bug fixes:
1. Fixed the problem of failure to write PFlash data in some ME17.9.64
2. Fixed the problem of failure to backup data of Honda Keihin KEIHIN series ECU
3. Fixed the problem of PFlash verification failure of Hyundai Kia CPGDSH2.26.1
4. Fixed the VIN code change function for ME17.9.1, ME17.9.11, ME17.3.0, and EDC17C81
5. Fixed some bugs and optimized software performance

FC200 V1.2.5.0 Registered Version New (2025.01.06)

New Functions:
1. Added the "Three readiness monitors not ready" function of GM E37E38E39E39AE78E80E83E84 ECU
2. Added MELCO (Mitsubishi) series BENCH mode ECU:
MELCO E6T6xxxx MH8501F
MELCO E6TAxxxx MPC5746R
MELCO E6T85xxx MH8601 test
MELCO E6T8xxxx MH8115 test
MELCO E6T7xxxx MH8611 test
MELCO E6T86xxx MH8115 test

3. Added BOSCH (Bosch) BENCH mode ECUTCU:
MG1CS080 TC275TP test
INVCON2.3 TC1797
HV17.4.1 TC1797

4. Added the "Repair of Lovol engine duration" of data processing to Lovol ECU: EDC17C63, EDC17CV54
5. Added the BOOT mode read and write function for GM E83
6. Added the function of reading and writing DFlash, PFlash, Maps, and ExtEEPROM separately for Mercedes-Benz SIM271DE
7. Added the "Unlock" function of VOLVO MB279700-96xx
8. Added "Read Password" function in Hyundai Kia CPEGP2.10.1 boot mode
9. Bug fixes
Optimized the "Turn off anti-theft" function of EDC17C53, EDC17C63, and EDC17C81
Optimized Porsche SDI10.x ECU wiring diagram
Fixed the problem that Mercedes-Benz CRD3P.C0 and CRD3P.D1 can not be read and written
Fixed the problem that DCM2.5 failed to write PFlash
Fixed the problem that M7 failed to recognize but can read and write
Fixed the problem that VGS2-FDTC failed to recognize after the updated version
Optimized the process of M7.9.7, M7.9.7.1, ME7.9.7, ME7.9.7.1 to handle the "Three readiness monitors not ready" function
Fixed the problem that Honda 37820 SH7058 does not communicate with ECU after writing data

FC200 ECU Programmer Powerful Functions:

1. Original parts Protection
FC200 supports OBD and platform mode for more than 98% ecu and egs, no need to open shell, no punch, protect origianal parts of the vehicle.



2. Smart Identification
The "identification" function can help users diagnose whether the ECU module is communicating and check whether the wiring is wrong.
If ECU module is not damaged and can be communicated, wiring is correct and identification is successful, can read chip and firmware information.

3. Module Clone
Supports ECU/EGS reading& writing and modules clone, synchronization matching free, no need online programming.
Flash data by area, automatically check, protect chips and modules furthest

4. ISN Reading and Writing
Supports all BMW series (including Mini) ECU ISN code acquisition , convenient for all keys lost matching and anti-theft fault maintenance.

5. VIN Writing
Solve the problem of double VIN or VIN mismatch of vehicles, convenient for vehicle maintenance.

6. Data Processing
Support data analysis and modification for the 4th and 5th generations of Audi/Seat/Skoda/Volkswagen ECUs
Turn off anti-theft system for Bosch MED/EDC17 series ECU
TPROT off function of Bosch VAG MEDC17 series, BMW/Mini MEVD17/EDC17 series, Hyundai/Kia EDC17/MED(G)17 series.

FC200 ECU Programmer Software Display:

1. Interactivate Software Interface
brand-model-engine/gearbox-ECU interface structure to help users save time and find the operating directory accurately.



2. Built-in Model Search Function
Support ECU model and Bosch search by number, avoid the trouble of level selection, and enter the function interface as quickly as possible.

3. ECU Search
Take the BMW MSV90 ECU as an example, First select "BMW", selct "ECU" as the search condition, enter "MSV90",click the search button, and the ECU type will show up.
Same search procedure for Bosch ECUs.



4. Visualized Wiring Diagram
1:1 simulation, bright colors, to avoid wiring errors.






FC200 ECU Programmer Hardware:

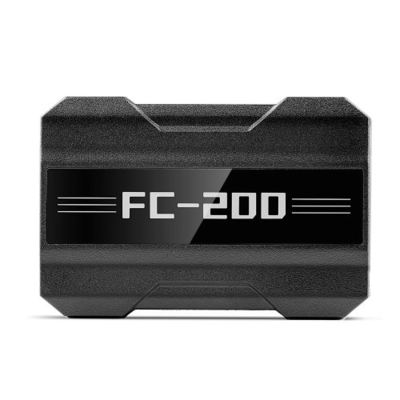

FC200 Main Unit

1. Integrated injection of polymer materials, professional customized internal circuit boards, national patent certification



2. Exquisite design, easy to carry, can shield surrounding interference signals, adapt to various operating environments



3. There are 3 expansion ports for peripherals, which are automatically diagnosed and identified. They are 12V power port, USB port and DB15 port.The DB15 port can be connected to a free-dismantling adapter and OBD cable.



FC200 Adapters

1.Vehicle-grade wiring harness, made of synthetic metal, has excellent internal conductivity, and can be used continously for 10,0000 times.



2. Tight design, seemless connection between ECU and host to ensure continuours communication and excort your operation



3. Equipped with B-type, C-type, D-type, F-type and G-Type pin interfaces, suitable for many types of ECU and EGS



OBD2 Cable

FC200 obd2 cable mainly suitable for BMW B48/B58 ECU at present, read ISN via OBD without disassembly.
110cm, made of synthetic material, resistant to high temperature water-proof, anti-corrosion is designed according to OBD port of the vehicles, built-in anti-falling buckle make connection stable

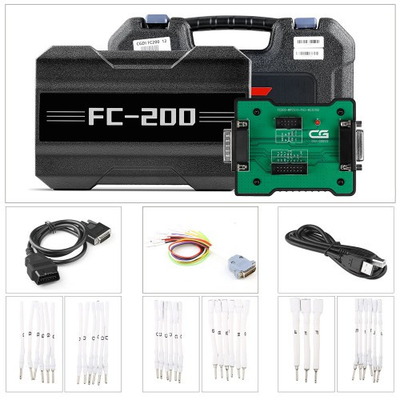

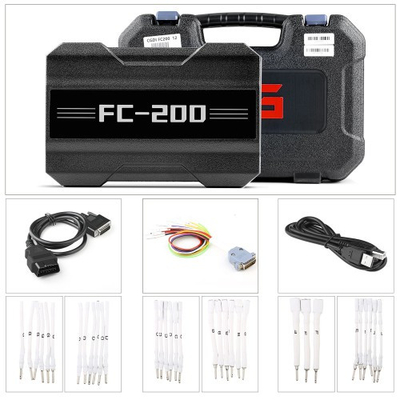

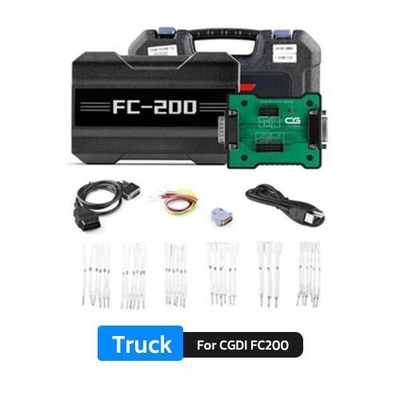

CG FC-200 Package:

1pc x CGDI FC200 Host
1pc x OBD Cable
1pc x Jumper
1pc x USB Cable
6pcs x G-type Adapter Cable
3pcs x F-type Adapter Cable
6pcs x E-type Adapter Cable
6pcs x D-type Adapter Cable
6pcs x C-type Adapter Cable
6pcs x B-type Adapter Cable
1pc x MPC5XX Adapter
