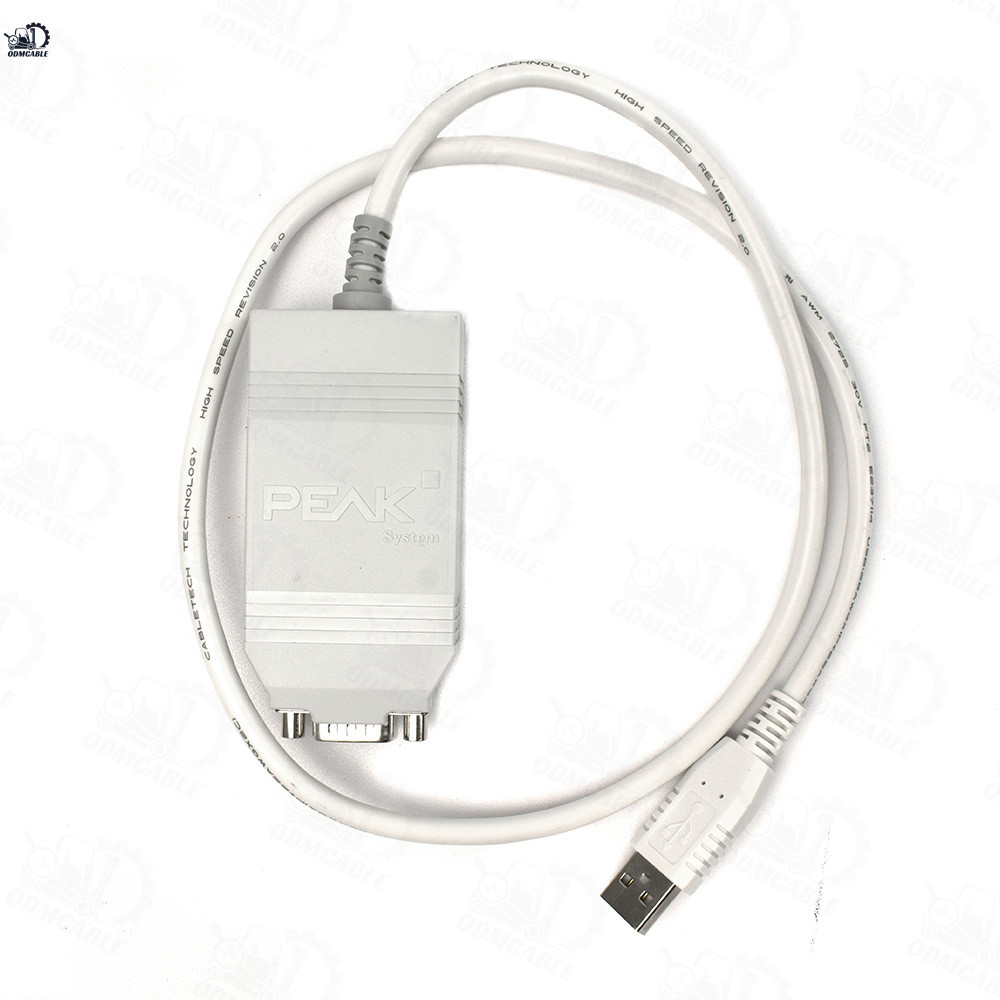

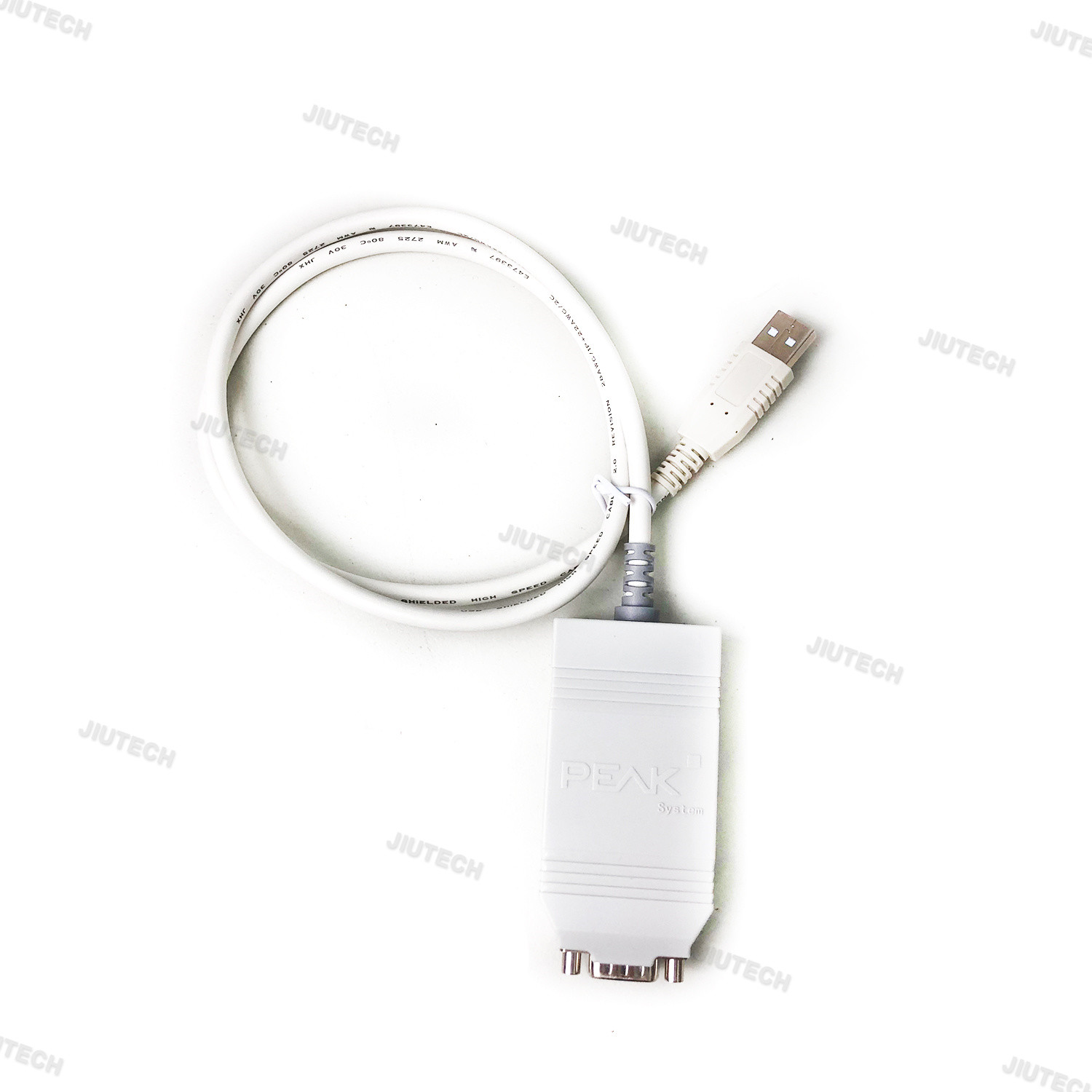

Automotive Diagnostic Tool For PEAK Pcan-Crown USB PK For Crown RCAN -USB CAN Interface Crown Forklift Diagnostic Tool
| Place of Origin | CHINA |
|---|---|
| Brand Name | JIUTECH-Lucy |
| Model Number | For Crown |
| Minimum Order Quantity | 1 |
| Packaging Details | PACKAGE |
| Delivery Time | 1 work day |
| Payment Terms | T/T, Western Union, MoneyGram |
| Supply Ability | 1000 |
Product Details
| Model: | For Crown CAN Interface | Model Name: | For Crown |
|---|---|---|---|
| Origin: | Mainland China | Quality: | Superior |
| Software Version: | Version 5.33 | Supports Models: | All Crown Forklifts |
| Name: | For Crown Diagnostic Tool | Item Type: | Car Diagnostic Cables And Connectors |
| Automotive Diagnostic Tool: | For Crown RCAN -USB CAN Interface | Hardware Version: | For Pcan Crown CAN |
| Key: | Crown Forklift Scanner Tool | Key 1: | Crown Repair Software |
| Item Name: | For Pcan Crown Diagnostic Tool | Key 2: | Repair Manual Crown Parts Catalog And Service |
| Brand Name: | Auto Forklift For Crown Scan Tools | ||
| Highlight: | PEAK Pcan Crown USB CAN Interface,PK Crown USB CAN Interface,Automotive Diagnostic Tool For Crown |
||
Product Description
For Crown CAN Interface PEAK PCAN-USB Crown Forklift Programming Interface Diagnosis Cable
|
Package List : |
|
1* Crown USB adapter |
Please Note: if you need repair manual need to be purchased separately
supports models:All crown forklifts
Description:
The PCAN-USB adapter enables simple connection to CAN networks. Its compact plastic casing makes it suitable for mobile applications.
The opto-decoupled version guarantees galvanic isolation of up to 500 Volts between the PC and the CAN side.
The package is also supplied with the CAN monitor PCAN-View for Windows and the programming interface PCAN-Basic.
Technical Specifications :
Adapter for the USB connection (Full-Speed mode, compatible with USB 1.1, USB 2.0, and USB 3.0)
High-speed CAN connection (ISO 11898-2)
Bit rates from 5 kbit/s up to 1 Mbit/s
Time stamp resolution approx. 42 µs
Compliant with CAN specifications 2.0A (11-bit ID) and 2.0B (29-bit ID)

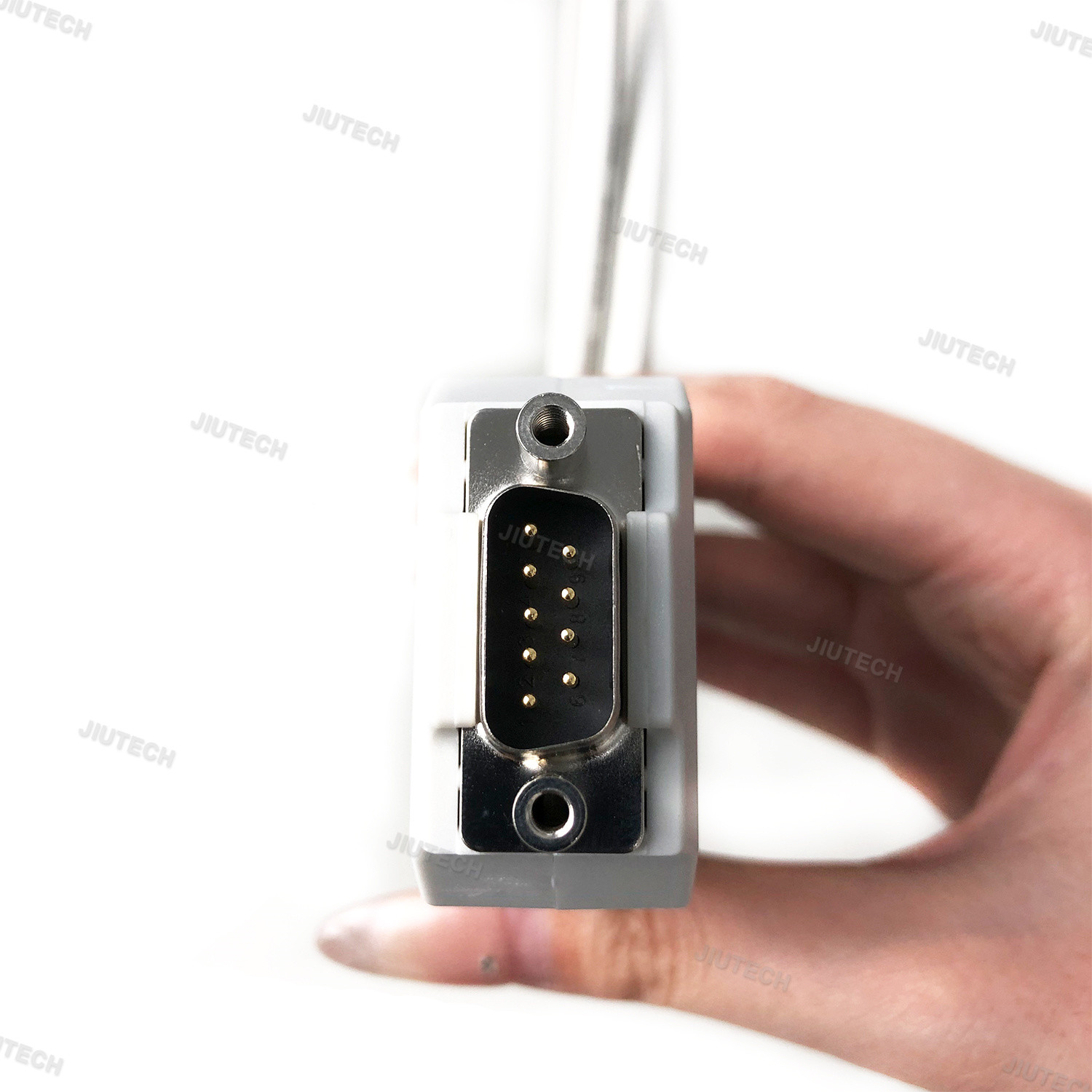

CAN bus connection via D-Sub, 9-pin (in accordance with CiA 106)
N-XP SJA1000 CAN controller, 16 MHz clock frequency
N-XP PCA82C251 CAN transceiver
Galvanic isolation on the CAN connection up to 500 V (only for IPEH-002022)
CAN termination can be activated through a solder jumper
5-Volt supply to the CAN connection can be connected through a solder jumper, e.g. for external bus converter
Voltage supply via USB
Extended operating temperature range from -40 to +85 °C (-40 to +185 °F)We also have other forklifts: linde , still, yale hystre, cat, mitsubishi, judit
Can be installed in a computer
The following is the installed interface diagram:
