Liebherr Diagnostic Kit Truck DB9 to 9-Pin Deutsch Cable Canfox for Heavy Duty Vehicle Monitoring System

Place of Origin CHINA
Brand Name JIUTECH-Lucy
Model Number DB9 to 9-Pin Deutsch Cable
Minimum Order Quantity 1
Packaging Details PACKAGE
Delivery Time 1 work day
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 1000
Product Details
Software Version: Sculi Liebherr Diagnosis Software Model Name: DB9 To 9-Pin Deutsch Cable
Hardware Version: Last Liebherr Diagnostic Tool Origin: Mainland China
Quality: Superior Type: Auto Forklift Diagnostic Scanner
Name: Sculi Liebherr Diagnosis Software Laungages: Multipe Languages Support
Item Type: Forklift Diagnostic Interface With Software Key: Liebherr Canfox
Voltage: 12v/24v Item Type: Liebherr Diagnostic Kit
Functions: Error Memory, Programming, Configuration Software: LiDIA 2.12, KADIAS
Supported ECUs: ECU2, ECU3, EDC17, VIU1 Supported Models: Wheel Loaders, Telehandlers
Voltage: 12V, 24V Language: English, German, French
Special Feature: CANfox Interface
Highlight:

Truck Liebherr Diagnostic Kit

,

Liebherr Diagnostic Kit Deutsch Cable
Leave a Message
Product Description

LIEBHERR DIAGNOSTIC KIT (CANFOX)




INCLUDED

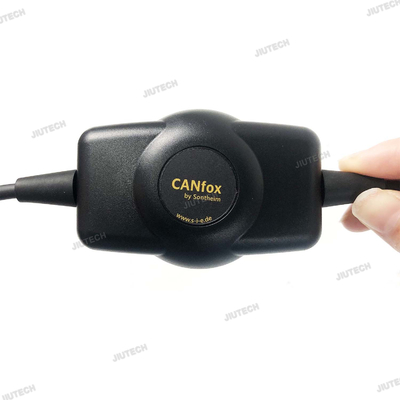

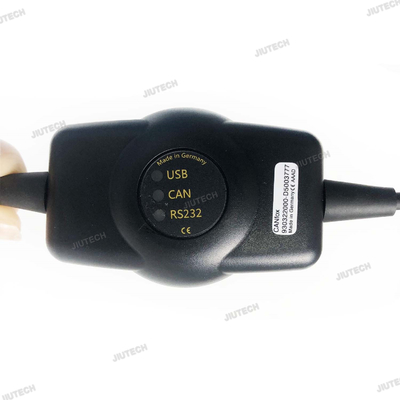

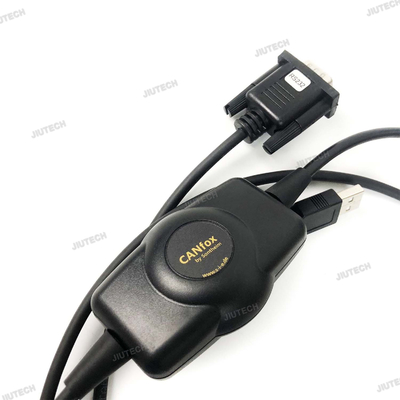

• CANfox interface

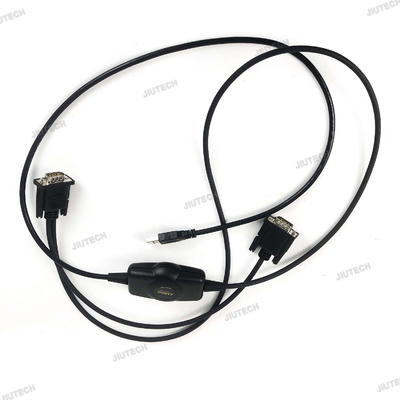

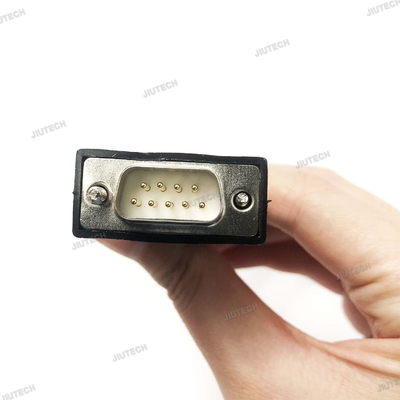

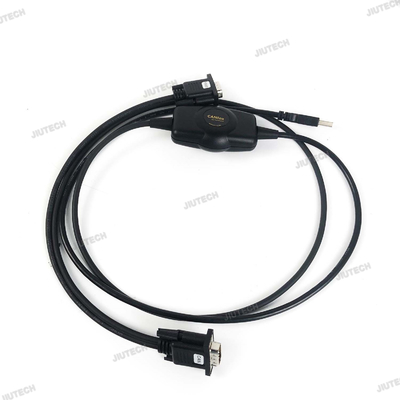

• DB9 to 9-pin Deutsch cable------Optional






COMPATIBLE SOFTWARE



• LiDIA 2.12 [2024]




DESCRIPTION



LiDIA - an intuitive and user-friendly engine diagnostics tool, which requires no configuration and reduces the complexity of diagnostic procedures to the essentials. .




Supported ECUs:



• ECU2, ECU2-HD, ECU3, EDC17, VIU1.



Supported languages: English, German, French.







CANfox - offers RS232 and an electrically isolated CAN interfaces for mobile use with a laptop or stationary as a desktop device.




KADIAS - service tool makes it possible to access all electronic control units on the vehicle.




Supported functions:



• Error Memory (trouble codes)

• Functional Diagnostic

• Configuration

• Programming (ECU,indicating instrument)

• Mainetenance (service, service counter reset)

• Documentation

• PRO (factory settings, operation hours counter reset)




Supported models:




WHEELLOADER:

• 349-03/04/06

• 349-07

• 351-01/02/03

• 351-04/05/06/07

• 351-14/15/16/17

• 352-03/04/11

• 352-13/14/15

• 353-20/21/22/23/24/25/26

• 355

• 357-00/01

• 357-1X

• 358-00/01

• W01/W02




TELEHANDLER:

• 407-01/02

• 408-01

• 415-01/03/05

• 415-04/06

• 415-11/13/15

• 415-22/24/26/27

• 415-32/34/36/37/38

• 415-42/44/46/47/48

• 416-01/03/05/07

• 416-02/04/06/08

• 416-11/13/15

• 416-12/14/16/18

• 416-22/24/26/28

• 416-32/34/36/38/39

• 416-42/44/46/48/49

• 418-01/02

• 418-12

• 418-22

• 418-3X

• TL48

• TL48 2.0

• TL48 2.0 (T5)

• TL41 (T5)

• TL41e
