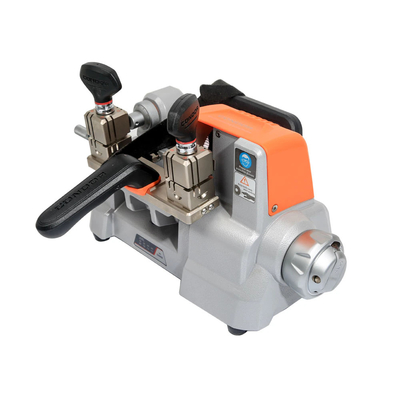

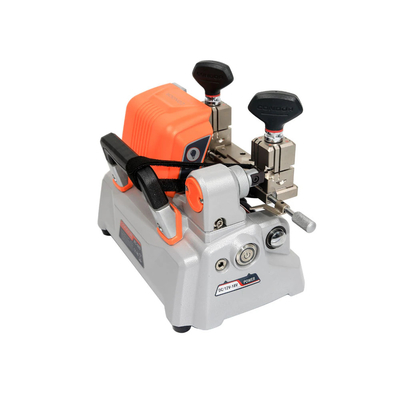

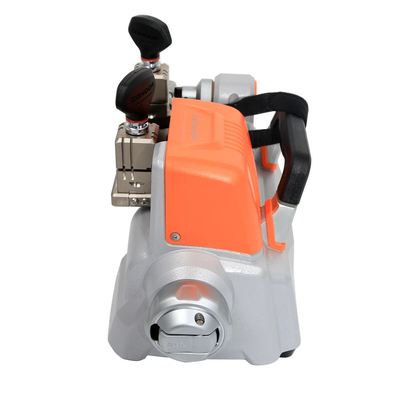

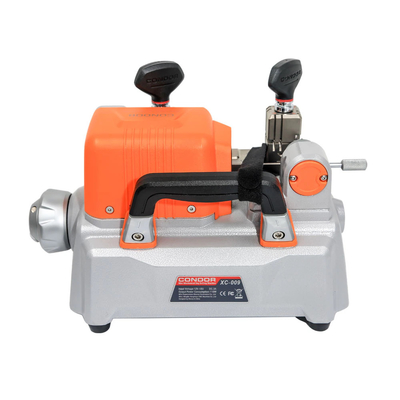

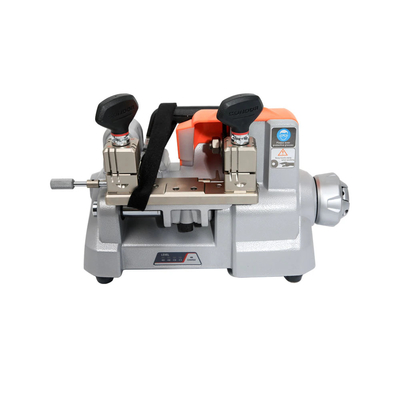

Xhorse Condor XC-009 XC009 Key Duplicating Cutting Machine with Battery for Single-Sided and Double-sided Keys

Product Description

Highlights of Condor XC-009

• Battery Indicator

The screen clearly shows the battery level for your convenience.

• Wide Clamp Spacing

The space between 2 clamps is 95mm, which is able to cut keys without detaching the key fob.

• Revolving Handwheel

A special structure is designed for users to easier complete the lateral cutting feed. Just unscrew and turn the small concealed handwheel to control the clamp sliding table to go left or right.

• LED Light

The LED light is ideal for checking key cutting status clearly, and also ensuring the regular works in the dark.

• Micro-adjust Guide

Adjust the Micro-adjust slide to align the cutter with key cutting guide. Equipped with the micro-adjustable guiding device to guarantee precision cutting.

• Ergonomic Design

Ergonomic lifting handle, smooth and effortless. Its best ergonomic solution often helps users improve productivity. By its excellent design to allow for good posture, less exertion, fewer motions, the key cutting works become more efficient.

• Light weight

Small volume, light weight, easy to carry. A perfect tool for small shops, vans, and outdoor services.

• Built-in lithium battery

Super Long Endurance Ability: Built-in lithium battery-powered (should cut dozens of keys per charge). 60-100 keys cut in one charge


Functionality

It can cut all kinds of flat cylinder keys for most bikes, cars & door locks.

Battery

In one single charge, XC009 can cut up to 60-100 keys.
Condor XC-009 XC009 comes with built-in Battery:

Support Types:

>

Thoughtful design for accurate key duplicating on CONDOR XC-009

Advantage:
Small volume, lightweight, easy to carry.

High Precision:
With adapters guide equipment, guarantee high cut precision.

Wide Applicability:
Equipped with 4-side clamp, flexible exchange among 4-side. Different sides for different features keys, cut kinds of special keys, wide applicability.

Safe & Low Noise:
Emergency switch is able to turn off the power in emergency and start the machine while it’s safe.
Low noise DC brushless motor.

Super Long Endurance Ability:
Build-in 2500mA battery cuts 60-100 keys continuously.

Solid & Durable:
Aluminum structure, processed by DMG precise machine which is imported from Germany.

Humanized Design:
Battery value remind function, hidden hand wheel, big clamp space, cut the big plastic cover keys that don’t need to tear down, streamline handrail design, comfortable operation experience.

Motor rotation speed: 1800rpm

Clamp space: 95mm
Working temperature: 0-50℃

Humidity: 10-90%

Machine size: 285 x175x180mm

Power: 200W

Power parameter: 12V-18V/3A

Motoe Torque: 1.2 Nm

A special structure is designed for users to easier complete the lateral cutting feed. Just unscrew and turn the small concealed hand wheel to control the clamp sliding table to go left or right. Thanks to the concealed structure, it is easy to pull out the small hand wheel when you need, and put it back when you don't.

Condor XC-009 Detail Display:









Condor XC-009 Key Cutter Accessories:
Cutter (Side bitting key machining cutter)
Key Cutting Guide (Slot shape the same wtih plats cutter, precisely synchronize key machine track)
Brush (Cleaning the machine)

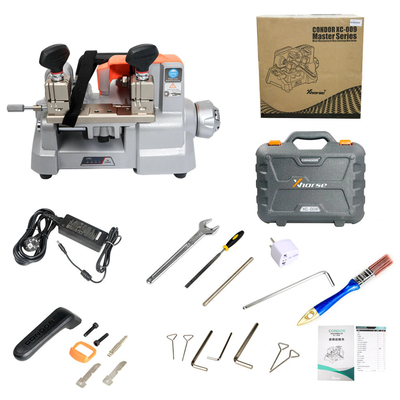

Condor XC 009 Package List:

Main Body*1 Control handle*1 M6 screw*2 Plastic Box*1 Key spacer*2 2.5mm Allen wrench*1 3mm Allen wrench*1 4mm Allen wrench*1 5mm Allen wrench*1 Tool change rod*1 19mm open spanner*1 Tool for polish*1 1.2mm nozzle cleaner*2 1.7mm nozzle cleaner*2 Power Adapter*1 Brush*1
