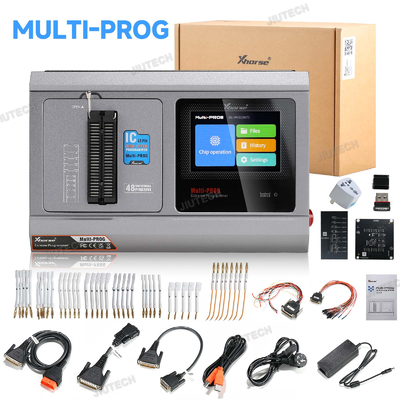

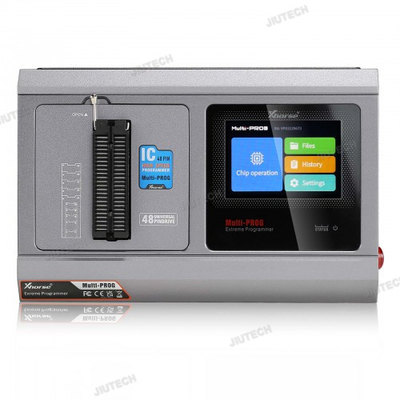

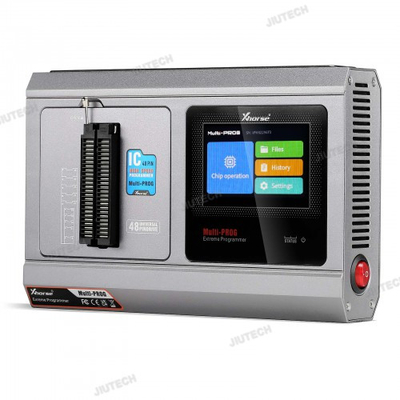

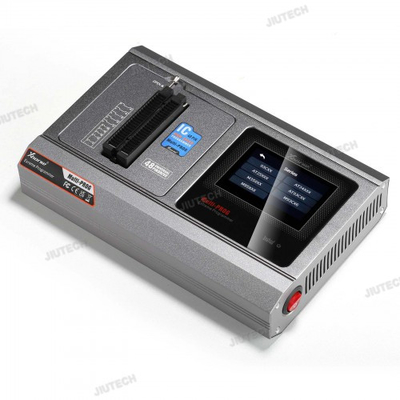

Xhorse Multi Prog Programmer ECU Gearbox with Free MQB48 License RH850 Expert Mode Batch Write Chips

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xModel Name | Xhorse Multi Prog Multi-Prog | Hardware Version | Xhorse Multi Prog Multi-Prog |
---|---|---|---|
Origin | Mainland China | Quality | Superior |
Shipping | Fast And Safe | After-sale Service Timely | Timely |
Performance | Excellent | ||
Highlight | RH850 Prog Multi-Prog Programmer,ECU Gearbox Multi Prog Programmer,MQB48 License Multi Prog Programmer |
Product Description
Read, Write and Clone ECU
Read, Write and Clone Gearbox TCU
The sale price only for EU,US and UK customers now. If other countries, we will contact you to pay extra accoring to your country.
The XDMPG0GL Multi-Prog ECU Programmer is a versatile tool meticulously designed by Xhorse to access and modify crucial data stored in a vehicle's Engine Control Unit (ECU) and Transmission Control Unit (TCU). From engine maps to transmission parameters and immobilizer settings, the XDMPG0GL ECU Programmer empowers users with unprecedented control and customization.
PN: XDMPG0GL
Software: V1.1.5.0, update online
Firmware: V1.2.1 update online
Database version: V22
Lifetime free update online.
Language: English, Chinese
Xhorse MultiProg Feature:
1.Update version of VVDI Prog programmer |
2. Free software and firmware update timely. |
3. Read, Write and Clone ECU |
4. Read, Write and Clone Gearbox TCU |
5. Read EEPROM, ECU, MCU |
6. Read and Write Bosch ECU ISN with new Bosch ecu adapter |
7. Get free BMW ISN read function and NEC, MPC, Infineon etc chip continously update service |
8. With built-in free MQB48 license. Bind Multi-prog and VVDI2 (full version) or key tool plus to the same Xhorse app account to use MQB48 NEC35XX function. |
9. NEW! Add VAG MQB RH850 dashboard processor (need seperate RH850 cable for multiprog) |
Free download Xhorse Multi Prog software
Xhorse Multi-Prog User Manual
Other Features:
Support R&W lots of chips, include MC9S08 series, MC68HC(9)12series, MC9S12series, V850series, H8Xseries, R8Cseries, PCF79XXseries and most eeprom chips etc .
Support chip data verify, checkblank function
Support data file compare function
Free Pin code calculation service by Dump for various models
Support Read and Write BMW N20, N55 ECU (show ISN directly)
Stable Read and Write MC9S12XE series chips (5M48H/ 1N35H/ 2M53J/ 3M25J etc.)
Support renew PCF79XX remote, currently support BMW E/F series (Please Note PCF79XX adapter is optional)
Has the largest database of connection diagram
Reserve Ports: For future update
Supports Repair Porsche 12V lithium battery and BYD Lithium Battery (MC9S12XET256)
Supports Expert mode: batch write chips. vvdi prog only write a single chip at a time

Xhorse Multi-Prog Functions:
Read, Write and Clone ECU
BMW B48/B58 reading ISN
BMW MSD80/81 /85/87/MSV90
Mercedes-Benz SIM271
BMW MSV80
VW BOSCH MED17 Series ECU
BMW N13/N20/N55/B38/TC17X
Support Marelli, Siemens, Delphi and other ECU manufacturers
Read, Write and Clone TCU
Volkswagen Audi Skoda DQ200, DQ250, VL381 TCU etc.
Porsche DL501 TCU
Ford Dodge and other MPS6 series TCU
BMW DKG, Mercedes-Benz VCS and other models TCU
Vehicle Engine Data Calculation and Processing
MEDl 7/EDC17 data processing
Support Flexible Extension of Third-party Plug-ins
Support the development of third-party plug-ins and provide data processing and modification services
Read & Write MCU
Support reading and writing MCU of various brands including Renesas, Motolora, N-X-P, Infineon, etc.
Support certain encrypted chip reading and writing
Read & Write Vehicle Immo Module
Support Porsche, Land Rover, Mercedes-Benz EZS, vocom,
VW MQB dashboard, AUDI BCM2, etc.
Support modules including BMW EWS, CAS1 CAS2CAS3CAS4+, FEM BDC, etc.
Support other common immo modules
Note: Compatible with Xhorse solder-free adapters and cables
Read & Write EEPROM
Support EEPROM and FLASH
Read & Write Vehicle Dashboard
Support dashboard of VW, Honda, Hyundai, Kia, etc.

Xhorse Multi Prog vs VVDI Prog
VVDI Multi Prog Specifications:
Operating system: Linux
Processor: ZYNQ7020 Dual-core Cortex A9 +FPGA
Memory: 256M* 2 DDR+64M NOR FLASH
Display: 3.5-inch
Input voltage: 15V/4A
Working current: 300mA(14V)
Working temperatures: -20-50℃
Storage temperatures: -30-65℃

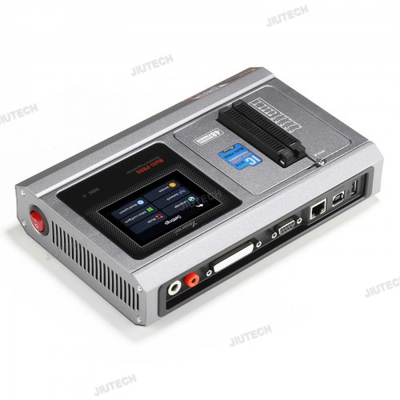

External interface: USB/RJ45
Dimensions: 233*150*54mm
Xhorse Multi Prog ECU and TCU List (Keep Updating)
ECU (Bench Mode)
VAG
1. SIMOS PCR2.1, EDC17c64
2. BOSCH: MG1CA811
3. BOSCH: MED17.1.6, MED17.1.21, MED17.1.61, MED17.5, MED1 7.5.1, MED1 7.5.2, MED1 7.5.5_TC1 766, MED1 7.5.5_TC1 767, MED1 7.5.20, MED1 7.5.21, MED1 7.5.25
4. BOSCH: EDC17C46, EDC17C74, EDC17CP24, EDC17CP44, EDC17CP54, EDC17U01, EDC17U05
5. BOSCH: MG1CS002一SPC5777, MD1 CP014_TC298TP, MG1 CS001_SPC5777, MG1 CS011 _SPC5777, MG1CS002_TC298TP, MD1 CP004_TC298TP, MD1 CP004一SPC5777, MG1 CS111 一SPC5777, MD1 CS004_TC298TP, MG1 CS008_SPC5777, MG1CS008_TC298TP
6. CONTINENTAL: SIMOS8.3x, SIMOS8.4x, SIMOS8.5x, SIMOS8.6X
BMW
1. CONTINENTAL: MSD80, MSV80, MSD81, MSD85, MSD87, MSV90
2. BOSCH: MD1CP002_SPC5777, MG1 CS003_SPC5777 (B48, B58), MG1 CS201 _TC298TP (B38, B48, B58), MD1CS001_TC298TP, MG1 CS024_TC298TP(B48, B58), MD1CP032_TC299
3. BOSCH: EDC1 7CP09_Fxx_TC1 796, EDC1 7C50_Exx, EDC1 7CP45_Exx, EDC17C06, EDC17C56
4. BOSCH: MEI 7.2.1
5. BOSCH: MEVD1 7.2.3, MEVD1 7.2_Fxx, MEVD1 7.2.4_Fxx(N20), MEVD1 7.2.6_Fxx, MEVD17.2.9_Exx, MEVD17.2.G, MEVD17.2.G (N55), MEVD17.2.H, MEVD1 7.2.6_Fxx, MEVD17.2.P_Fxx, MEVD17.2.K
6. OSCH: MEV17.2_TC1766, MEV1 7.2_TC1 767, MEV17.2_TC1796, MEV1 7.2.1
Mercedes Benz
1. CONTINENTAL: SIM271 DE, SIM271 KE
2. BOSCH: MEI 7.7, MED17.7.3.1, MED1 7.7.1, MED1 7.7.2, MED1 7.7.3, ME1 7.7.8
3. BOSCH: EDC17CP10, EDC17CP57, EDC17CP46, EDC17CP60
4. BOSCH: CRD3x.x_TC1793, CRD3x.x_TC1 797
5. BOSCH: MD1CP001-SPC5777, MG1 CP002_SPC5777, MD1CS006_TC298TP
GM
1. DELPHI: DCM3.7AP
2. DELCO: E37, E38, E39, E39A, E67, E78, E80, E82, E83, E83A, E83B, E84, E87, E92, E98
Nissan
1. DENSO: 23740-3Nxxx_Gen1 SH72531
2. BOSCH:EDC17C84
Hyundai/Kia
1. BOSCH: ME17.9.11, MEI 7.9.11.1
2. BOSCH:EDC17C53
3. BOSCH: MEG17.9.1 2_ECU
Ford
1. BOSCH: EDC17C70, EDC17CP65
2. BOSCH: ME17.0.3, ME17.8.5
vocom
BOSCH: EDC17CP48, EDC1 7CP48_ver2, EDC1 7CP22
Other
1. AM_ME1 7.8.5,DOO_ME17.8.5
2. BOSCH: MG1CA007, MEI 7.8.8_TC1728, ME1 7.8.8_TC1 728_HW2, ME17.8.8_TC1 767, ME1 7.8.31, ME1 7.9.52
3. BOSCH: EDC1 7C55, EDC1 7C1 0, EDC1 7C1 0_TC1 796, EDC1 7C1 0_TC1 797, EDC1 7CP42, EDC1 7CP14, EDC17c81
4. BOSCH: MEVD1 7.8.4
5. BOSCH: MED17.8.1 0_TC1 728, MED17.8.1 0_TC1 728_Hw2, MED1 7.8.1 0_TC1 767
6. BOSCH: MD1 CS01 8, MG1 CS026_SPC58, MG1 CS032, MG1CS163, MD1CS01 2, MD1CS089, MD1CS069, MD1CS005_TC298TP, MG1 CS01 5_TC277TP, MG1 CS01 6_TC275TP, MG1CS01 7_TC277TP, MG1CS01 8, MG1CS019, MG1CS088
7. CONTINENTAL: SID208, SID209, SID211, SID807EVO ⑧ DENSO: KH, ZY, SH70xx_275xxx-xxx
ECU (Boot Mode)
VW series
1. SIMOS PCR2.1, EDC17c64
2. BOSCH: MED17.1.6, MED17.1.21, MED1 7.1.61, MED17.5, MED1 7.5.1, MED1 7.5.2, MED17.5.5_TC1 766, MED1 7.5.5_TC1 767, MED1 7.5.20, MED1 7.5.21, MED1 7.5.25
3. BOSCH: EDC1 7C46, EDC1 7C74, EDC1 7CP24, EDC1 7CP44, EDC1 7CP54, EDC17U01, EDC17U05
4. BOSCH: SIMOS8.3X, SIMOS8.4x, SIMOS8.5x, SIMOS8.6X
BMW series
1. CONTINENTAL: MSD80, MSV80, MSD81, MSD85, MSD87, MSV90
2. BOSCH: EDC1 7CP09_Fxx_TC1 796, EDC1 7C50_Exx, EDC17CP45_Exx, EDC17C06, EDC17C56
3. BOSCH: ME1 7.2.1
4. BOSCH: MEVD1 7.2.3.MEVD17.2_Fxx, MEVD1 7.2.4_Fxx(N20), MEVD1 7.2.6_Fxx, MEVD1 7.2.9_Exx, MEVD17.2.G, MEVD17.2.G(N55), MEVD17.2.H, MEVD1 7.2.6_Fxx, MEVD1 7.2.P_Fxx, MEVD1 7.2.K
5. BOSCH: MEV17.2_TC1766, MEV1 7.2_TC1 767, MEV17.2_TC1796, MEV1 7.2.1
Mercedes Benz series
1. CONTINENTAL: SIM271 DE,SIM271 KE
2. BOSCH: ME17.7, MED17.7.3.1, MED17.7.1, MED1 7.7.2, MED1 7.7.3, ME17.7.8
3. BOSCH: EDC17CP10, EDC17CP57, EDC17CP46, EDC17CP60
4. DELPHI: CRD2.x_MPC556x
Nissan series
BOSCH: EDC17C84
GM series
1. DELPHI: MT80.MT80.1
2. DELCO: E37, E38, E39, E39A, E67, E78, E80, E82, E83, E83A, E83B, E84, E87, E92, E98
Hyundai/Kia series
1. DELPHI: MT86
2. DELCO: DCM6.2AP
Other
1. CONTINENTAL: SID208, SID209, SID211, SID807EVO, SID310
2. SDI21.1 ,SDI21.2,SDI21.3
3. BOSCH: ME1 7.3.0
4. MARELLI: 8DF, MM10JA
TCU (Bench Mode)
VW
DL382, VL381, DL501 Genl, DL501 Gen2, DQ200Dxx, DQ200-G2, DQ200-G2_PQ, DQ200-MQB, DQ250-MQB, DQ250
Exx/Fxx BMW series
GETRAG DKG 436 Genl, GETRAG DKG 436 Gen2
Mercedes Benz series
VGS-FDCT, VGS2-FCVT, VGS2-FDCT
Ford series
1. ETRAG MPS6GETRAG
2. DPS6, DC4
TCU (Boot Mode)
Ford series
DPS6, DC4
Other
ZF 9HP
Multi-Prog Software Overview:
Language: English
Database update online




MultiProg Update Log:
Software V1.1.5.0, Database V22
Database V22
2024-05-06 21:27:33
* Fix some issues with 9S12XE options
* Fix the CFLASH read/write exception of MPC574XX series options
Database V21
2024-05-06 10:35:55
* The AM29FXXX series adds a temporary unblock protection function
* Update the option SONATA(2009-2010)(S29CDO16J) wiring diagram in
* Fixed the EMS6104(AM29F400BB) option to erase the exception problem in
* Fixed bugs in TC2XX(JTAG) options in
* Repair ROEWE BMS(MPC5607B)read exception problem in
* Repair MPC5605B option wiring picture in
* Update the option CS75-AIRCONDITION-MODULE(2014) wiring diagram in
* Fixed the 523-AIRBAG option exception problem in ->
* Optimize the MAC7241 and MAC7242 options process in
* Fixed some MC9S12 chip and module options verification failure
* Update some options wiring diagram in
* Add the function of security status judgment in
* Fixed the MB91F526 connection failure problem in
+ The models of the read and write function modules that support Bench and Boot mode on the ECM are as follows:
1.VAG_CONTINENTAL_SIMOS12.1
2.VAG_CONTINENTAL_SIMOS12.2
+ Add R7F701333A option in
+ Add MPC5673K, MPC5674K, MPC5675K options in
+ Add TC27X-64F option in
+ Add BYD ECU CONTROL MODULE(TB30) option in
+ Add TIGUAN Navigation Module(STM8S207CBT6) option in
+ Add TOYOTA Sensor Steering(CY96F636R) option in
+ Add Feidi Dito BCM(STMAF5289) option in
+ Add BAOJUN 730 BCM(D70F3628)-LOCK-READ, BAOJUN 730 BCM(D70F3628)-LOCK-WRITE options in
+ Add MAGOTAN Audio AMP option in
Software V1.1.3.0, Database V12
2024-03-18 11:30:10
* Some options wiring diagrams increase pull-up resistance
* Added chip id identification for some options
* Added the boot wiring diagram of FCA_MARELLI_9DF in ECU
* The processing flow of PSA_DELPHI_DCM6.2A etc. is optimized in ECU
* Fix MC9S12XE partition some bugs.
* Repair Tesla battery(MM9Z1J638) option in
* Modify FORD-ECU(AM29BDD160GB) option in
* Modify HYUNDAI(2005-2008)(AM29BDD160GB), SONATA(2009-2010)(S29CDO16J) options in
* Modify KIA(2005-2008)(AM29BDD160GB) option in
+ The models of the read and write function modules that support Boot mode on the ECM are as follows:
RENAULT_CONTINENTAL_SID309, PSA_DELPHI_DCM7.1A
+ The models of the read and write function modules that support Bench mode on the ECM are as follows:
Alfa Romeo:
1.FCA_MARELLI_MM10JA
FIAT:
1.FAL_MARELLI_6JF,FAL_MARELLI_6F3
+ Add MC9S12UF32_UNSECURED option in
+ Add MC68HC05E6(0G72G), MC68HC05E6(0F82B) options in
+ Add STM32F103x8 option in
+ CR16MCS9V, CR16MCT9V options in
+ Add CEM_R5F64524_KFD, CEM_R5F64525_KFD options in
+ Add MQB48-LOCK(R7F701401)-WRITE,
MQB48-LOCK(R7F701402)-WRITE,
MQB48-LOCK(R7F701407)-WRITE
options in
+ Add MALIBU AIRBAG(2014)(SPC56AP54) option in ->
+ Add P5.0NA_WRITE(UART),
P5.0NA_READ(AUD),
P5.0SC_WRITE(UART),
P5.0SC_READ(AUD)
options in
+ Add S3000_READ(AUD), S3000_WRITE(UART) options in
+ Add PORSCHE Lithium Battery(MM9Z1J638) option in
+ Add AION-S BMS BOX(SPC5746R) option in
+ Add GL8 Keyless Module(SPC5602D) option in
Software V1.1.2.0, Database V11
2024-02-26
* MCU STM8S and STM8AF series wiring diagram update.
* MQB dashboard options process optimization and wiring diagram update.
* Repair NATS5-IMMO option in
+ Add SPC582B50,
SPC582B54,
SPC582B60,
SPC584B60,
SPC584B64,
SPC584B70,
SPC584C70,
SPC584C74,
SPC584C80,
SPC584E84,
SPC584G80,
SPC584G84,
SPC584N80,
SPC58EC60,
SPC58EC70,
SPC58EC74,
SPC58EC80,
SPC58EE84,
SPC58EG80,
SPC58EG84,
SPC58EN80,
SPC58EN84,
SPC58NE84,
SPC58NG84,
SPC58NH92,
SPC58NN84
options in
+ Add MQB-LOCK(D70F3423)-READ(WELD),
MQB-LOCK(D70F3423)-WRITE(WELD)
MQB-LOCK(D70F3426)-READ(WELD),
MQB-LOCK(D70F3426)-WRITE(WELD)
MQB48/49/5C-LOCK(R7F701401)-READ,
MQB48/49/5C-LOCK(R7F701402)-READ,
MQB48/49/5C-LOCK(R7F701404)-READ,
MQB48/49/5C-LOCK(R7F701407)-READ options in
+ Add AUDI Q3 DASHBOARD(2018–)(D70F3426)-READ, AUDI Q3 DASHBOARD(2018–)(D70F3426)-WRITE options in
+ Add Q7 BCM2 J393(2016)(SPC5646C) option in
+ Add MOTO REPAIR-MC9S12XS256 option in
+ Add PCX(MC9S12G64) option in
+ Add CRV(R7F701033)(WELD), XRV(D70F3634)(WELD), AVANCIER(R7F701033)(WELD), BREEZE(R7F701033)(WELD), VALEO MOTORCYCLE EPROM options in
+ Add BCM(D70F3634)(WELD) option in
+ Add GEELY AIRBAG(R7F701018) option in ->
+ Add Lithium Battery(MC9S12XET256) option in
+ Add JIEFANG DRAGON_V BCM option in
Software V1.1.1.0, Database V9
2024-01-26 16:46:21
* Repair R5F213xx options in
+ Add S9KEAZ128, S9KEAZ64, options in
+ Add SPC563M64, SPC563M60 options in
+ Add SPC57EM80 option in
+ Add SPC564A70, SPC564A74, SPC564A80, SPC56EL54, SPC56EL60, SPC56EL64, SPC56EL70, SPC564L54, SPC564L60, SPC564L64, SPC564L70, SPC5643L options in
+ Add MPC5741P, MPC5742P, MPC5743P, MPC5743R, MPC5744B, MPC5744C, MPC5744K, MPC5744P, MPC5745B, MPC5745C, MPC5745D, MPC5746B, MPC5746M, MPC5746D, MPC5746R
options in
+ Add MPC5601B, MPC5605BK, MPC5605B, MPC5606BK options in
+ Add MPC5642A, MPC5644A, MPC5645S options in
+ Add MPC5533, MPC5534, MPC5553, MPC5554, MPC5561, MPC5565, MPC5566, MPC5567 options in
+ Add E_ENGINE_MSV70(N52), ME9.2, MEV9.2, MSV80_BOOT_2 options in
+ Add EDC16C9-3.XX, EDC7UC31-14.C0, EDC16CP39-6.40, EDC16C39-5.11, EDC16C39-6.H1, EDC15C2 options in
+ Add ME9.7 option in
+ Add E37 option in
+ Add GM MARELLI 6JO, FAL MARELLI 6JF options in
+ Add SID202, SID203 options in
+ Add MED9.1 option in
+ Add EDG16C33 option in
+ Add ME7.1, ME7.5, options in
+ Add SID301 option in
+ Add Dongfeng Box Truck BMS option in
+ Add AM29DL323GT(TSOP48),
AM29DL323GB(TSOP48),
AM29DL322GB(TSOP48),
AM29DL324GB(TSOP48),
AM29DL324GT(TSOP48),
AM29DL322GT(TSOP48),
AM29DL640G(TSOP48),
AM29DL161DB(TSOP48),
AM29DL162DB(TSOP48),
AM29DL163DB(TSOP48),
AM29DL164DB(TSOP48),
AM29DL161DT(TSOP48),
AM29DL162DT(TSOP48),
AM29DL163DT(TSOP48),
AM29DL164DT(TSOP48),
AM29DL800BB(TSOP48),
AM29DL800BT(TSOP48),
AM29DL400BT(TSOP48),
AM29DL400BB(TSOP48),
AM29DL800BB(TSOP44),
AM29DL800BT(TSOP44),
AM29DL400BT(TSOP44),
AM29DL400BB(TSOP44) options in
+ Add SST36VF3203(TSOP48), SST36VF3204(TSOP48), SST36VF1601(TSOP48), SST36VF1602(TSOP48) options in
+ Add SST38VF6401(TSOP48), SST38VF6402(TSOP48), SST38VF6403(TSOP48), SST38VF6404(TSOP48) options in
+ Add W19B160BB(TSOP48),
W19B160BT(TSOP48),
W19B320AB(TSOP48),
W19B320AT(TSOP48),
W19B320BB(TSOP48),
W19B320BT(TSOP48),
W19B322MT(TSOP48),
W19B323MT(TSOP48),
W19B324MT(TSOP48),
W19B324MB(TSOP48),
W19B323MB(TSOP48),
W19B322MB(TSOP48) options in
+ Add AT49BV8192A(TSOP48),
AT49BV8192AT(TSOP48),
AT49BV008AT(TSOP48),
AT49BV008A(TSOP48),
AT49BV8192(TSOP48),
AT49BV8192T(TSOP48),
AT49LV8192T(TSOP48),
AT49LV8192(TSOP48),
AT49LV4096(TSOP48),
AT49BV4096(TSOP48),
AT49BV2048(TSOP48),
AT49LV2048(TSOP48) options in
+ Add K8D6316UBM(TSOP48),
K8D6316UTM(TSOP48),
K8D3316UT(TSOP48),
K8D3316UB(TSOP48),
K8D3216UB(TSOP48),
K8D3216UT(TSOP48),
K8D1716UT(TSOP48),
K8D1716UB(TSOP48) options in


Package List:
1pc x power cable
1pc x MCU DB15 cable
1pc x USB cable

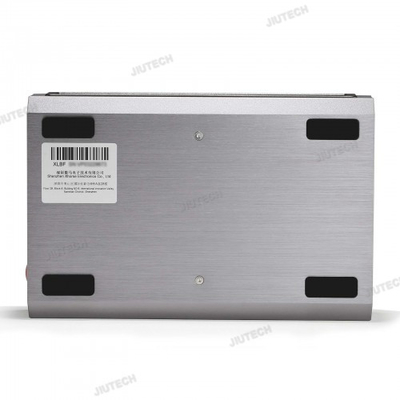

1pc x Main unit + VH13 adapter
1pc x Power adapter
1pc x MCU cable
1pc x ECU cable
1pc x VH24 interface adapter board
1pc x VH20 interface adapter board
1pc x OBD cable
1pc x ECU DB15 cable
43pcs x ECU harness plug replacement parts

Xhorse Multi Prog Optional Adapters
Image | Adapter | Model | Method | Usage |
![]() |
SOP44 & TSOP48 Adapter | XDMP04GL VH24 | By soldering | Read & write SOP44/TSOP48 package parallel FLASH chips.
Eg. AM29FXXX, M29FXXX, TB28FXXX series. |
![]() |
EEPROM & FLASH Adapter | XDMP05GL VH29 | By soldering | Read & write common 8-pin chip data. |
![]() |
SOP44 Adapter | XDMP06GL VH30 | Solderless | Solder-free reading & writing SOP44 package parallel FLASH chips.
Eg. AM29FXXX, M29FXXX, TB28FXXX series. |
![]() |
TSOP48 Adapter | XDMP07GL VH31 | Solderless | Solder-free reading & writing TSOP48 package parallel FLASH chips.
Eg. SST36VFXXX, AT49BVXXX, W19BXXX series. |
