New Forklift Crown Linde Interface PEAK PCAN-USB Crown CAN Interface Full System Diagnostic Tool+F110 Tablet

Place of Origin CHINA
Brand Name JIUTECH-Lucy
Model Number For Crown
Minimum Order Quantity 1
Packaging Details PACKAGE
Delivery Time 1 work day
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 1000
Product Details
Model: For Crown CAN Interface Model Name: For Crown
Origin: Mainland China Quality: Superior
Software Version: Version 5.33 Supports Models: All Crown Forklifts
Name: For Crown Diagnostic Tool Item Type: Car Diagnostic Cables And Connectors
Highlight:

F110 Tablet Crown Interface

,

Forklift Crown Linde Interface

,

full system diagnostic Tool Crown CAN Interface
Leave a Message
Product Description

New Forklift Crown linde Interface PEAK PCAN-USB Crown CAN Interface full system diagnostic tools +F110 tablet





supports models:


All crown forklifts








Description:
The PCAN-USB adapter enables simple connection to CAN networks. Its compact plastic casing makes it suitable for mobile applications.
The opto-decoupled version guarantees galvanic isolation of up to 500 Volts between the PC and the CAN side.
The package is also supplied with the CAN monitor PCAN-View for Windows and the programming interface PCAN-Basic.

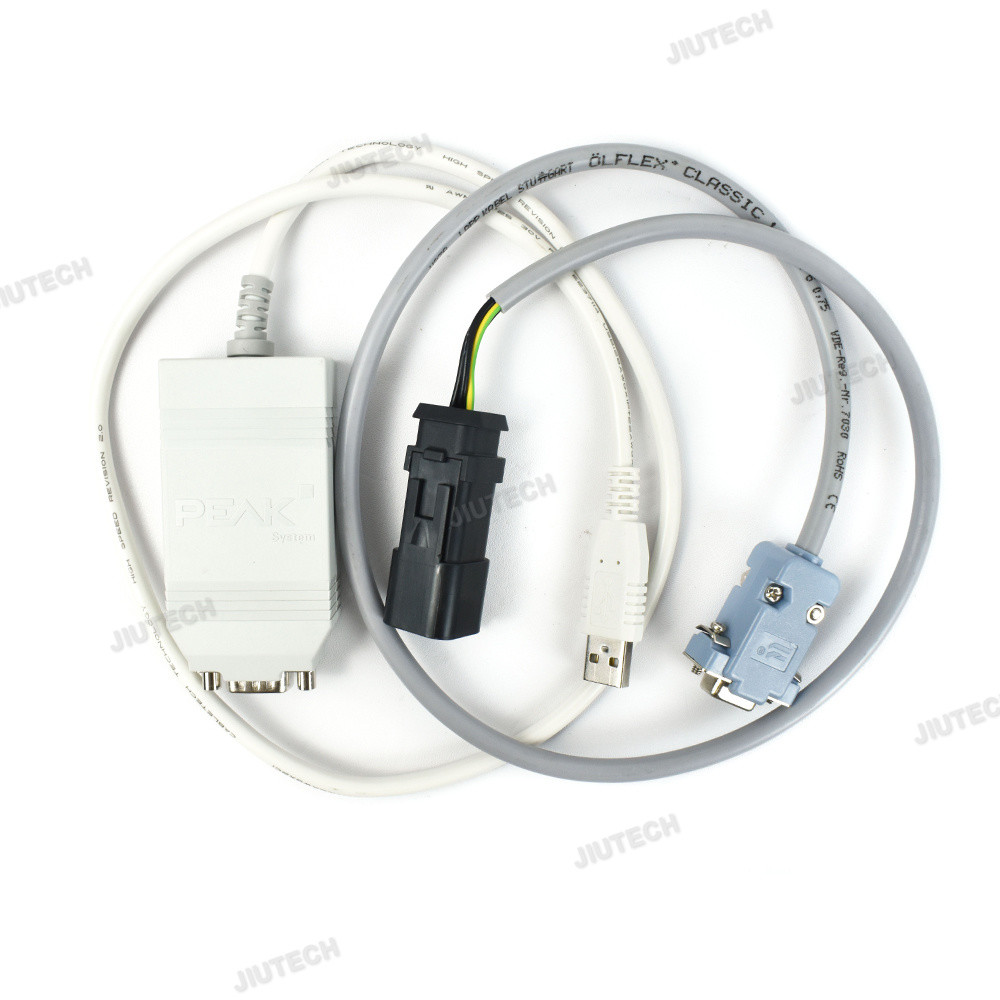

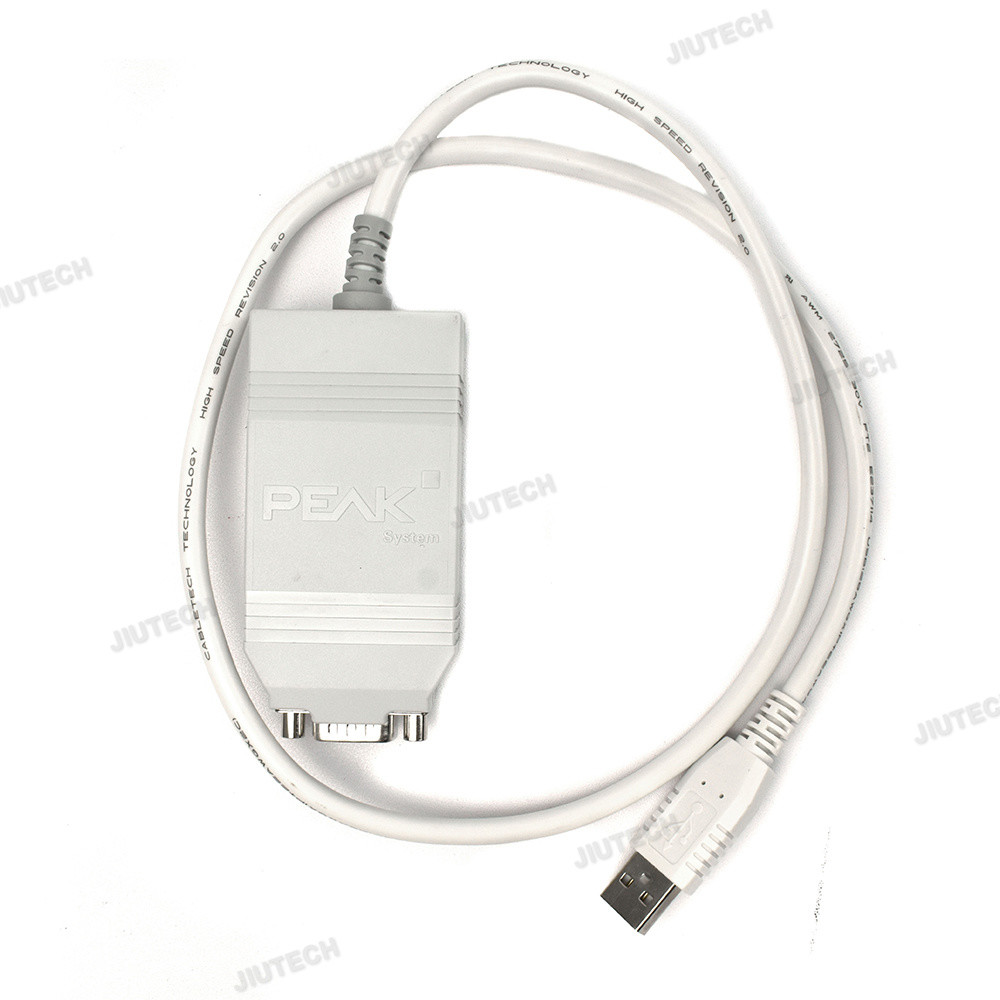

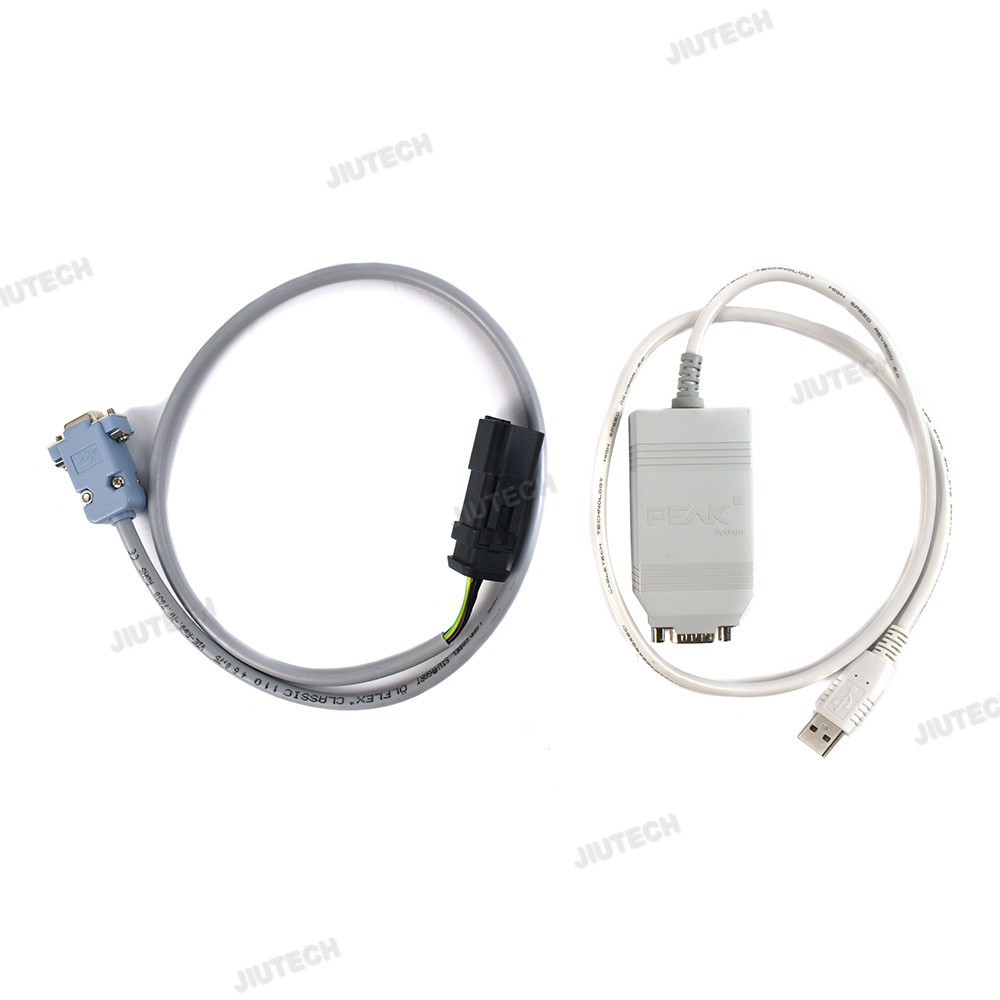

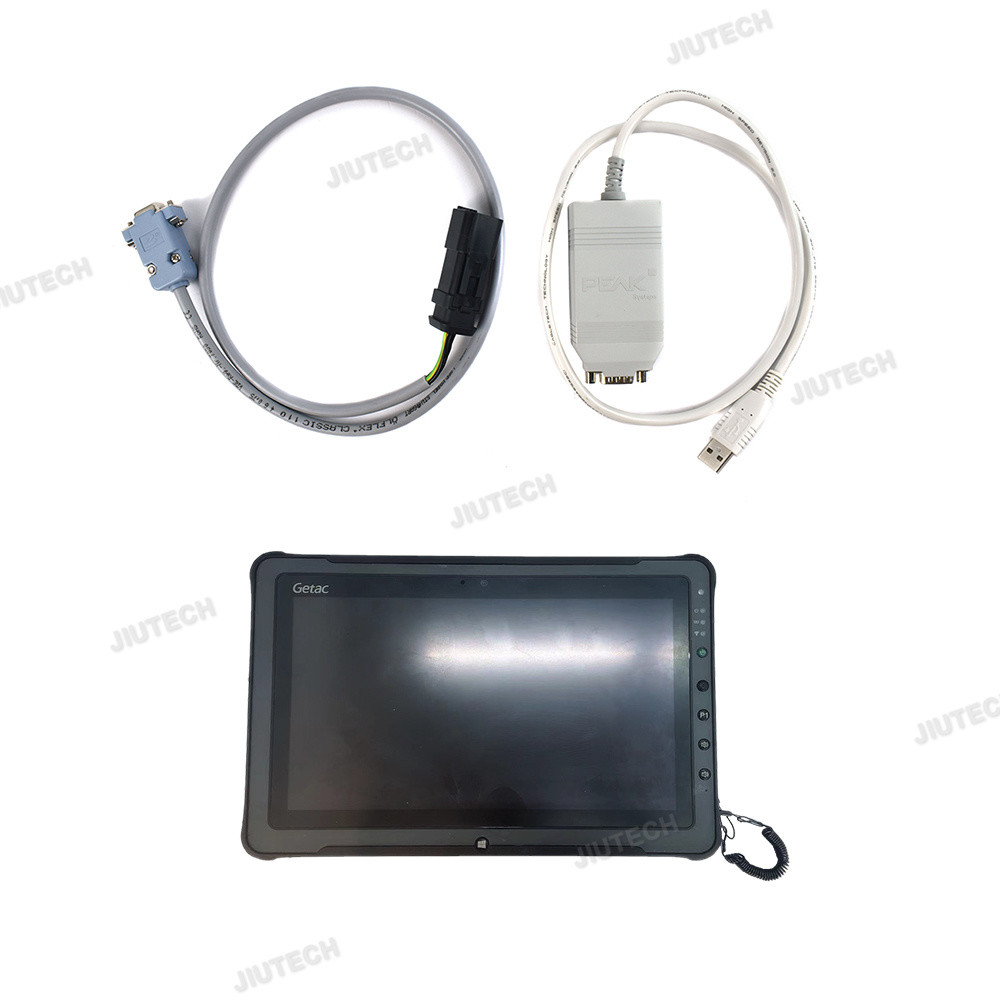

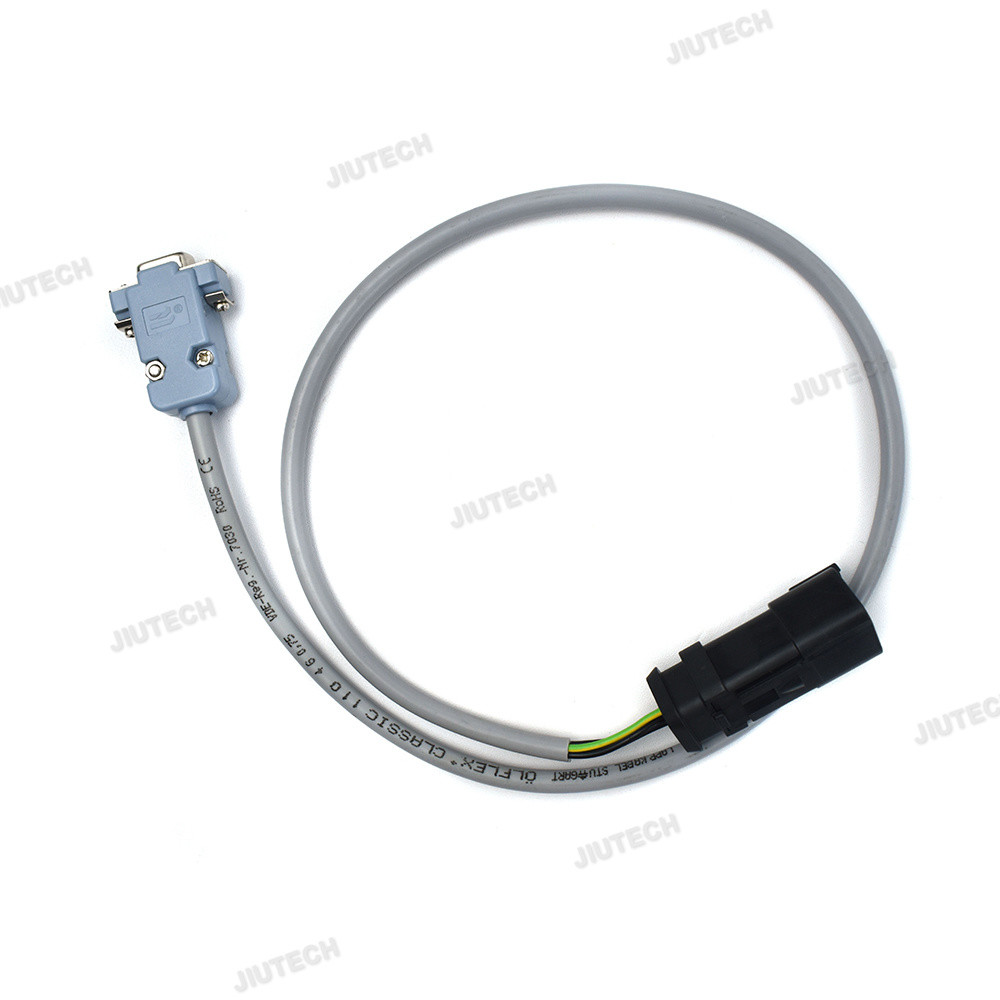

New Forklift Crown Linde Interface PEAK PCAN-USB Crown CAN Interface Full System Diagnostic Tool+F110 Tablet 0



New Forklift Crown Linde Interface PEAK PCAN-USB Crown CAN Interface Full System Diagnostic Tool+F110 Tablet 1New Forklift Crown Linde Interface PEAK PCAN-USB Crown CAN Interface Full System Diagnostic Tool+F110 Tablet 2New Forklift Crown Linde Interface PEAK PCAN-USB Crown CAN Interface Full System Diagnostic Tool+F110 Tablet 3Technical Specifications :

Adapter for the USB connection (Full-Speed mode, compatible with USB 1.1, USB 2.0, and USB 3.0)
High-speed CAN connection (ISO 11898-2)
Bit rates from 5 kbit/s up to 1 Mbit/s
Time stamp resolution approx. 42 µs
Compliant with CAN specifications 2.0A (11-bit ID) and 2.0B (29-bit ID)

CAN bus connection via D-Sub, 9-pin (in accordance with CiA 106)
N-XP SJA1000 CAN controller, 16 MHz clock frequency
N-XP PCA82C251 CAN transceiver
Galvanic isolation on the CAN connection up to 500 V (only for IPEH-002022)
CAN termination can be activated through a solder jumper
5-Volt supply to the CAN connection can be connected through a solder jumper, e.g. for external bus converter
Voltage supply via USB
Extended operating temperature range from -40 to +85 °C (-40 to +185 °F)New Forklift Crown Linde Interface PEAK PCAN-USB Crown CAN Interface Full System Diagnostic Tool+F110 Tablet 4New Forklift Crown Linde Interface PEAK PCAN-USB Crown CAN Interface Full System Diagnostic Tool+F110 Tablet 5New Forklift Crown Linde Interface PEAK PCAN-USB Crown CAN Interface Full System Diagnostic Tool+F110 Tablet 6New Forklift Crown Linde Interface PEAK PCAN-USB Crown CAN Interface Full System Diagnostic Tool+F110 Tablet 7New Forklift Crown Linde Interface PEAK PCAN-USB Crown CAN Interface Full System Diagnostic Tool+F110 Tablet 8New Forklift Crown Linde Interface PEAK PCAN-USB Crown CAN Interface Full System Diagnostic Tool+F110 Tablet 9New Forklift Crown Linde Interface PEAK PCAN-USB Crown CAN Interface Full System Diagnostic Tool+F110 Tablet 10New Forklift Crown Linde Interface PEAK PCAN-USB Crown CAN Interface Full System Diagnostic Tool+F110 Tablet 11New Forklift Crown Linde Interface PEAK PCAN-USB Crown CAN Interface Full System Diagnostic Tool+F110 Tablet 12New Forklift Crown Linde Interface PEAK PCAN-USB Crown CAN Interface Full System Diagnostic Tool+F110 Tablet 13New Forklift Crown Linde Interface PEAK PCAN-USB Crown CAN Interface Full System Diagnostic Tool+F110 Tablet 14We also have other forklifts: linde , still, yale hystre, cat, mitsubishi, judit

Can be installed in a computer

The following is the installed interface diagram:

New Forklift Crown Linde Interface PEAK PCAN-USB Crown CAN Interface Full System Diagnostic Tool+F110 Tablet 15
