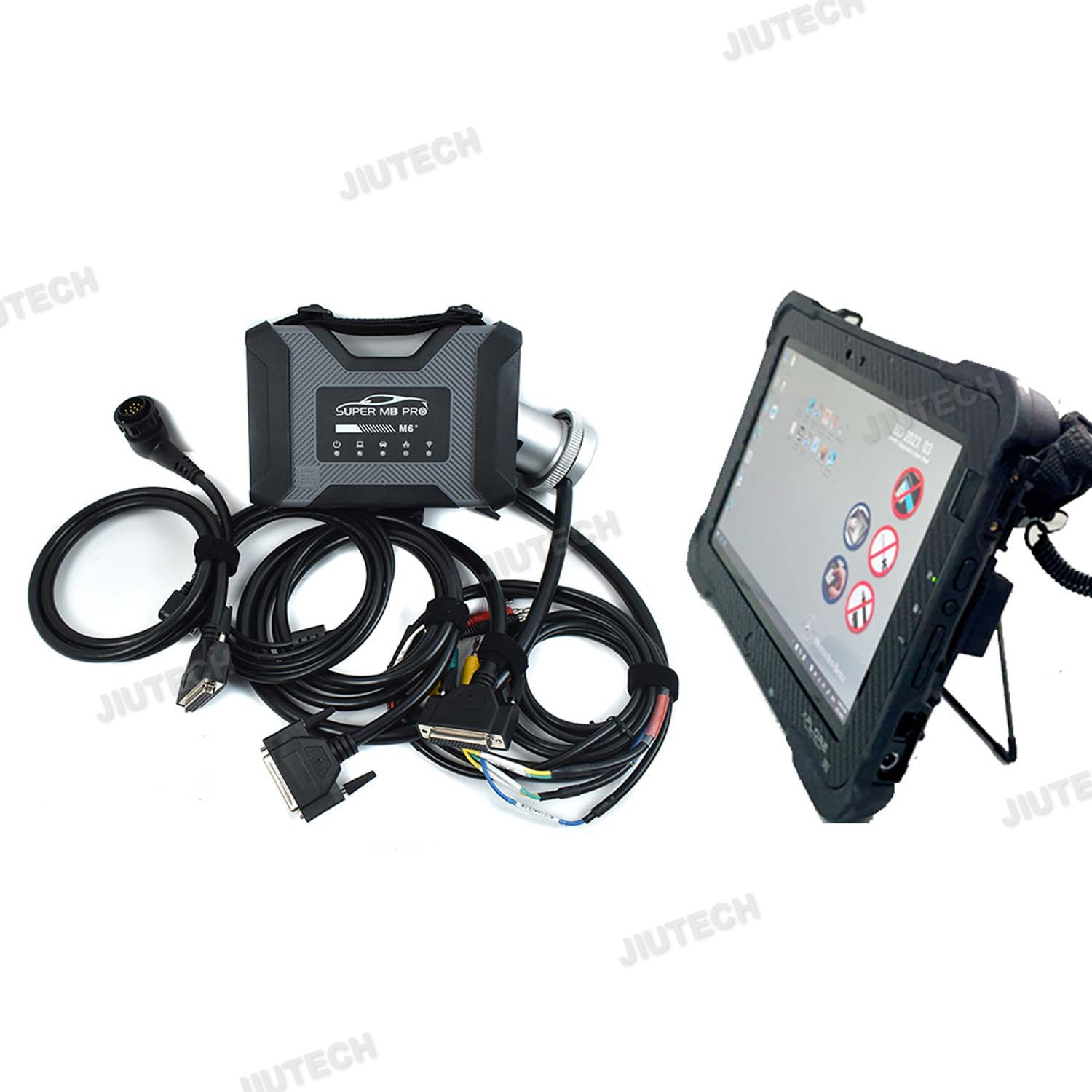

Multiplexer Xentry Mercedes Star Diagnostic Tool Pk C4 C5 C6+Xplore Tablet

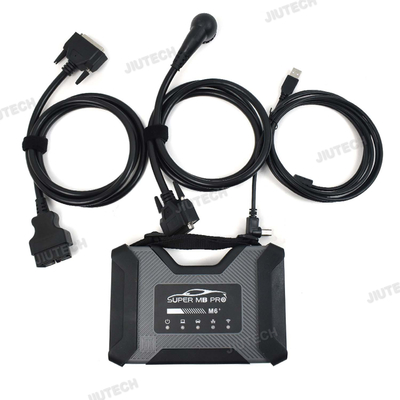

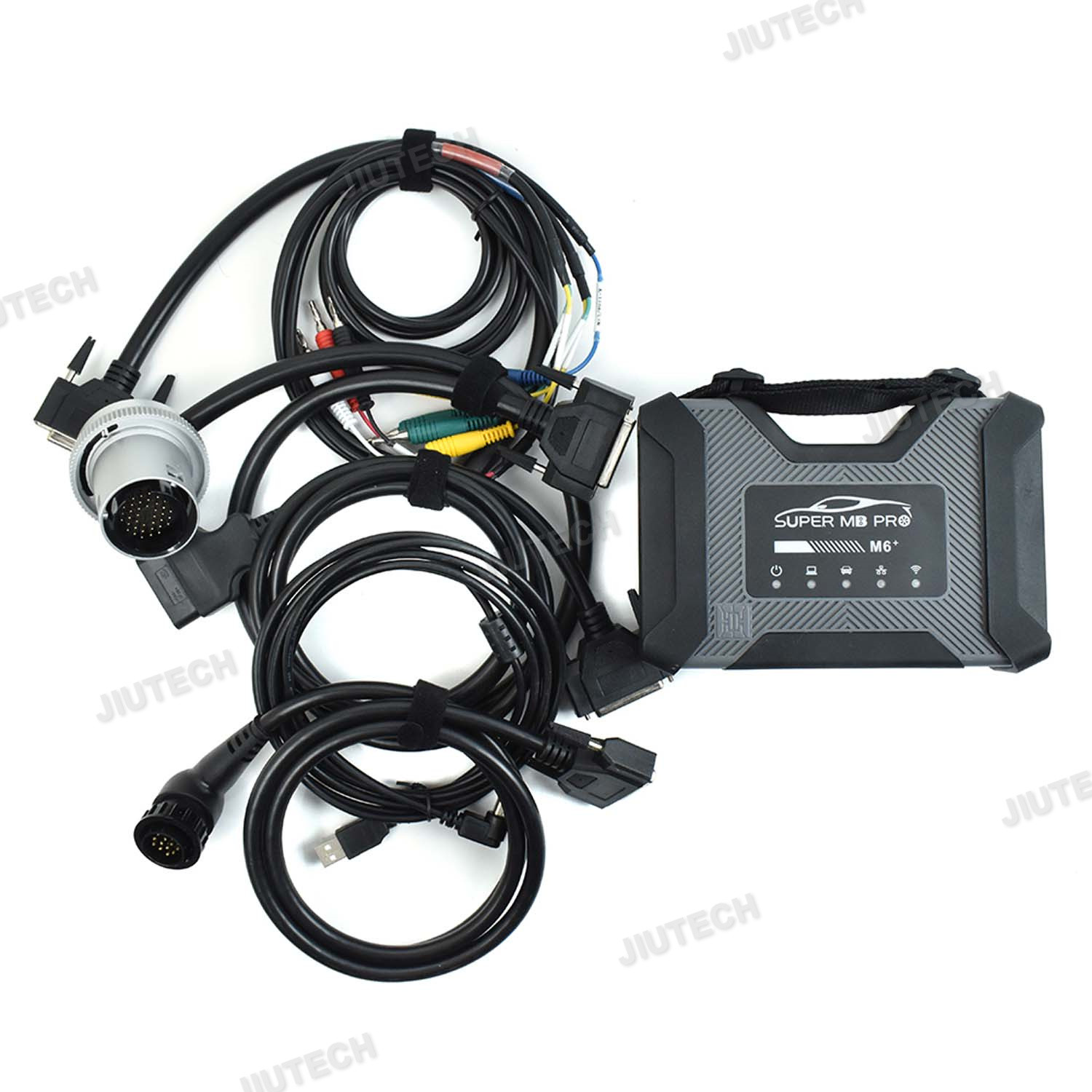

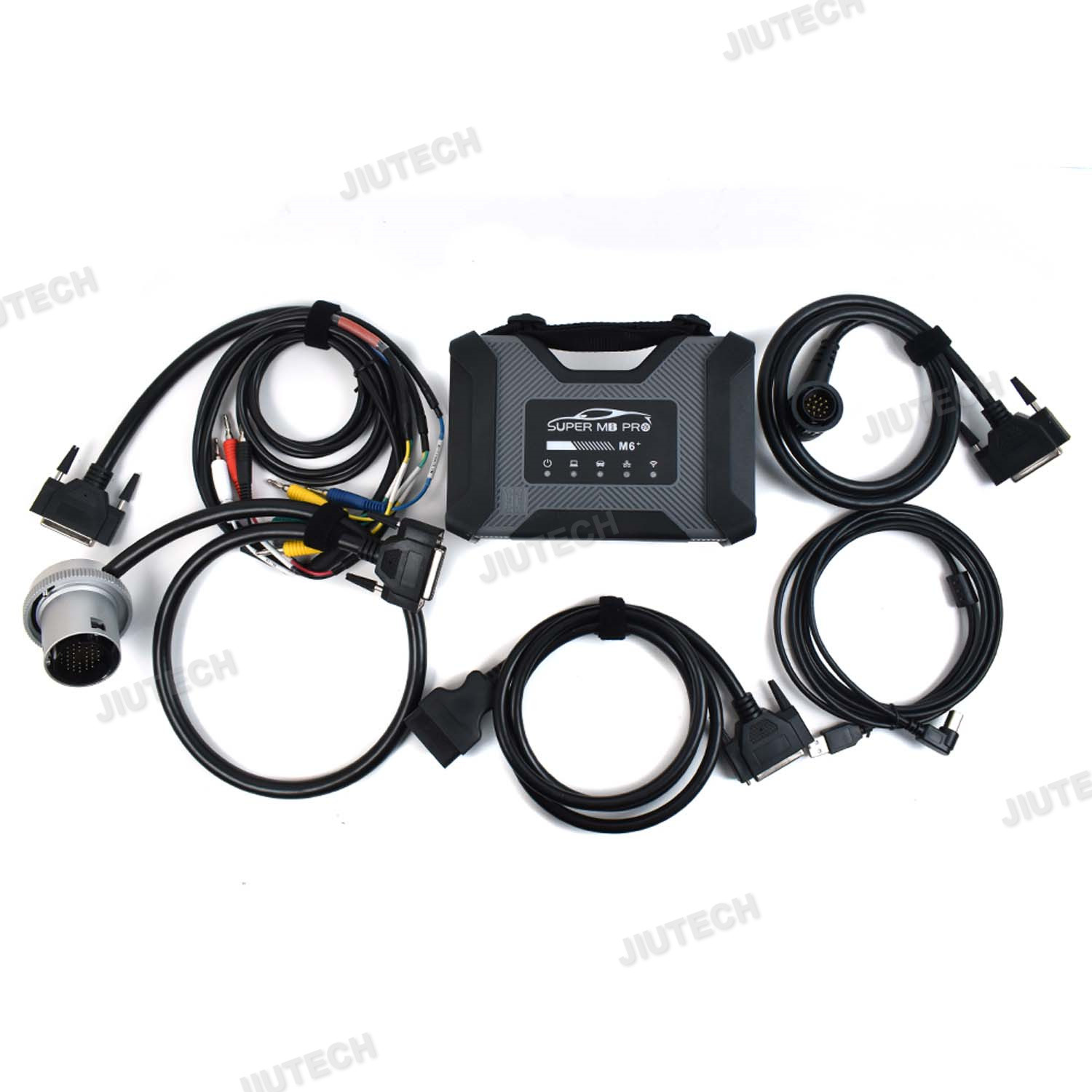

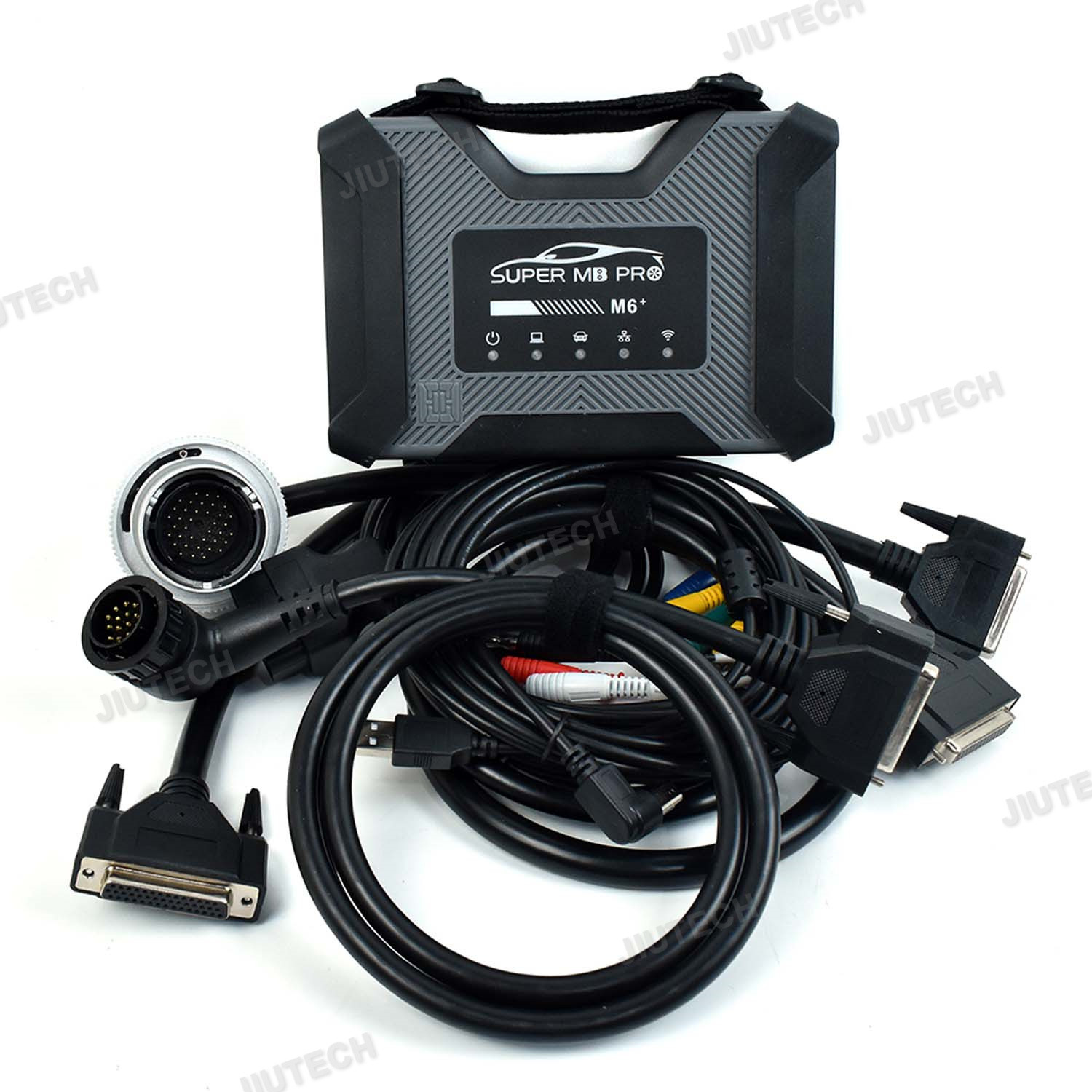

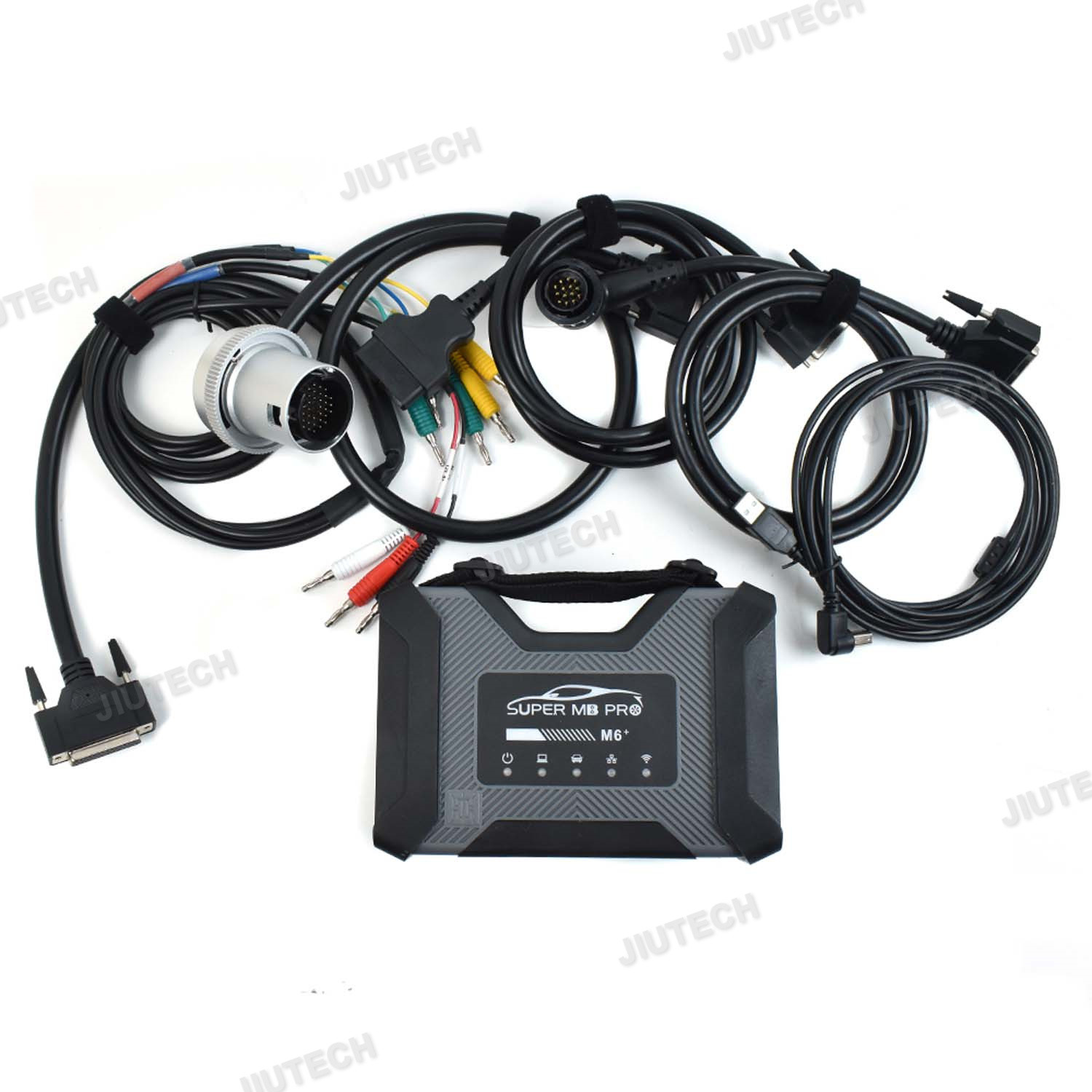

SUPER MB PRO M6 DIAGNOSIS VCI WITH MULTIPLEXER XENTRY FOR BENZ CAR TRUCK DIAGNOSTIC TOOL PK C4 C5 C6+XPLORE TABLET

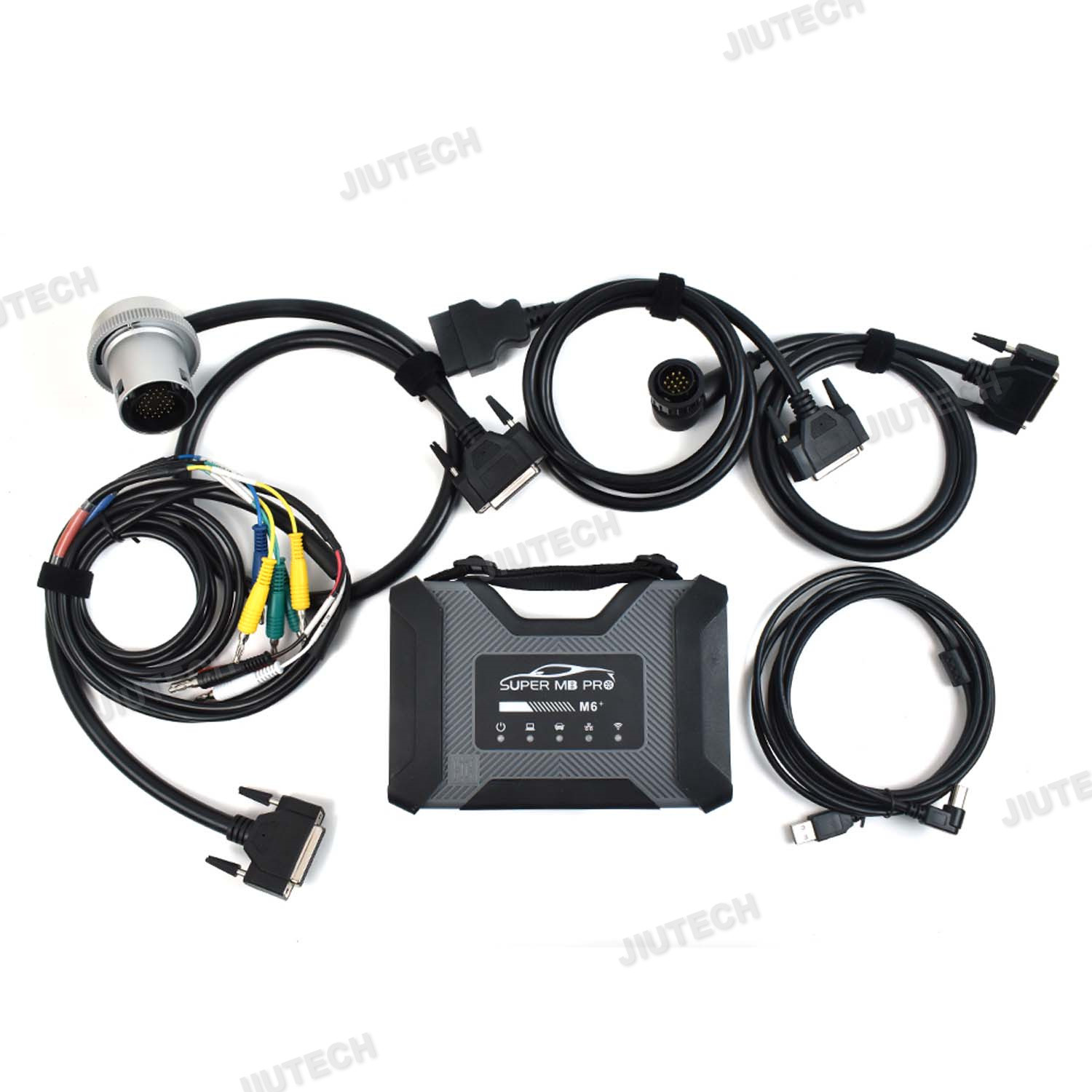

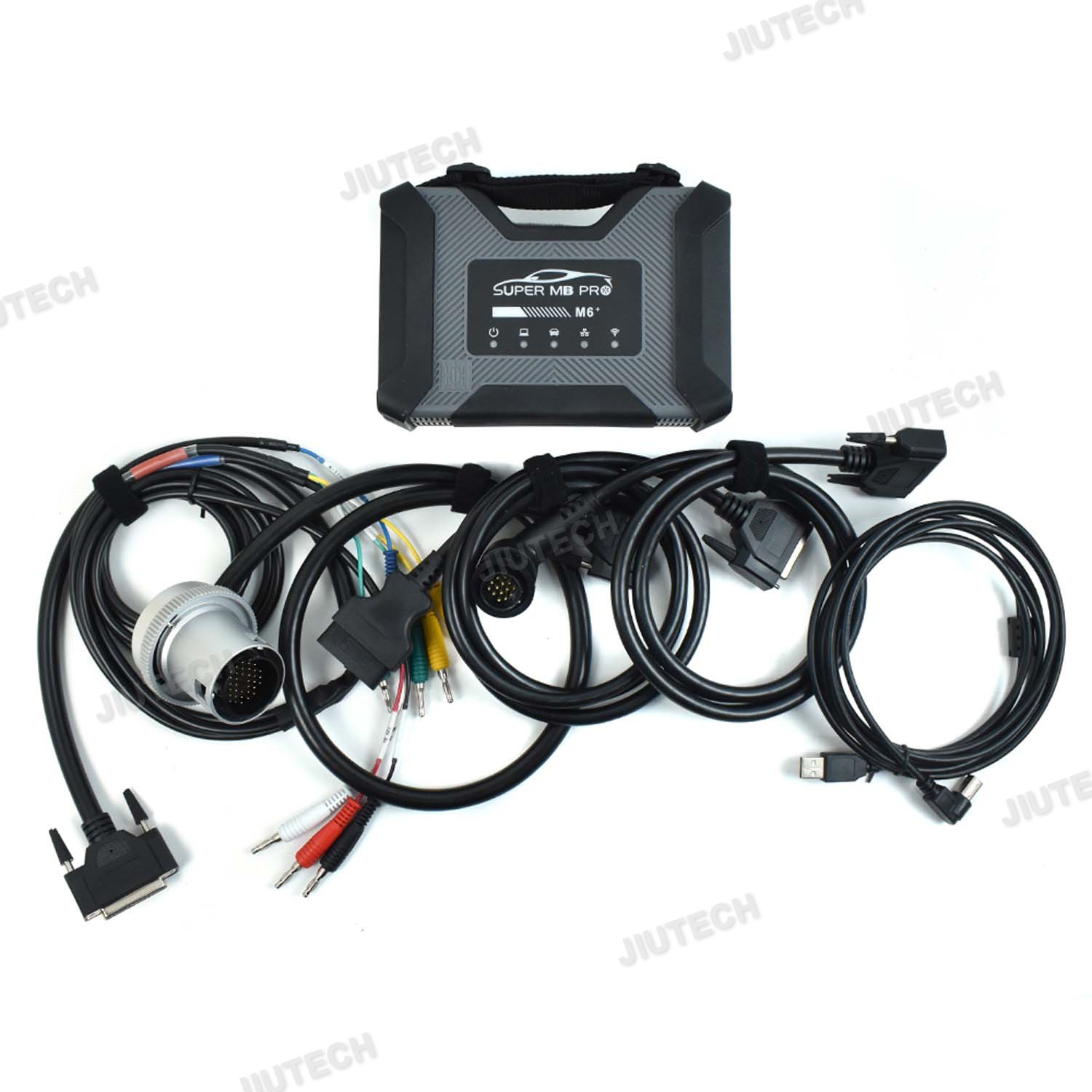

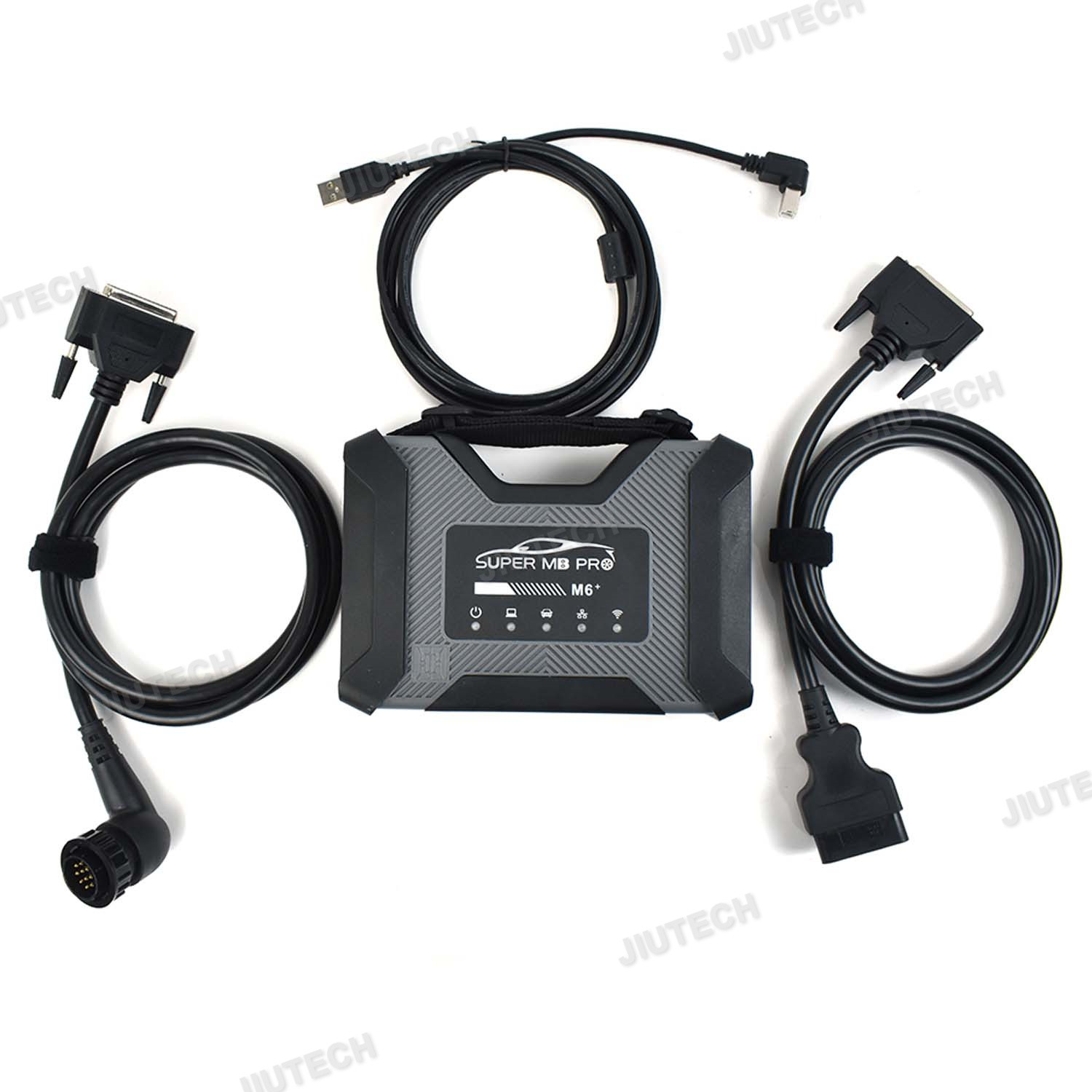

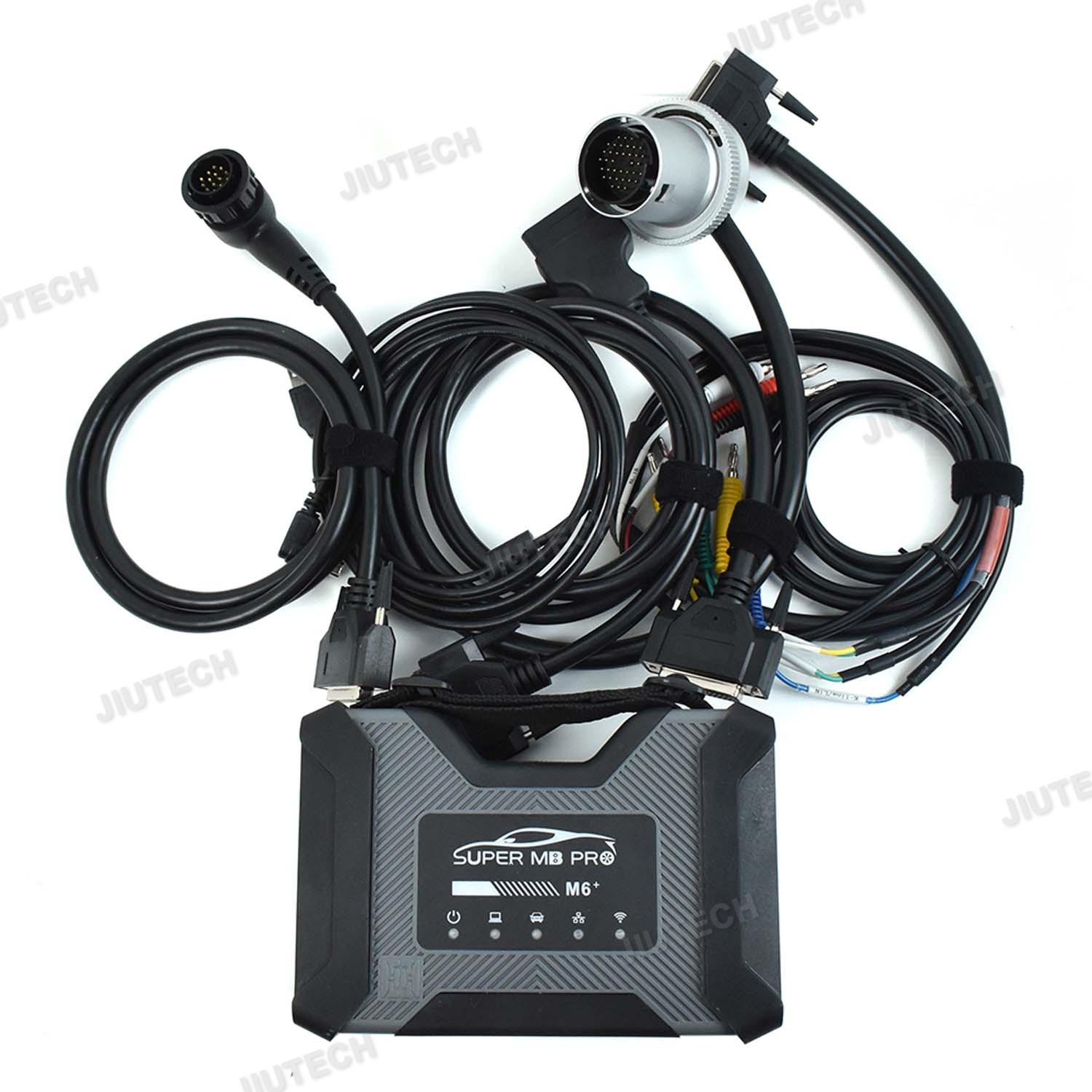

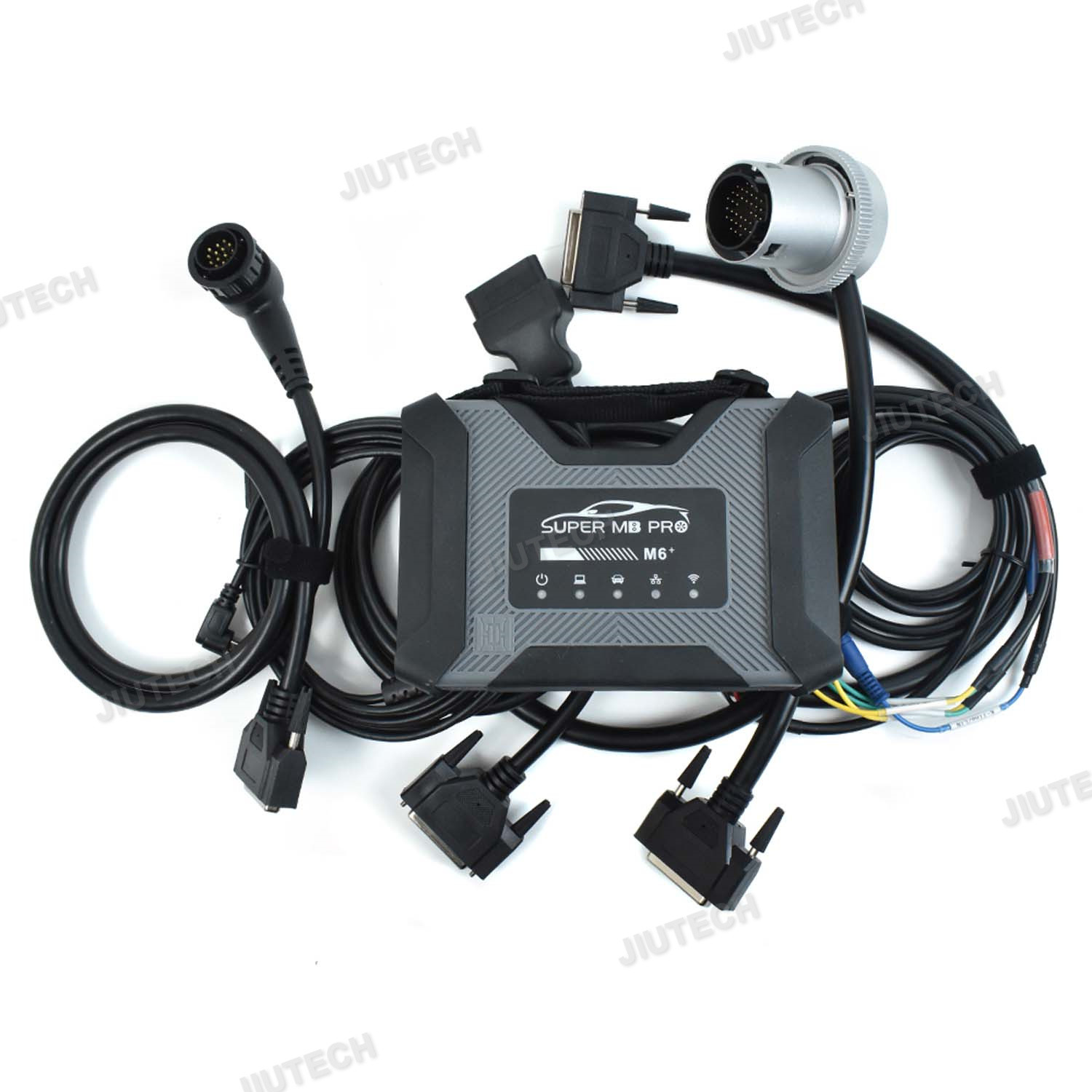

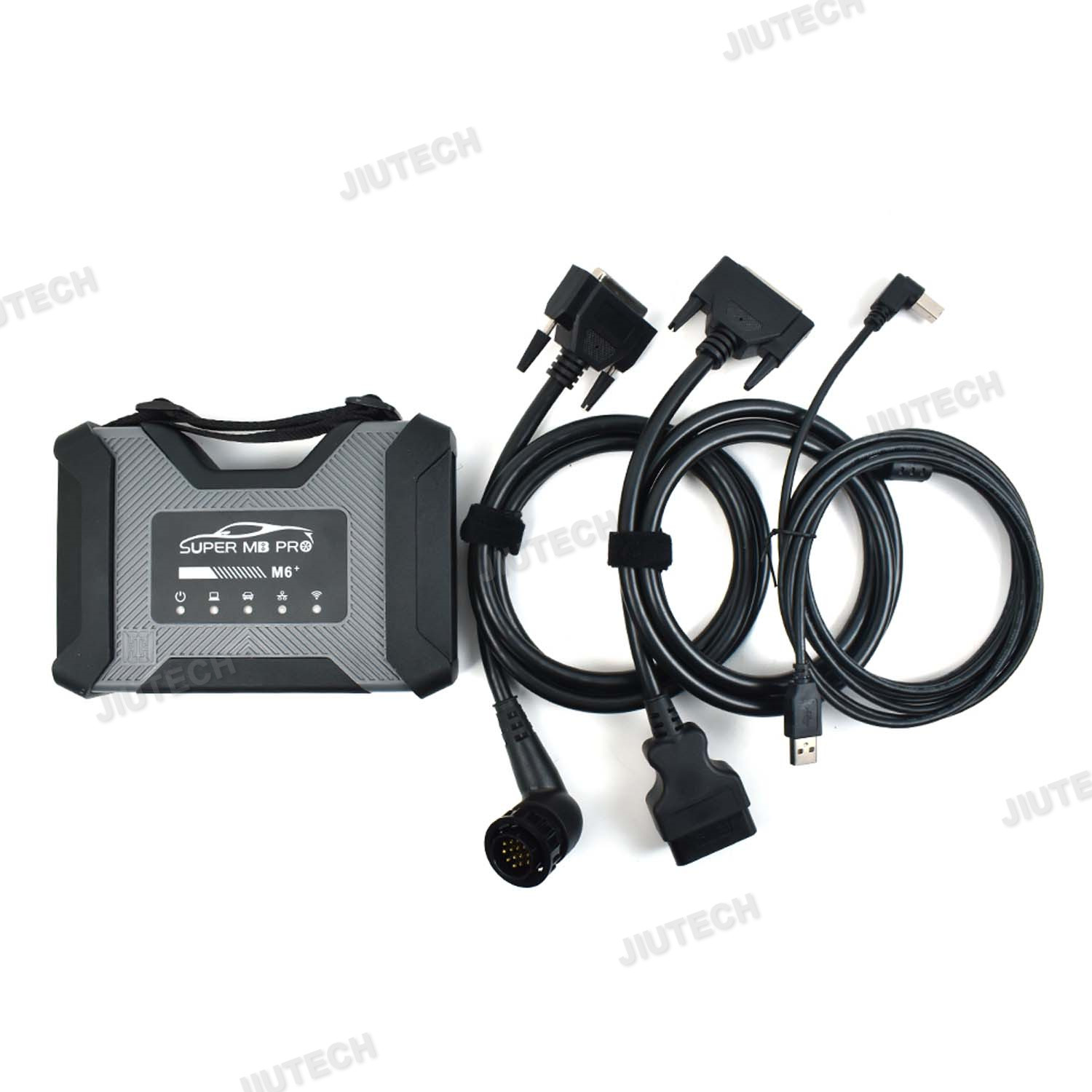

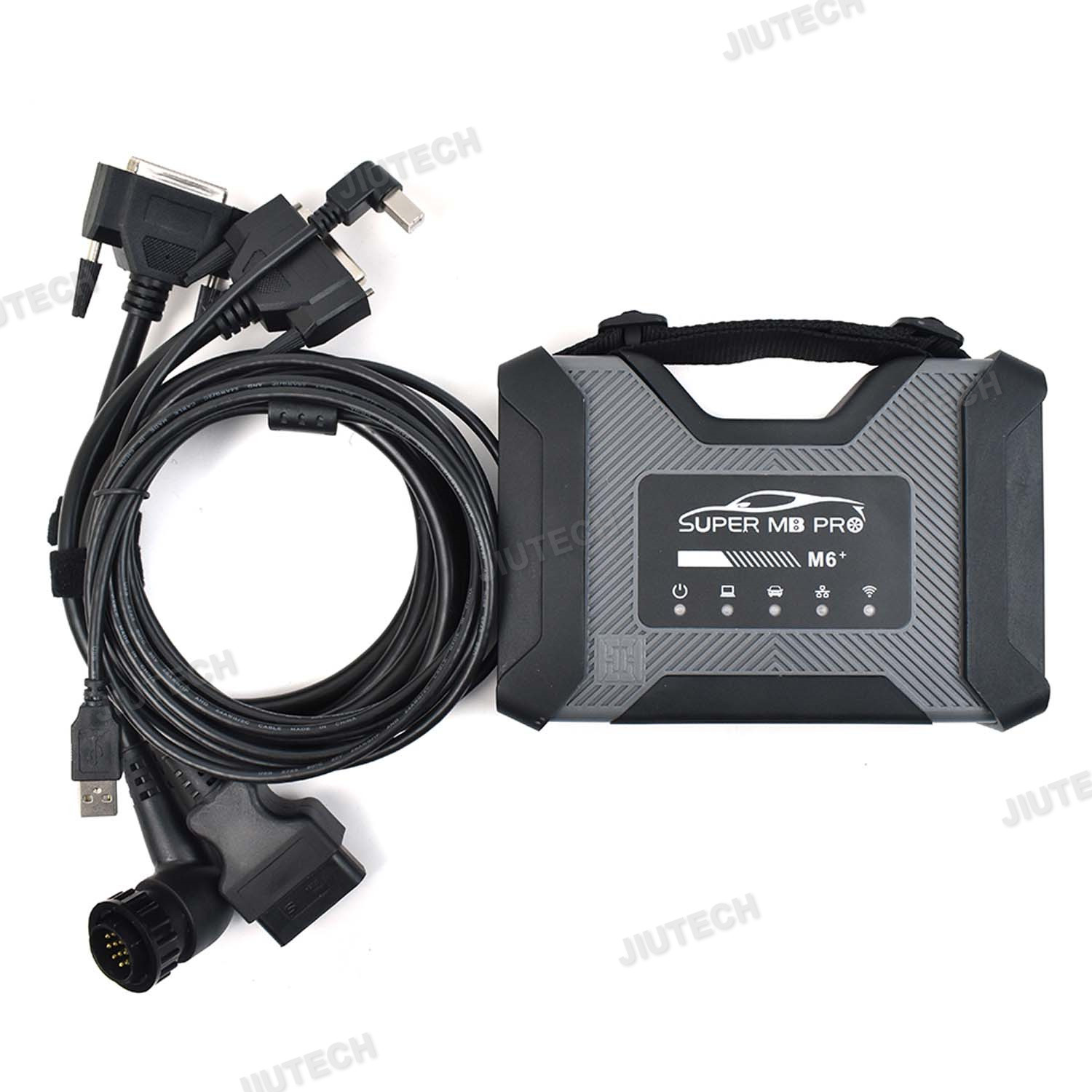

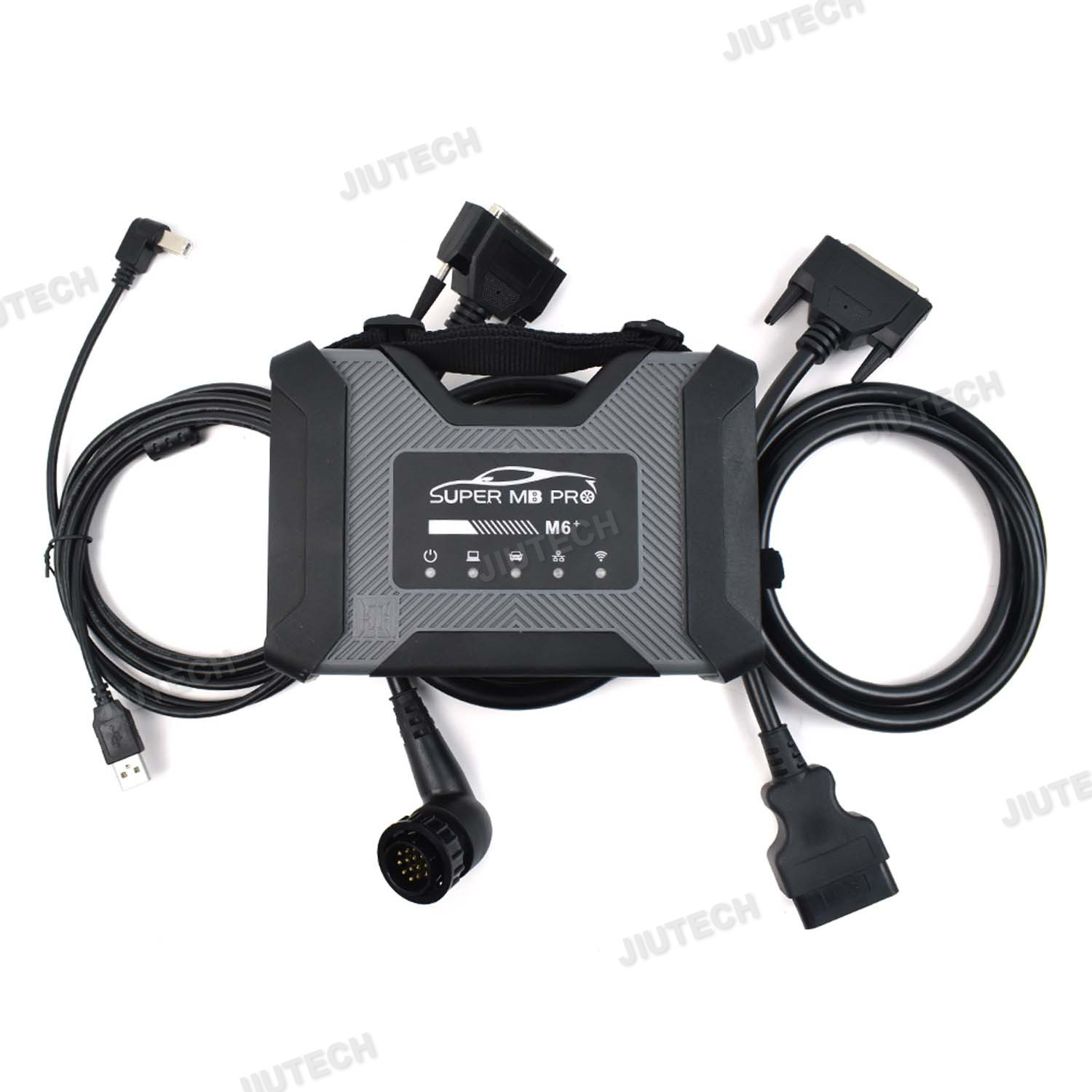

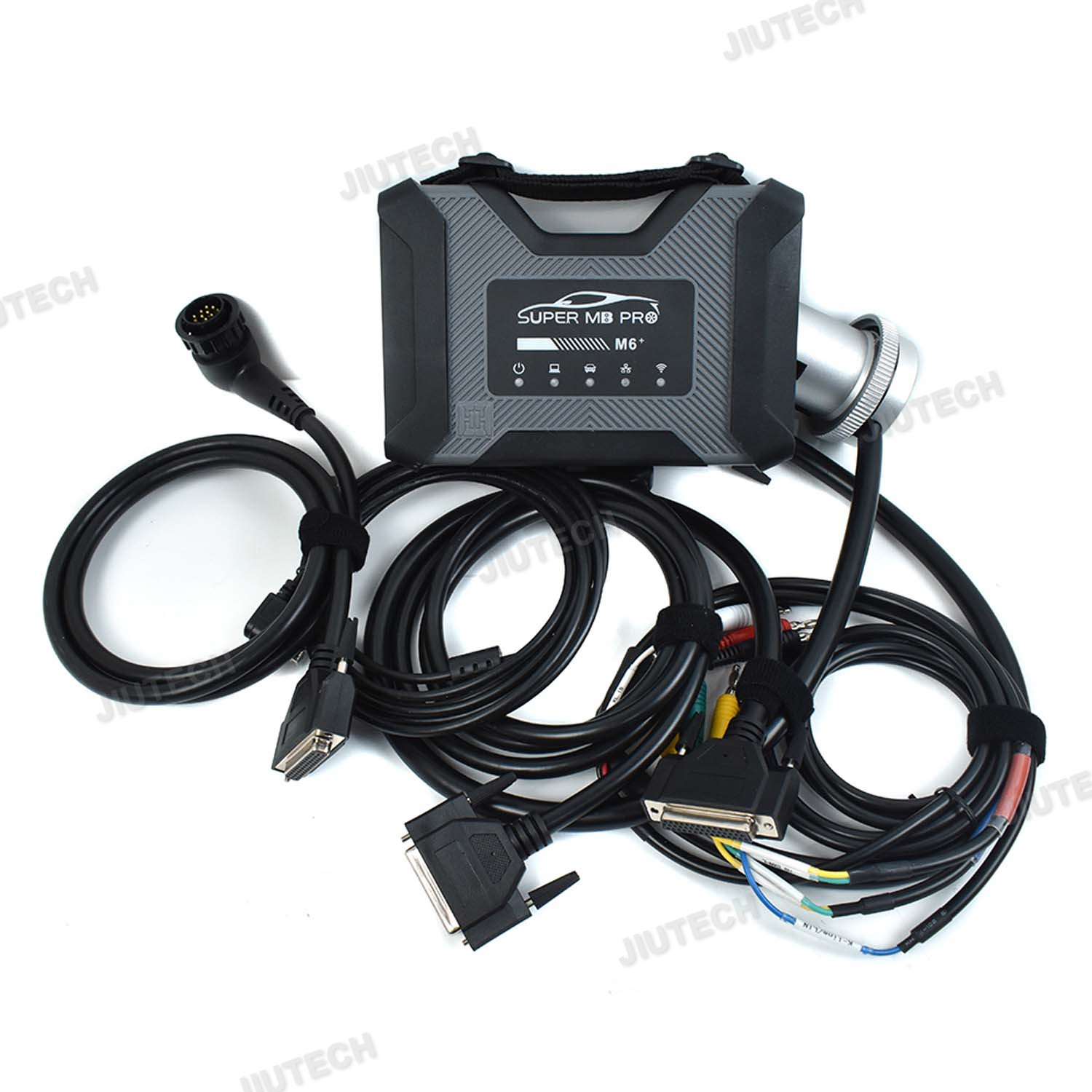

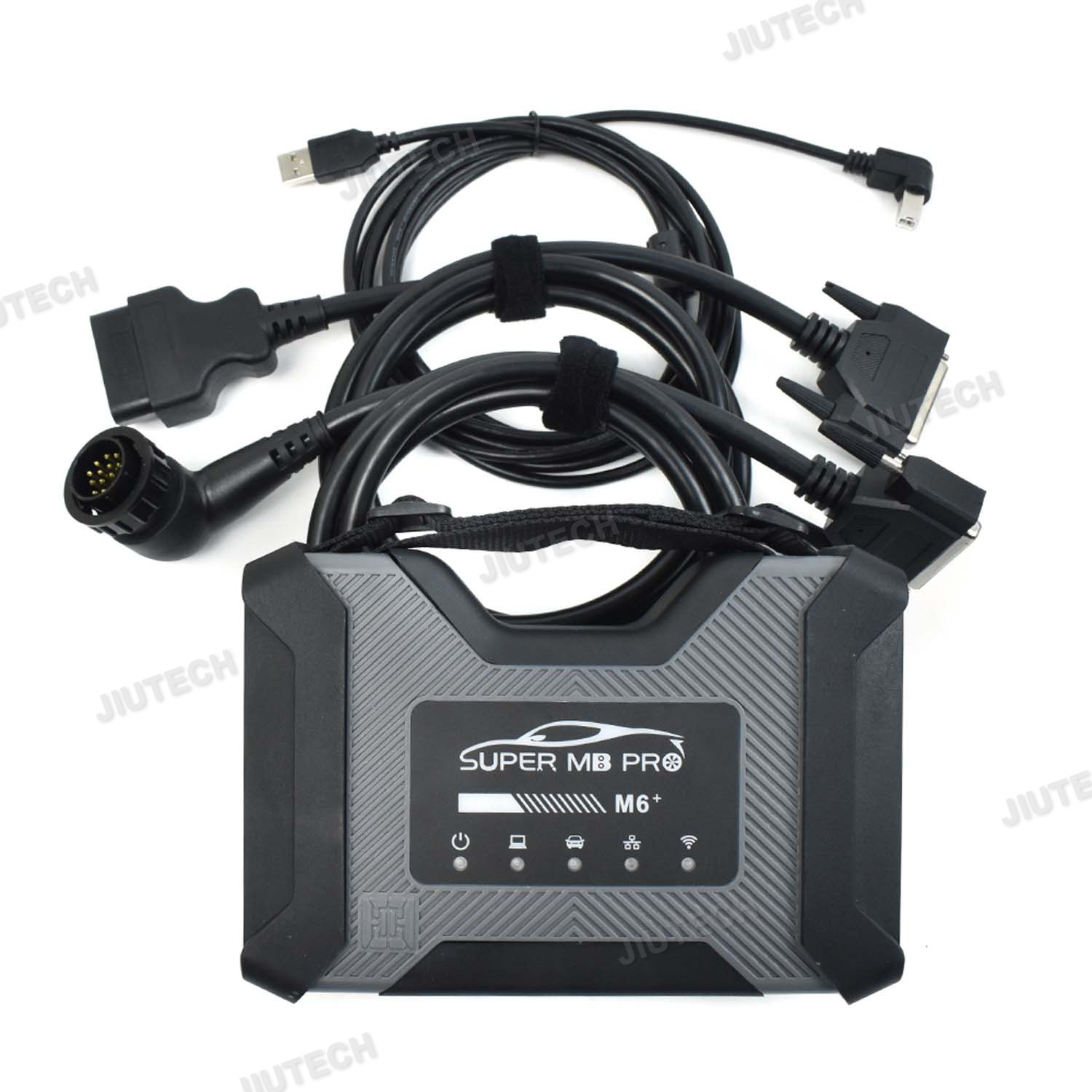

(1). Connect the M6+ hardware box to the car diagnostic interface through the test line. The red indicator light ① on the main unit is always on, and the system indicator ② is flashing during startup. After startup, it is always on and beeps once, indicating startup Finish

(2) Wired connection: Connect the USB port of the M6+ hardware box to the USB port of the computer or tablet through a USB cable, and a new network connection will appear on the network management interface of the computer or tablet (WIN10 driver-free), and the network connection attribute IP address Change it to 172.29.127.* 255.255.255.0. Click Advanced and add a multi-IP address as 169.254.0.* 255.255.255.0. After the computer or tablet is connected to the network, the indicator light ④ will be always on. Press and hold the switch button ⑥ on the side for 3 seconds and then release it. You can see that the ④ green indicator light is always on and then flashing, indicating that the test can be performed normally. It will return to the initial state after power on again.

(3) Wireless connection: You cannot find the wireless network by plugging in the USB cable. Unplug the USB cable from the M6+ hardware box port, and you will find a M6+ DOIP-**** network on the computer or tablet, just connect it. No need for any settings, password 123456789, ⑤Wireless indicator green light is always on, ④Wired light is off. Long press the side ⑥ switch button for 3 seconds and release it, you can see ⑥Wireless green indicator light is always on and turns to flashing state, indicating that it can be tested normally up. It will return to the initial state after power on again.

(4) The computer-side BWM software adopts wired or wireless connection, and the mobile phone BW-M APP software adopts wireless connection.

(5) Remote C-end operation consulting after-sales.
