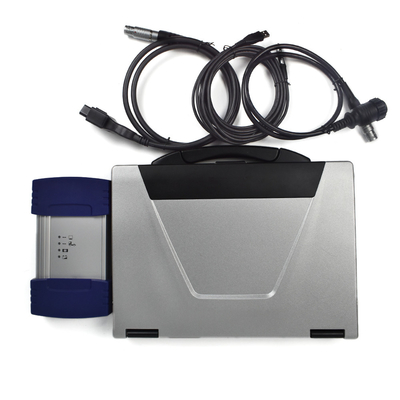

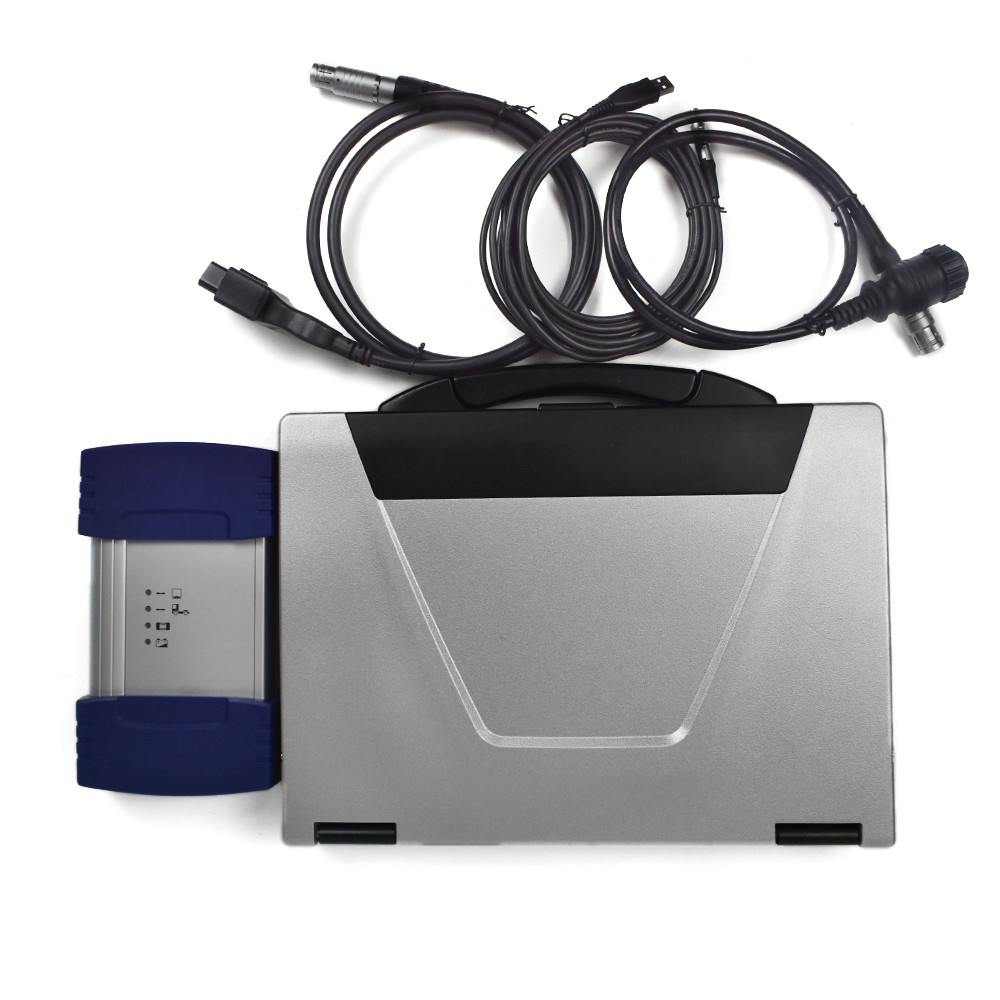

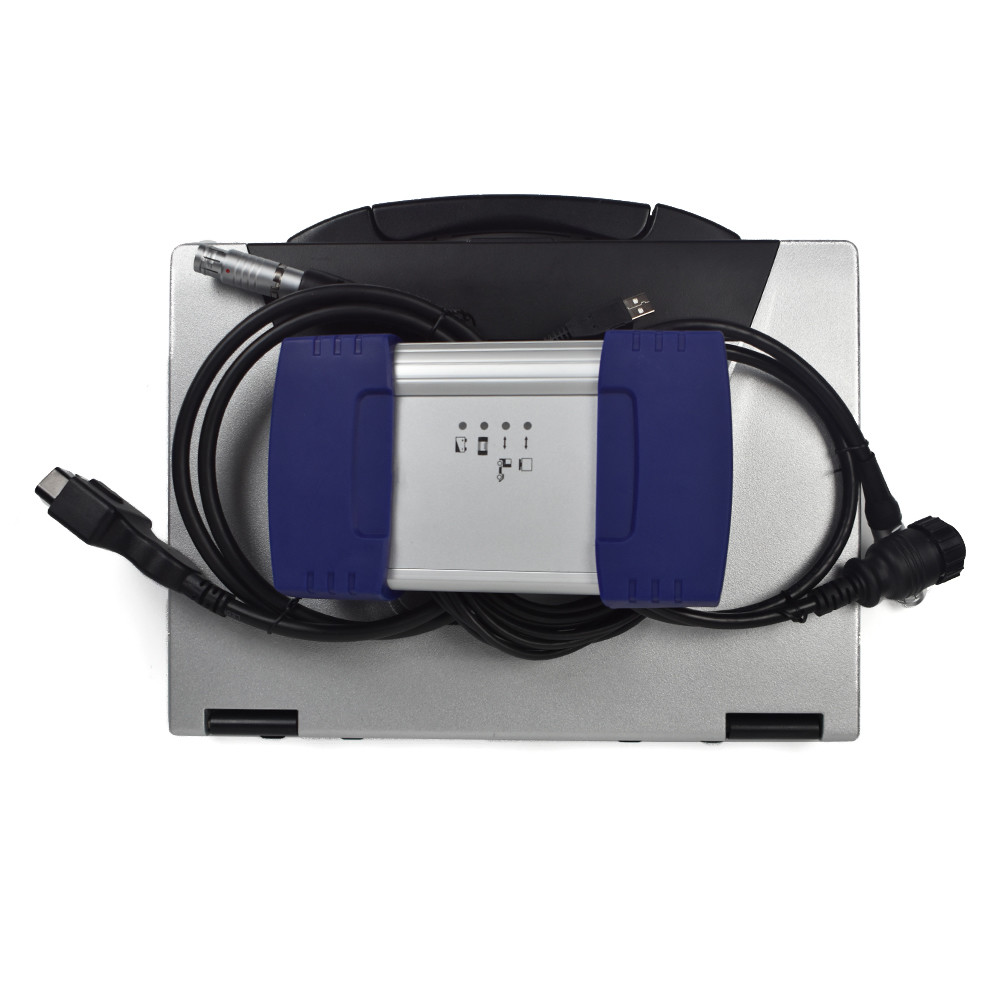

DAF Software Truck Diagnostic Scanner Paccar Davie With CF52 Laptop

Specifications:

1. Dimensions (W x D x H) 126 x 214 x47 mm;

2. Power supply from the vehicle electrical system;

3. The DAF must be powered from the vehicle;

4. Rated voltages 8 to 32 V DC;

5. Current consumption in the load range Max. 1 A

If external power is interrupted, the DAF will be

buffered by the rechargeable battery;

6. Battery type NiMH 4,8V/1300mAh.

7. WiFi – optional.

Systems Coverages:

CAB climate system;

Safety system;

Security system;

Transmission system;

CAB climate system;

Vehicle control system;

Door control system;

Instrumentation system;

Engine system;

Tachograph;

Communication system;

After treatment system;

Break system.

Direct Testing mode allows immediate selection of individual control units and direct test of their components and functions. Guided Diagnosis. Using the combination of self-diagnosis symptoms (content of fault memory) and observed symptoms (complaints from customer), the system generates a test plan and guides the user along the shortest route to the suspect component.

HD-OBD mode allows immediate selection of DAF independent control units and direct testing of their components and functions.

EOL (End Of Line) mode used in stations of the production area and allows programming, calibration, health check and diagnosing of newly produced vehicles.

Softwares:

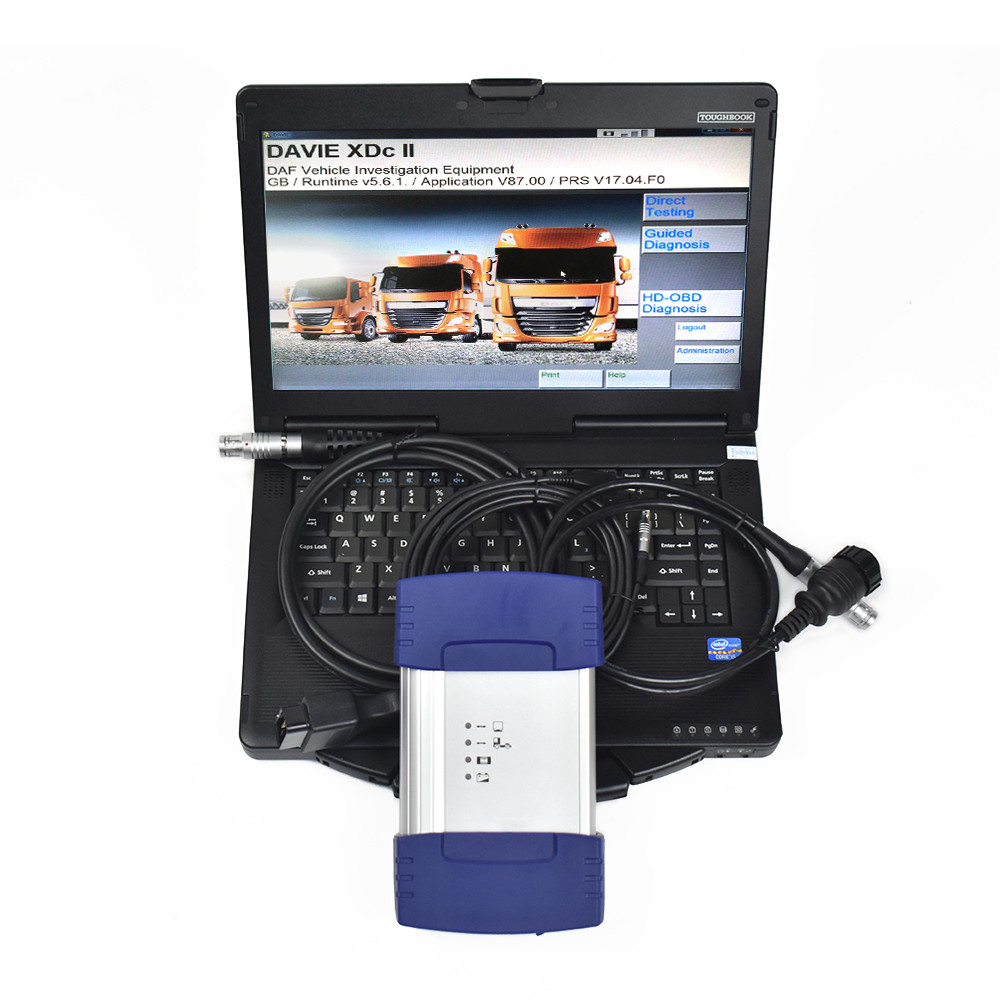

1. DAF Davie XDc II Runtime 5.6.1 (Windows 7 supported)

2. DAF Davie Application 95.00

3. DAF Davie Parts Rapido Subset 19.04.F0

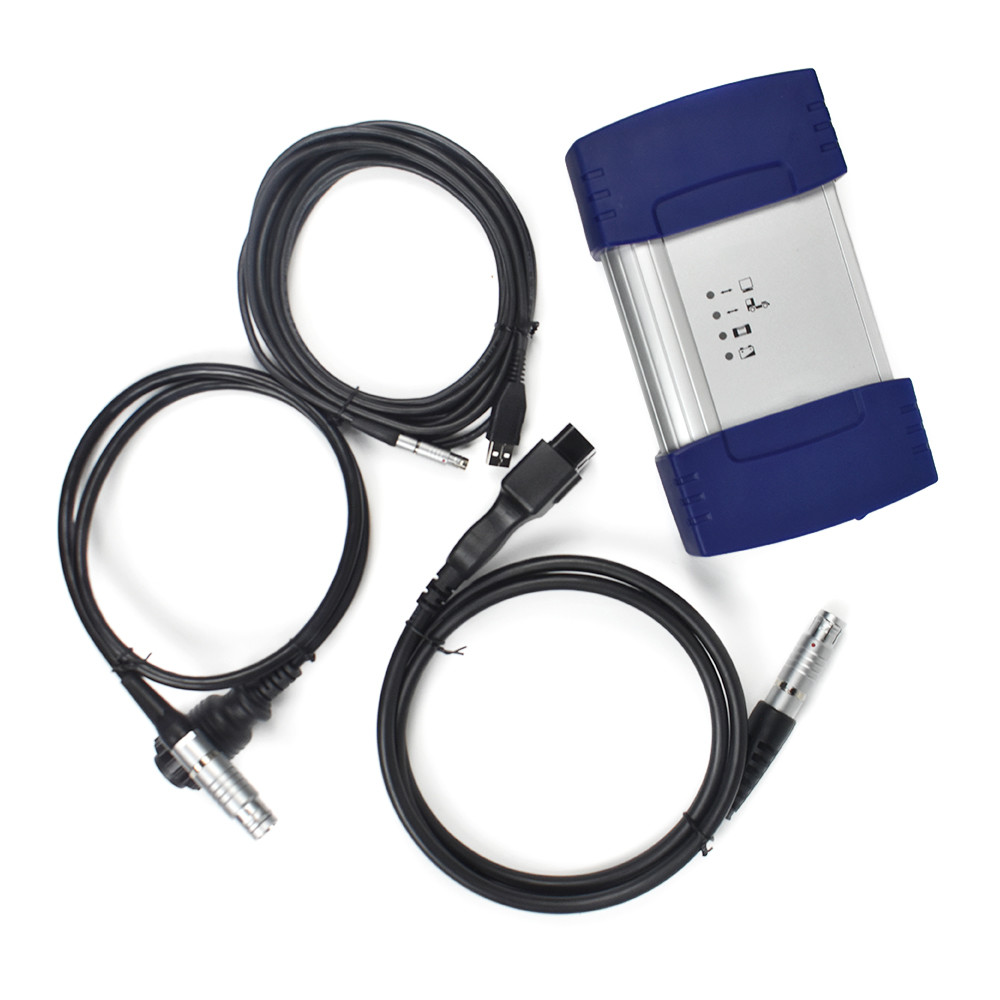

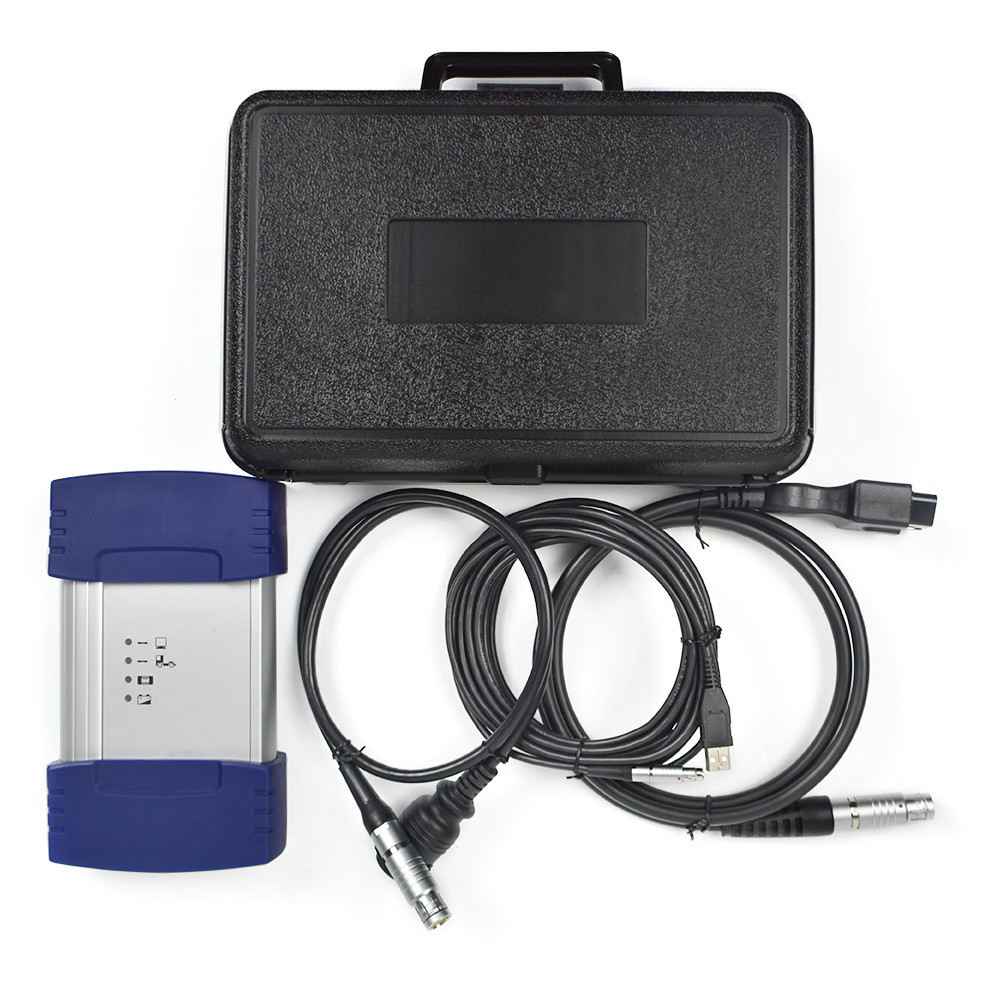

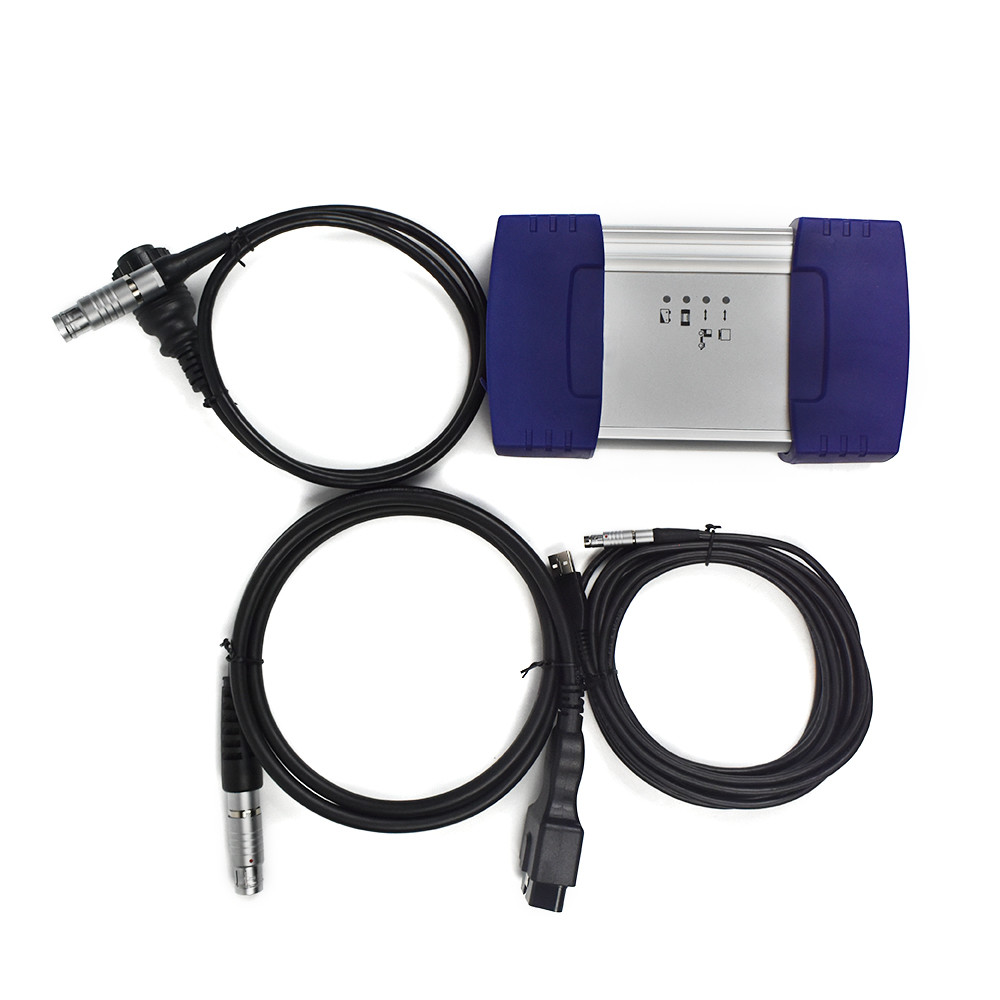

Packing List:

1pc * 560 MUX

1pc *16-PIN CABLE

1pc * OBD2 CABLE

1pc * USB CABLE
1pc * CF52 laptop
