V2024.12 Xentry software MB Star C4 Multiplexer SD Connect C4 DOIP WIFI Compact Diagnosis scanner Programming Tool

Full Set Mb C4 Sd Connect Xentry software Venice dts Monaco Car truck Multiplexer MB Star C4 DoIP VCI WiFi Diagnosis scanner

MB SD Connect C4 Function:

1. New MB SD Connect Compact 4 Star Diagnosis not only works with K line diagnose and CAN BUS,but also for UDS diagnose protocol.Old MB STAR C4 can not support these 2 functions,because old MB STAR C4 main board does not have UDS chip.

2. New MB SD Connect Compact 4 Star Diagnosis supports wifi diagnose.

3. Multiplexer supports Lan cable connection.

4. Connector adopts Military quick swap technology, so it can support 10,000 times pull plug, more stable.

5. All core accosseries adopt original new packing chip, 24hours test, product quality is guaranteeed.

Original MB Star C4 VICE PCB board Picture:

Top 6 Reasons to Get B-enz Diagnostic Tool Mb Star C4 :

1. The new SDconnect C4 (1:1 clone of the original) is able to work for DoIP(According to your choice).
2. It's the only C4 that supports ethernet communication (DoIP).
3. Have tested no issues on new Mercedes with DoIP.
4. You don't have to install batteries for firmware update.
5. No need worry about firmware damage in the update process
6. C4 is connected automatically to WLAN for diagnostic tests.
7. The wireless connection is stable.
8. remote help is available.
9. Good Quality, It's waterproof, shockproof and tamper proof.
10. With Free DTS Monaco & Vediamo
11. Support both 12V Cars and 24V Trucks.
12. Supported Multi-Languages:
English, Croatian, Czech, Danish, Dutch, Finish, French, German, Greek, Hungarian, Italian,Japanese, Korean, Polish, Portuguese, Romanian, Russian; Spanish, Swedish, Turkish, Chinese.

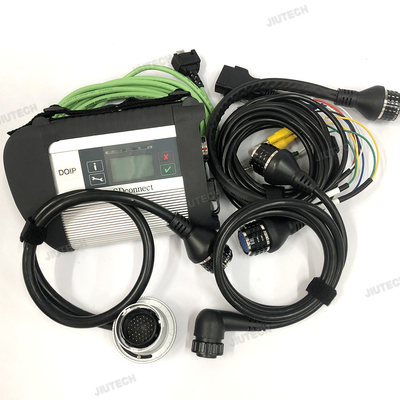

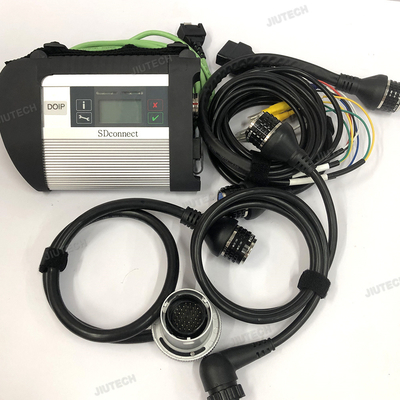

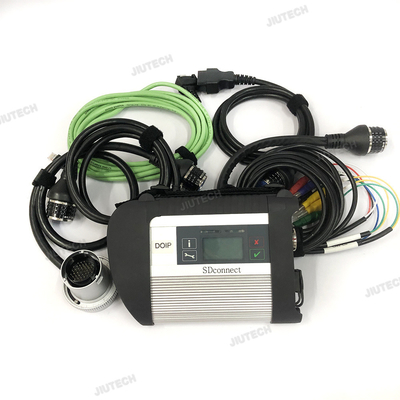

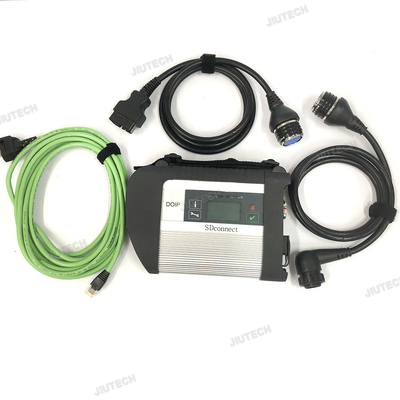

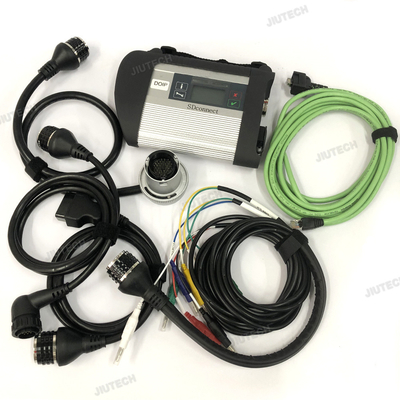

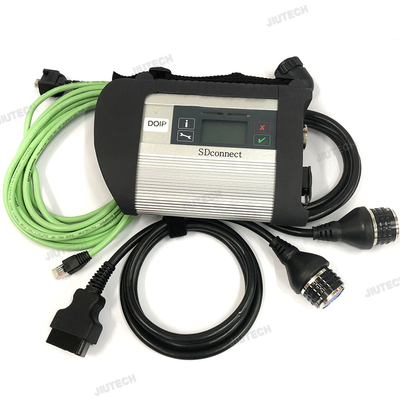

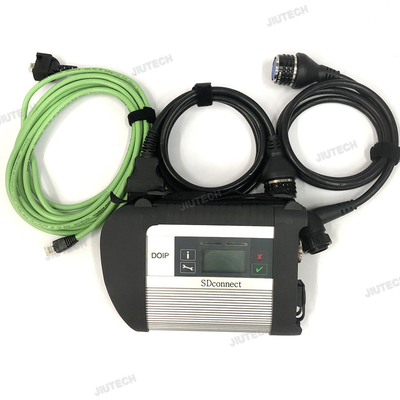

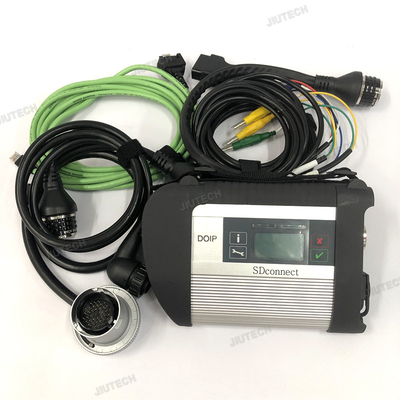

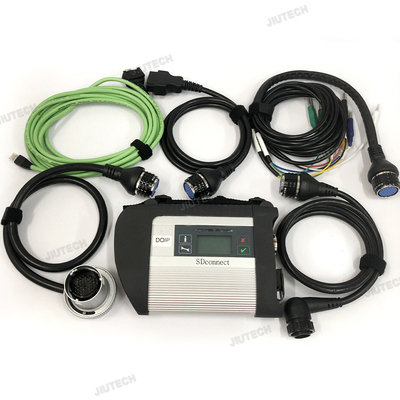

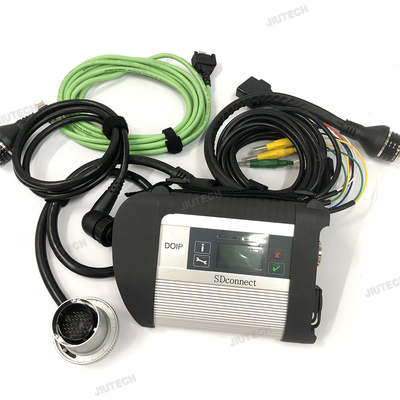

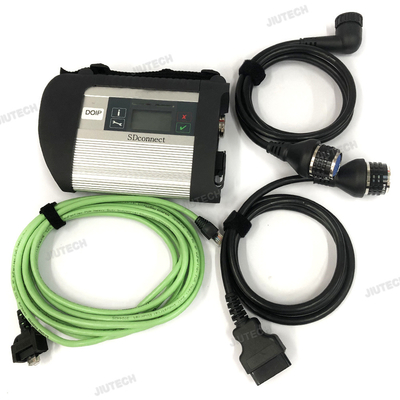

Package List: 5 cable



1pc x Multiplexer MB star c4 ( doip VERSION )
1pc x OBDII 16Pin Cable
1pc x 14PIN Cable
1pc x Lan Cable
1pc x 38PIN Cable
1pc x 8PIN Cable



We suggest that you purchase with Laptop as it is not only cost-effective but also convenient

Our engineer will install the software in Laptop for you before sending it to you. Once you receive the package, you can use it immediately



Product packaging

Description:

MB Star C4(Compact 4-StarDiagnosis Tester) MB STAR C4 is the professionaldiagnostic equipment for cars manufactured, it is the replacement of HHT. Compact 4 operates based on the Windows 7 system. B/enz compact 4 SD -Connect is a latest B/enz wireless multiplexer. It connects to the PC by wireless connection. The system offers total diagnostic coverage of all engine, chassis and body systems: Reading and re-setting of diagnostic trouble codes (DTC) Real-time reading of dynamic data Full component activation clearing and re-setting of adaptation values Coding of all engine, chassis, body and instrumentation modules Key configuration Procedure for fitting M/ercedes- B/enz accessories through the D2B ring and MOST bus Total ASSYST / ASSYST + control (Active Service System) to update on board service history DAS: Concise interface and straightforward operation using a wintel computer you can realize a quick and accurate code reading and testing on the cars system.

MB C4 Star Diagnosis Function: 1. 1989~up to now Car, Bus, Truck, Sprint, Smart; (support:W204,W212,W207) 2. All electric system Diagnostic; (Do not include flash code); 3. Reading out and erasing trouble code; reading the real-time data of sensor and actuator; testing the components of cars; coding and programming. MB C4 Star Diagnosis Character: 1. Realizes all the function of official factory compact 3. 2. C4 Multiplexer can connect to factory computer and for laptop. 3. Complete maintenance data. It could offer full disassembly and assembly circuit diagram, working principle and element place anytime needed. It is the best assistant for maintenance man.

Real Test & Online technical support:

MB Software feature: newest Version

1) D-: the automatically Diagnosis Assistance System
2) X-try: New software released by Bennz Company after 04/2009 by diagnosis new cars.
3) W-I-S.net: Workshop Information System
4) E-P-C.net: Electronic Parts Catalog
5) D-T-S
6) V-ediamo
7) S T F-inder: Part location finder
And so on......

Hardware configuration:
1. Intel Core Solo processor
2. Integrated WLAN function for wireless operation with SDconnect and connection
to the IT network
3. Ethernet interface for wired connection to the IT network
4. Possible connection of HMS 990 USB Measuring Technology
5. Power management controls power supply and consumption and adjusts to
specified power-saving mode
6. Transport case is included and provides protection for all components during transport and storage

Features:
1. The new generation for Benz diagnostic equipment for all current and new coming Benz vehicles
2. It work with win7/win10 system.
3. It is including diagnosing, programming, simulation studying, repair information, automotive maintenance, technical service bulletin and so on.
4. The new Xentry is better than C3 DAS and it can connect Mercedes-Benz Internet to update and to programe and to set codes.
5. The SD-Connect is better and faster than Star.
