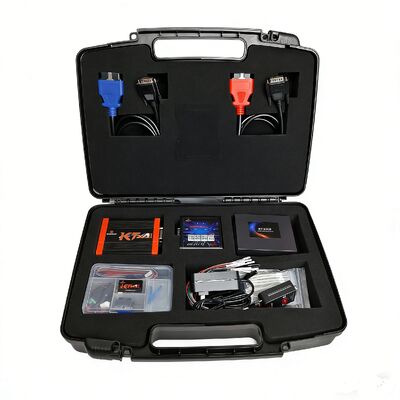

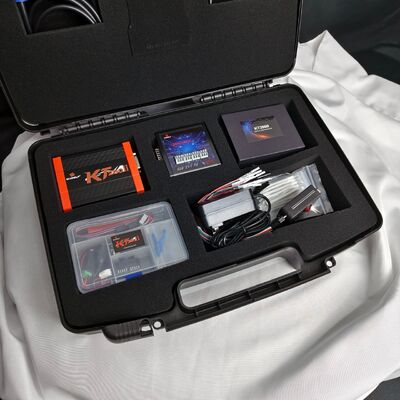

KT200II Universal ECU TCU Chip Tuning Programmer Full Version with Offline Dongle Supports OBD BOOT BDM JTAG Protocols and Free Online Updates

KT200II Support List:

KT200 ECU Support List

KT200 TCU Support List

Plus the Newly Upgraded ECU Protocols List

NEW FULL SYSTEMS FOR DELCO OPEL / CHEVROLET / GM ECUs

We have added to the list of DELCO bench protocols already present, also the complete management of the control units mounted on

OPEL / CHEVROLET / GM

Cars: DELCO E38 DELCO E67 DELCO E84 DELCO E92

The possible operations are: Micro + EEPROM reading Micro + EEPROM writing Recovery Checksums

NEW AUTOMATIC FUNCTION: TRICORE CLONE Added automation to clone the following control units with OTP zone adaptation and password:

√ FCA EDC17CP27

√ HYUNDAI / KIA MED17.9.8

√ IVECO EDC17 C69

√ JAGUAR MEDC17.9

√ JAGUAR EDC17CP11

√ LAND ROVER MEDC17.9

√ LAND ROVER EDC17CP11

√ SUZUKI MED17.9.63

√ TOYOTA MED17.9.52

NEW FULL SYSTEM DRIVERS FOR BO-SCH TCU ECUs:

6L45 6L50 6L80 6L90

Mounted on cars:

Cadillac, Chevrolet, Holden, GM, GMC, Hummer, Pontiac.

Micro + EEPROM reading

Micro + EEPROM writing

Recovery

NEW FULL SYSTEM DRIVER FOR MARELLI 8GMC ECU

We have added complete management of the engine control unit mounted on Fiat / Abarth:

MARELLI 8GMC

The possible operations are:

Micro + EEPROM reading

Micro + EEPROM writing

Recovery

Checksums

NEW BOOT MODE FOR SIEMENS SIM2K-305 ECUs

Password + boot mode tool for SIEMENS SIM2K-305 control units mounted on Hyundai and Kia cars.

The possible operations are:

Micro + EEPROM reading

Micro + EEPROM writing

Recovery

Checksums

NEW BENCH MODE FOR MG1CA007 ECU

Complete management of the BO-SCH MG1CA007 control unit mounted on Indian Motorcyle.

The possible operations are:

Micro SPC58 + EEPROM reading

Writing Micro SPC58 + EEPROM

Recovery

Checksums

NEW OBD DRIVER FOR DELPHI DCM7.24 ECU!

New OBD driver for DELPHI DCM7.24 mounted on

new JCB vehicles.

You can read and write to the ECU via the 9-pin diagnostic socket.

Virtual reading

Writing

Recovery

Checksums

NEW OBD DRIVER FOR PHOENIX L40 ECU!

New OBD driver for PHOENIX L40 ECU mounted on

new JOHN DEERE 8R Series vehicles.

Reading and writing is carried out via the 9-pin diagnostic socket

or via the control unit pinout.

Automatic saving and writing of injectors.

Reading

Writing

Recovery

Checksums

Injector coding

NEW DRIVER BENCH MODE FOR TRW EMS2.4 ECUs

We have added a new BENCH MODE driver for the complete management of the TRW EMS2.4 control unit

mounted on VO-LVO TRUCK and RENAULT TRUCK.

The possible operations are:

Micro + EEPROM reading

Micro + EEPROM writing

Recovery

Checksums

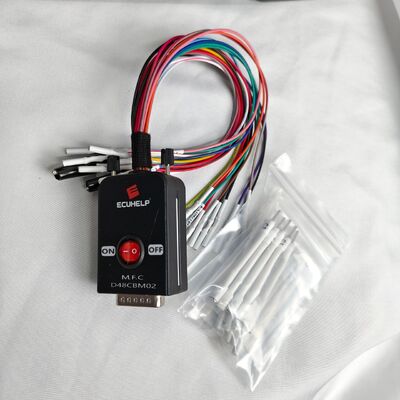

It is possible to connect to the control unit using the Multifunction Cable supplied, or with the DFB-D48CBB04 – TRW EMS2.2/3/4

cable.

NEW OBD DRIVER FOR BO-SCH EDC17 C11 NISSAN – OPEL – RENAULT

Added new OBD driver for reading

and writing the BO-SCH EDC17C11 ECU mounted on NISSAN, OPEL and RENAULT vans.

The possible operations are:

Reading

Writing

Recovery

Checksums

Communication alternatives in BENCH MODE via pinout and BOOT MODE remain possible.

NEW OBD DRIVER + BENCH MODE FOR BO-SCH MD1CS069 JOHN DEERE

New OBD driver added for reading and writing the BO-SCH MD1CS069 ECU

mounted on John Deere tractors

The possible operations are:

Real Reading + Virtual Reading

Writing

Recovery

Checksums

Also added Bench Mode for complete management via Pinout.

What is KT200II?

Introduction to KT200II: KT200II is an ECU programmer designed for reading and programming engine control units (ECUs). Allows

communication in multiple modes: Bench (or Service mode), OBD, Boot, BDM, JTAG, Full system via pinout. This tool offers a

comprehensive solution for mechanics, with additional TCU package options for automatic transmission.

Functionality of KT200II:

Enables serial communication with Engine and Automatic Transmission control units via the OBD diagnostic socket.

Capabilities in ECU Management:

Read and write ECU data, read it in Bin encrypted format.

Modify ECU data arbitrarily for various purposes, including ECU cloning and ECU service.

The master version is personalized, allowing individual use without data unlocking for the slave.

Master Version of KT200II: A personal version of the device that can be used freely after purchase.

ECU Service Explained:

Chip tuning: to improve engine performance by modifying the data read out by the equipment The data is divided into: Stage 1 .

Stage 2 and Stage 3

ECU maintenance: the data is to repair software errors in the ECU and some identity data of the ECU by modifying the data read by

the device. We provide the following items:D T C , E G R & D P F , I M M O , releasing speed limit, mileage , Ho start or Cold

Start Vmax , and so on.

KT200II Key Features and Enhancements:

KT200II upgrades new protocols and commits to regularly updating more.

Resolves automatic checksum issues found in the KT200, enhancing read/write efficiency.

A significant increase in virtual files available on the server.

Enhance ECU Protection includes immediate alerts for operational errors, ensuring safer usage.

Faster and more efficient server connectivity.

Reliable reading and writing via OBD.

Now supports DELPHI DCM7.24 ECU

Compatible with htprog Clone Adapter too.

Introduces the Tricore Clone feature.
