2024 OBDSTAR DC706 ECU Tool Full Version Plus P003+ Adapter and ECU Bench Cables for Reading ECU Data CS PINCODE E

OBDSTAR DC706 ECU Tool Full Version Plus P003+ Adapter and ECU Bench Cables

Description:

OBDSTAR DC706 ECU tool is designed for vehicle ECM, TCM and body/other system for ECU flasher. It can read ECU info, R/W Eeprom/Dflash/Pflash/MAP, reset ECU(Virgin), calibrate mileage, read IMMO pincode, ECU recovery... It's all by OBD or bench mode and makes ECU cloning easy.
OBDSTAR P003+ KIT supports reading and writing ECU eeprom & flash data and caculating IMMO data of ME17XX, MED17XX, EDC17XX & CONTINENTAL PCR2.1 for VW/Skoda/Audi/Seat, Bentley, Peugeot/Citroen/DS, Lamborghini, Porsche, Mahindra etc. Supports the following models require a higher frequency clock during the decryption process(ME9.0, MED9.1,MED9.6.1, ME9.6.1, MED9.5.10,EDC16C39, EDC16CP35, EDC16C8)
Package Contains: OBDSTAR DC706 ECU Tool Full Version and P003+ KIT

OBDSTAR DC706 Full Version Highlights:

1. R/W eeprom/dflash/pflash/Map, reset ECU(Virgin), calibrate mileage, read IMMO pincode, ECU recovery...
2. Support 710+ ECM types(Partial functions require P003+ adapter.)
3. Support 120+ other ECU types(AIRBAG, BCM, BSI, CEM, DDM/PDM, DIM, EPS, KeyLess(RFHUB/RFHM), KVM, RFA, SAM...)
4. Support VW DQXXX (TCM) calibrate mileage
5. Support motorcycle Delphi MT05, MT05.2, MT05.3 ECU clone
6. Support motorcycle BRP ME17.8.5 ECU clone (works with P003+ adapter)
7. Support Piaggio series engine ECU clone(such as MIU G4 (M4G1))
8. Support intelligent search by brand, model, part No., ECU manufacturer, MCU controller type
9. Support automatic identification
10. Strong help data files
11. All by OBD or Bench mode
13. Please check OBDSTAR DC706 Full Version Support List
14. One Year Free Update Onine
15. DC706 ECU Tool Full Version supports Indian TAT A and Mahindra (Check in V30.41 ECM software)


16. Support HP, Fiat IAW 9GF/9GV/7GF/10GF, Simos etc ECU (Partial functions require P003+ adapter.)

Notice:
1. Our Distributor Code: 0086A002
2. Not support DQ250 before Year 2008 with the old protocol

OBDSTAR DC706 Functions:

1. ECU Clone/ All by OBD or Bench
2. ECM clone for cars (, Continental, Delphi, Denso, Magneti Marelli, Siemens...)
3. ECM clone for motorcycles (, Delphi, EFI...)
4. TCM clone (Ac Delco, , Continental, Getrag, GM, Kefico, Siemens, Temic, ZF...)
5. Body/Other clone (FCA, FIAT, FORD, GM/OPEL, LAND ROVER/JAGUAR, PSA, SMART, ...)



OBDSTAR DC706 Supported ECU Manufacturers:

ALPS
Autoliv

Continental
Delphi
Denso
Johnson Controls
Lear
Magneti Marelli
Siemens
Temic
Valeo

OBDSTAR DC706 Supported Brands:

Car
ASTON MARTIN
BMW
FAW
FCA(ALFA ROMEO, CHRYSLER, DODGE, FIAT...)
FORD/LINCOLN
GM/OPEL
HYUNDAI/KIA
LAND ROVER/JAGUAR
LUXGEN
MASERATI
MAZDA
MITSUBISHI
NISSAN
OPEL
PSA
SMART
SUBARU
SUZUKI

VW/AUDI/SEAT/SKODA

Motorcycle:

APRILIA
BRP
CFMOTO
DERBI
GILERA
GUZZI
PEUGEOT
PIAGGIO
QJBENELLI
VESPA



OBDSTAR P003+ KIT Functions:

1. Continental PCR 2.1 reading CS, PinCode, MAC valueP003 KIT
2. MED17.4.4 reading eeprom , PinCodeP003 KIT
3. EDC17C60 reading eeprom , PinCodeP003 KIT
4. MD1CS018 reading eeprom, PinCodeP003 KIT
5. MED17XX/EDC17XX reading eeprom, flash, CS, PinCode, MAC value
6. ME17XX reading & writing eeprom, flash
7. T87A, 6HP reading & writing TCM eeprom, flash
8. Supports the following models require a higher frequency clock during the decryption process(ME9.0, MED9.1,MED9.6.1, ME9.6.1, MED9.5.10,EDC16C39, EDC16CP35, EDC16C8)

OBDSTAR P003 KIT is required when you read and write 6HP, 9GF, 10GF, Simos etc ECUs on bench.

ECUs that requires P003 adapter:
ALPINA MEVD17.2.6 TC1797 (BENCH+P003)
AUDI CONTINENTAL SIMOS12.2 TC1797 (BENCH+P003)
AUDI CONTINENTAL SIMOS8.5X TC1796 (BENCH+P003)
AUDI CONTINENTAL SIMOS8.6X TC1796 (BENCH+P003)
BMW MEVD17.2.6 TC1797 (BENCH+P003)
FORD MED17.0 TC1767 (BENCH+P003)
FORD MEDG17.0 TC1797 (BENCH+P003)
GEELY MED17.8.10 HW2 TC1728 (BENCH+P003)
PORSCHE CONTINENTAL SIMOS8.5X TC1796 (BENCH+P003)
SEAT CONTINENTAL SIMOS12.2 TC1797 (BENCH+P003)
GREATWALL MED17.8.10 HW2 TC1728 (BENCH+P003)
VOLKSWAGEN(VW) CONTINENTAL SIMOS12.2 TC1797 (BENCH+P003)
VOLKSWAGEN(VW) CONTINENTAL SIMOS8.5X TC1796 (BENCH+P003)
HYUNDAI ME17.9.11.1 TC1766 (BENCH+P003)
VW/Audi/Skoda/Seat MED17.5 TC1766 (BENCH+P003)
KIA ME17.9.11.1 TC1766 (BENCH+P003)
Audi MED17.1.6 TC1797 (Bench +P003)
Audi MED17.5.2 TC1767 (Bench +P003)
Bentley MED17.1.6 TC1797 (Bench +P003)
Porsche MED17.1.6 TC1797 (Bench +P003)
Seat MED17.1.6 TC1797 (Bench +P003)
Seat MED17.5.2 TC1767 (Bench +P003)
Skoda MED17.5.2 TC1767 (Bench +P003)
Skoda MED17.1.6 TC1797 (Bench +P003)
VW MED17.5.2 TC1767 (Bench +P003)
VW MED17.1.6 TC1797 (Bench +P003)
Audi/VW/Seat MED17.5.1 TC1796 (Bench +P003)
Fiat Magneti Merelli IAW 7GF Kline MPC5534+95640 (Bench +P003)
Fiat/Lanica Magneti Merelli IAW 9GF CAN MPC5642+95640 (Bench +P003)
Ford Magneti Merelli IAW 9GF CAN MPC5642+95640 (Bench +P003)
Hyundai/Kia ME17.9.11 TC7966 (Bench +P003)
Jeep Magneti Merelli IAW 9GF CAN MPC5642+95640 (Bench +P003)
Jeep/ Fiat/VW Magneti Merelli IAW 10GF CAN MPC5642+95640 (Bench +P003)
Fiat Magneti Merelli IAW 7GF CAN MPC5534+95640 (Bench +P003)
VW Magneti Merelli IAW 9GF CAN MPC5634+95320(Bench +P003)

OBDSTAR DC706 ECU Tool Latest Update Information:

MOTORCYCLE ECU FLASHER UPGRADE [V30.04]
ROYAL ENFIELD ME17.9.71 TC1724N (BENCH+P003)
CFMOTO ME17U6 TC1728 (BENCH+P003)
KTM ME17.9.21.1 TC1724N (BENCH+P003)

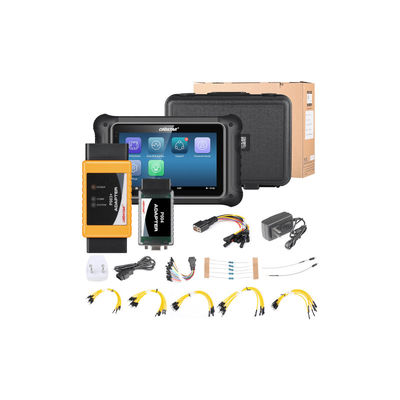

Package Includes:

1pc x DC706 Main Unit
1pc x main cable
1pc x P004 adapter
1pc x P004 ECU clone jumper
1pc x 12V2A charger

1pc x OBDSTAR P003+ adapter
1pc x ECU BENCH jumper
