OBDSTAR D800 A Configuration Marine Diagnostic Tool for Jetski

  • OBDSTAR D800 A Configuration Marine Diagnostic Tool for Jetski
  • OBDSTAR D800 A Configuration Marine Diagnostic Tool for Jetski
  • OBDSTAR D800 A Configuration Marine Diagnostic Tool for Jetski
  • OBDSTAR D800 A Configuration Marine Diagnostic Tool for Jetski
  • OBDSTAR D800 A Configuration Marine Diagnostic Tool for Jetski
  • OBDSTAR D800 A Configuration Marine Diagnostic Tool for Jetski
  • OBDSTAR D800 A Configuration Marine Diagnostic Tool for Jetski
  • OBDSTAR D800 A Configuration Marine Diagnostic Tool for Jetski
Place of Origin China
Brand Name OBDSTAR D800
Model Number for Jetski
Minimum Order Quantity one
Price 1980$
Packaging Details 51cm*39.5cm*17cm/6.9kg
Delivery Time 1 working day
Payment Terms T/T, Money Gram
Supply Ability in stock

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model Name OBDSTAR D800 Origin Mainland China
Quality Superior Item Type Engine Analyzer
Type Car Diagnostic Cables And Connectors Package Standard Package Paper Box
Shipping Terms DHL,EMS,TNT,UPS,FEDEX Color As Photo Show
Warranty One Year
Highlight

A Configuration OBDSTAR D800

,

Marine OBDSTAR D800

,

Jetski OBDSTAR D800
Leave a Message
Product Description

Product Description

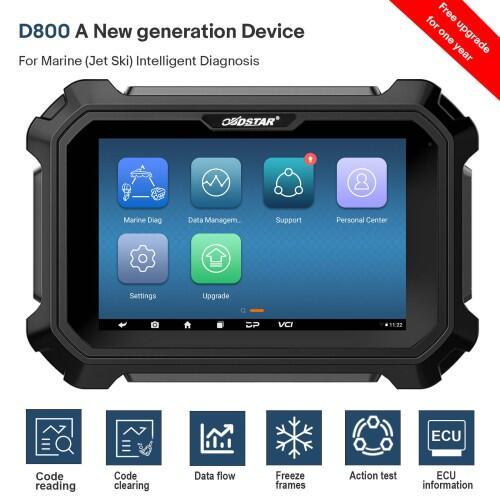

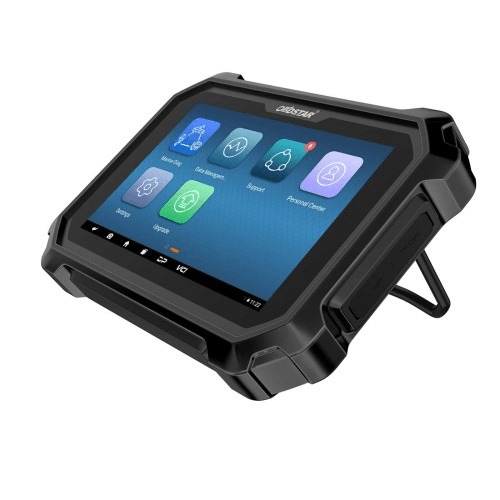

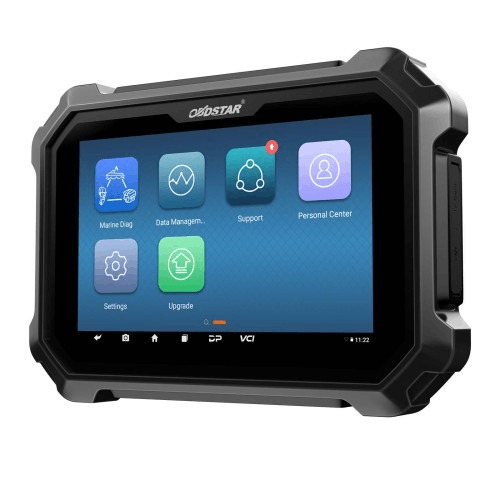

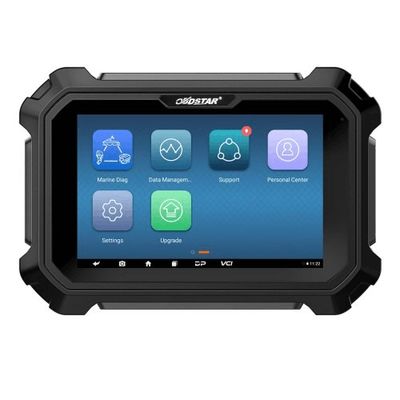

OBDSTAR D800 Configuration A is OBDSTAR's new generation device for marine (jet ski) intelligent diagnosis.
2023 Newest OBDSTAR D800 Configuration A for Marine (Jet Ski) Intelligent Diagnostic Scanner

Notice:
OBDSTAR D800 A is out of stock, Please choose OBDSTAR D700 A for Jetski Intelligent Marine Scanner to replace it.

D800 four configurations

D800 A: Jetski
D800 A+B: Jetski, Outboard
D800 C+D: Inboard, Generator
D800 A+B+C+D: Jetski, Outboard, Inboard, Generator


OBDSTAR D800 A Configuration Marine Diagnostic Tool for Jetski 0
OBDSTAR D800 A Configuration Marine Diagnostic Tool for Jetski 1

Functions

1. New android 5.1.1 operation system;
2. Simple and intuitive menu guidance allows you to quickly master the equipment operation;
3. Provide complete diagnostic functions including ECU information, code reading, code clearing, data flow, freeze frames, action test, setting, coding etc;
4. Record and play back real-time flow, quickly and accurately locate sensor and component faults;
5. Wi-Fi connection to the internet, one-click software upgrade;
6. One-click remote function, OBDSTAR technical staff remote assistance.

Advanced Function

1. The OBDSTAR mobile APP integrates functions such as diag socket location, flash code query, technical bulletin, manual service function(service lamp reset), basic parameters, etc., working with D800 to make marine diagnosis more accurately and efficiently (some functions are only available for D800 users to check for free);
2. The exclusive interactive wiring diagram and electrical appliance description query function make your diagnosis worry-free;
3. Various data flow display modes such as text, waveform diagram and instrument diagram allow you to easily analyse faults;
4. Auto Scan, Active Trim Configuraion, Active Trim GPS Configuraion, Auxiliary Joystick Congfiguration, BCM Simulator, Compass Congfiguration, Device Initialization, Drive Alignment, Helm Setup, Instance Setting, Maintenance Setting, Merc TDS Reset, Remote Control Reset, Set Engine Location, Set Tach Link, Set Tilt Limit, SMUX Congfiguration, Steeing Wheel Centering, Syetem Calibration, Torque Ajustment, Trackpad Configuration, Vessel Personality, and other functions.

Supported Brands

EVINRUDE, HONDA, JOHNSON, KAWASAKI, MARINER, MERCURY/MERCURY RACING, PARSUN, SEA-DOO(BRP), SELVA MARINE, SEVEN MARINE, SUZUKI, TOHATSU, YAMAHA...

Optional Brands

CATERPILLAR, CFMOTO, CRUSADER ENGINES, CUMMINS MARINE, CUMMINS MERCRUISER DIESEL, DAEDONG, DAF MARINE, FNM MARINE, FORD MARINE, FPT (Fiat Powertrain Technologies), HYUNDAI SEASALL, ILMOR, INDMAR, JOHN DEERE MARINE, KODIAK MARINE, KOHLER POWER SYSTEMS, LOMBARDINI MARINE, MAN MARINE, MARINE POWER, MTU, PANTHER AIRBOATS, PCM Marine Engines, PERKINS, SCANIA MARINE, SISU, STEYR MOTORS, TOYOTA MARINE, VM MOTORI, VOLKSWAGEN MARINE, VOLVO PENTA, YANMAR...

More functions are under development...

Specification:
Operation system Android 5.1.1
CPU Exynos4418 qual core ARM cortex A9
Battery 3700mA, rechargeable polymer lithium battery
Extension memory card 32G micro SD (TF) card supported
Storage capacity 32GB
LCD 8.0 inch
LCD resolution 1280*800
Touch screen Capacitive touch screen
Wifi Supported
Camera 5 mega rear view camera
Working temperature -10℃～55℃ (14℉～131℉)
Storage temperature -20℃～70℃ (-4℉～158℉)
Weight 1kg (main unit)
Dimension 254mm*174mm*35mm

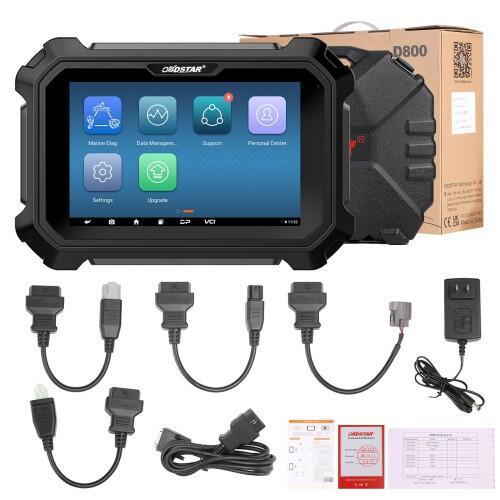

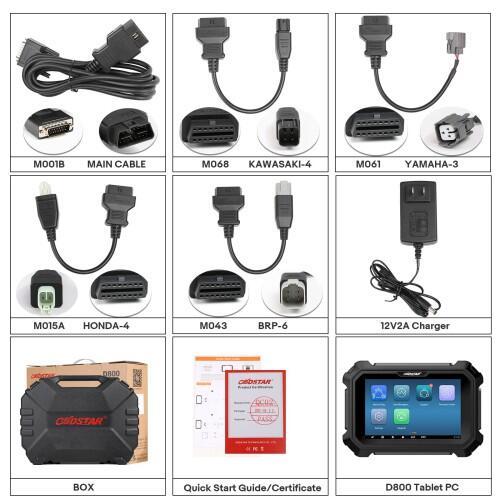

Package List:

1 set x OBDSTAR D800 Configuration A
1pc x box
1pc x M001B main cable
1pc x M015A Honda-4
1pc x M043 BRP-6
1pc x M061 Yamaha-3
1pc x M068 Kawasaki-4
1pc x 12V2A charger
1pc x quick start guide/ certificate
