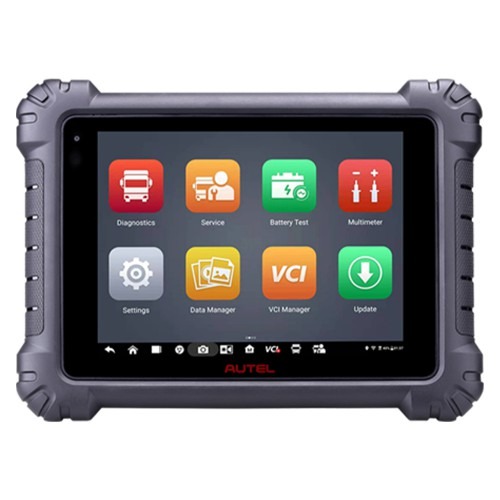

Autel Maxisys MS909CV Heavy Duty Bi-Directional Diagnostic Scanner With Bluetooth J2534 VCI
| Place of Origin | CHINA |
|---|---|
| Brand Name | Autel Maxisys MS909CV |
| Model Number | Autel Maxisys MS909CV |
| Minimum Order Quantity | 1 |
| Price | 3766$ |
| Packaging Details | 70*18.4*49.5cm / 16.0KG |
| Delivery Time | 1 work day |
| Payment Terms | T/T, Western Union, MoneyGram |
| Supply Ability | 1000 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model Name | Autel Maxisys MS909CV | Origin | Mainland China |
|---|---|---|---|
| Quality | Superior | Feature 1 | 9.7"Touchscreen Tablet Running Android 7.0 Operating System |
| Feature 2 | Octa-Core Processor / 4GB RAM & 128GB On-board Memory | Feature 3 | Cameras: Front 5.0MP / Rear 16MP, Autofocus With Flashlight |
| Feature 4 | Connectivity: WiFix2, BT, GPS, USB 2.0 (TWO USB HOST Type A, ONE USB Mini Device), HDMI 2.0, SD Card (supports Up To 256GB) | Feature 5 | 15000mAH 3.8V Lithium-polymer Battery |
| Feature 6 | Charging Via 12V AC/DC Power Supply | Feature 7 | Print Via WiFi To PC To Autel's "Maxi PC Suite" Software |
| Feature 8 | Save Reports To PDF And Email | ||
| Highlight | Autel MS909CV Bi-Directional Diagnostic Scanner,Heavy Duty Bi-Directional Scanner,Maxisys MS909CV Scanner |
||
Product Description
Product Description
The MaxiSys MS909CV provides the full functionality and online repair information you need when diagnosing vehicles,identifying faults and researching repair issues. It features a powerful Octa-Core processor and 9.7-inch TFT-LCD capacitive touchscreen for swift diagnosis and optimum viewing. As an intelligent diagnostics and information system, MaxiSys MS909CV not only displays the relevant repair fixes and cases gathered from experienced industry experts, but provides step-by-step guidance to ensure the repair is done correctly and efficiently.
Autel Maxisys MS909CV Heavy Duty Bi-Directional Diagnostic Scanner With Bluetooth J2534 VCI

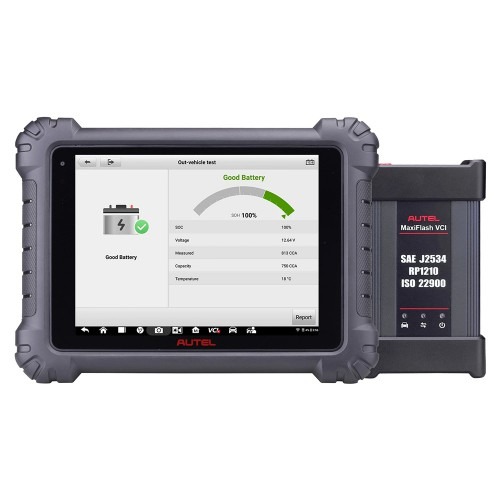

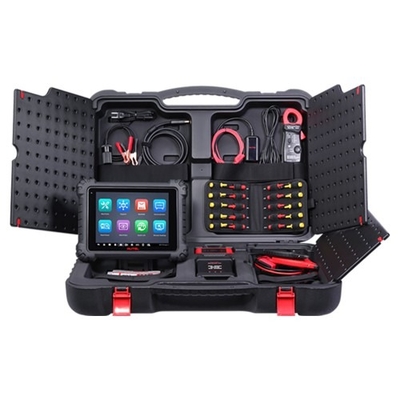

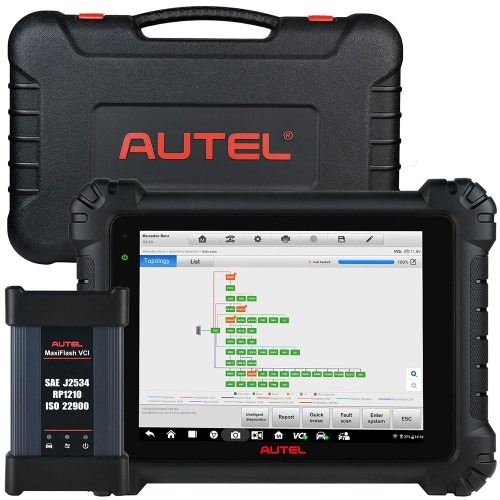

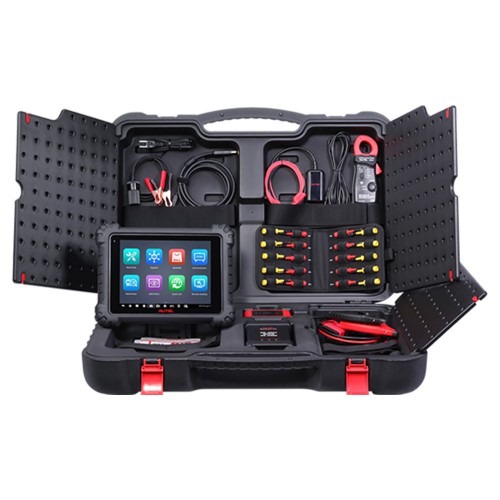

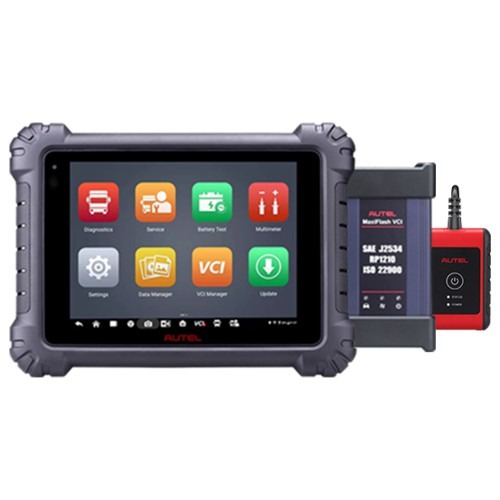

Autel MaxiSYS MS909CV is an advanced commercial vehicle diagnostic tool that is compatible with more than 80 models of light, medium and heavy duty vehicles. The 9.7-inch wireless Android-based truck scanner performs extensive vehicle diagnostics including the ability to read/erase codes, view, and graphs live data, and perform active tests. The MS909CV scanner includes a Bluetooth-enabled vehicle communication interface (VCI)/J2534 pass-thru programmer, the MaxiBAS B200 battery, starting and charging system test device and alligator clamps, and a multimeter and amp clamp. It also includes ADAS Calibration Software for Class 3-5 vehicles and Class 6 to 8 Vehicles with Dynamically Calibrated Systems.
| Autel Maxisys MS909CV Highlights: |
| 1. MaxiSYS MS909CV performs enhanced all system diagnostics on more than 80 models of light, medium, and heavy duty commercial vehicles 2. Upgraded Octa-Core processor and 128GB storage and 9.7-inch Wireless Android-Based Touchscreen and the whole-new MaxiFlash VCI (J2534 Pass thru programming device ) to deliver smooth operation 3. Intelligent Diagnostics with Topology Module Mapping and Enhanced AutoSCAN / VINScan and DTC Analysis / Repair Guided Assist 4. Support heavy Duty Battery Test & Health Report with included MaxiBAS B200 tester with alligator clamps 5. Includes Multimeter & Amp Clamp 6. ADAS Calibration Software for Class 3-5 vehicles and Class 6 to 8 Vehicles with Dynamically Calibrated Systems 7. One Year Limited Warranty and a year of Free Software Updates |
Autel Maxisys MS909CV Hardware Features:
• 9.7"Touchscreen tablet running Android 7.0 Operating System
• Octa-Core Processor / 4GB RAM & 128GB On-board Memory
• Cameras: Front 5.0MP / Rear 16MP, autofocus with flashlight
• Connectivity: WiFix2, BT, GPS, USB 2.0 (TWO USB HOST Type A, ONE USB mini device), HDMI 2.0, SD Card (supports up to 256GB)
• 15000mAH 3.8V lithium-polymer battery
• Charging via 12V AC/DC power supply
• Print via WiFi to PC to Autel's "Maxi PC Suite" software
• Save reports to PDF and email
Autel Maxisys MS909CV Functions:
INTELLIGENT DIAGNOSTICS
• Enhanced AutoSCAN / VINScan for easy vehicle identification
• DTC Analysis / Repair Guided Assist
• Pre/Post scan reports
• Module Topology on Select Vehicles (coming soon)
ADAS CALIBRATION
• Class 6-8 Dynamic Calibration
• Class 3-5 Complete ADAS Coverage
• Class 6-8 Static Calibration (coming soon)
BATTERY ANALYSIS
• Heavy Duty Battery Test & Health Report
• Includes the BT506 and the BTAK
Autel Maxisys MS909CV Coverage:
The MS909CV includes coverage for more than 80 models of light, medium and heavy-duty vehicles. The MaxiFlash VCI is compatible with the latest J2534 protocols (DOIP) and is compliant with RP1210 ans ISO 22900
Autel Maxisys MS909CV Package List:
